Item#: N82E16813128634

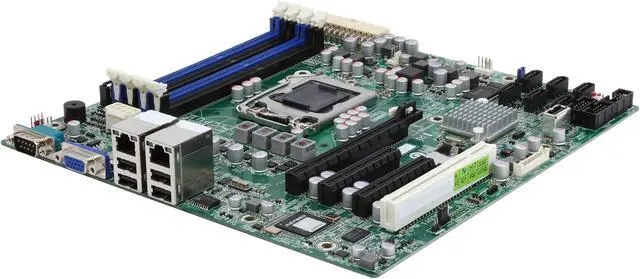

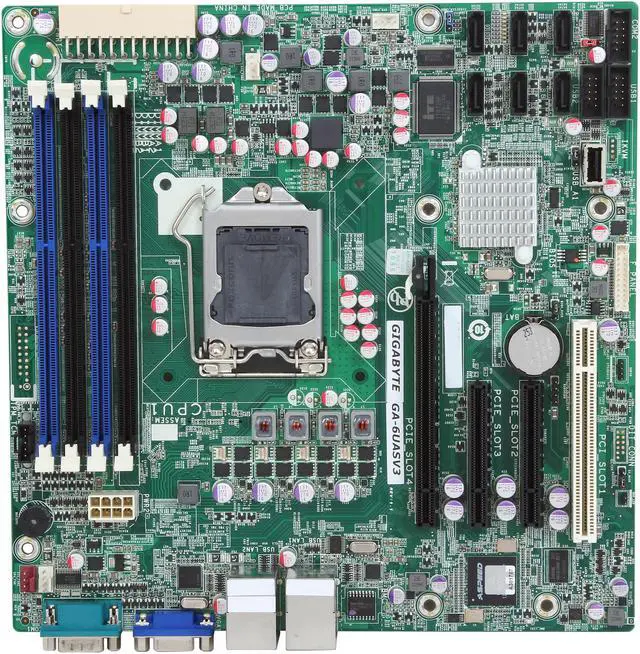

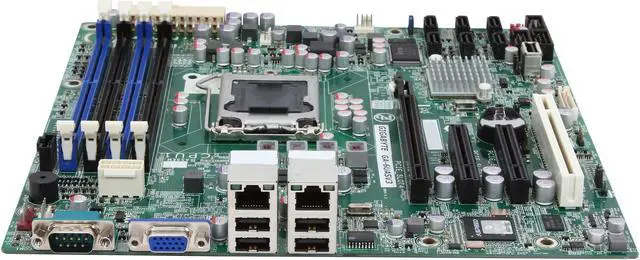

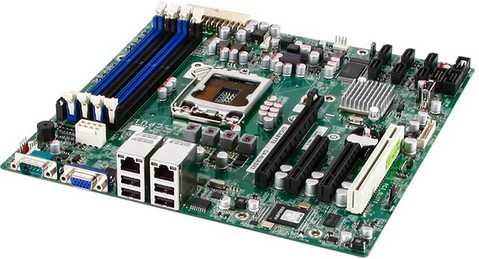

GIGABYTE 6UASV3 Micro ATX Server Motherboard LGA 1155 Intel C202 (Cougar Point) PCH DDR3 1600/1333/1066

  • Intel C202 (Cougar Point) PCH
  • 4 x UDIMM ECC DIMM slots
  • 2 x GbE LAN ports (Intel 82574L & Intel 82579LM)
  • 6 x SATA II 3Gb/s ports
  • Aspeed AST2150

  • Pin It
  • Email this page
ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Intel® C202 Chipset


  • Intel® Xeon® processor E3-1200 & E3-1200 V2 product families
  • 4 x UDIMM ECC DIMM slots
  • 2 x GbE LAN ports (Intel® 82574L & Intel® 82579LM)
  • 6 x SATA II 3Gbps ports
  • Aspeed AST2150


The Ideal Base for SMB Server Infrastructure

The GA-6UASV3 is a single socket motherboard addressed to small and medium businesses wishing to benefit from all the main features expected from an entry-level server or workstation of today's technological standards, but at an efficient cost and without compromising high performances.

It answers the main needs of small and medium businesses applications in terms of memory intensity, expansion possibilities and server management capabilities, and is therefore the perfect candidate to gear your server base for the future.


Intel® Xeon® Processor E3-1200 V2 Product Family

With an average improvement of 21 percent over the previous generation, the computing performance of the latest 22nm Xeon processors reaches another all-time high for a single socket server platform.

New workloads enhancing technologies are included with the Intel Turbo Boost 2.0 and the Intel Hyper-Threading, and I/O improvements are not forgotten with the PCIe Gen 3.0, Intel Smart Cache Technology and the support of 1600Mhz DDR3 memory.

Security is also increased with Intel AES-NI and Intel OS Guard technologies, data reliability is improved through the support of ECC memory as well as Intel Rapid Storage Technology.


Support of PCIe Generation 3.0

With the support of the latest PCI Express Gen.3.0 technology directly on the CPU, the GS-R11U4S is fully configured to provide users with dramatically reduced latency and improved data bandwidth to get the most out of its expansion accessories.

Server Management

With the ASPEED 2150 board management controller (BMC), this board offers comprehensive remote control options:

  • iKVM
  • IPMI 2.0
  • Native PCIe support
  • 2D Video Graphic Adapter with PCIe bus interface


VMware Ready

The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.

The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.


Red Hat Certified Hardware

GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.

Learn more about the GIGABYTE 6UASV3

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Customer Reviews of the GIGABYTE 6UASV3

There are no reviews yet... do you own this product? Write a Review
