Question 1

Does this motherboard have/come with wifi capability or is that something that has to be purchased separately?

Accepted Answer

You have to purchase a USB WiFi adapter to access a WiFi network.  Usually at home or work a router provides WiFi management.  Consider if a cable and antenna are need to get line of sight between the wireless access points.  The 2 band AC WiFi is nice for streaming movies.

Question 2

ALL THE REVIEWS ON HERE SAY THIS MOTHERBOARD HAS CPU FAN ISSUES AND POWER ISSUES, SHOULD I BUY THIS?

Accepted Answer

I had this board running for only a few weeks, but I have not experienced any problems with power or fans. I did spend some time tweaking the fan settings in BIOS. I have experienced some problems with memory, but that seems to have been solved using 2 sticks instead of four (sad, but I will just upgrade to bigger sticks when I can, so not a deal breaker). Overall, I am, so far, very satisfied with this mobo, it's running solid now, and gigabyte has wonderful tech support if you encounter any problems. It has a lot of nice features for the price, so as long as you don't need SLI, it's a good deal.

Question 3

My RAM has some tall heatsinks on them... Will the Cooler Master EVO CPU cooler fit on this motherboard without interfering with my RAM? I only have 2 DIMMs so if I have to put them in the black channel that is fine.

Accepted Answer

Heya Stephen,

That's a good question.  I haven't measured the clearance between the bottom of the EVO cooler and MoBo and/or RAM.  My RAM is the typical low profile RAM.

But I will say, my fan is facing the opposite direction from my RAM (facing my I.O plate) and facing a fan vent (no fan installed since the EVO fan is facing the back of my tower).  I don't know if that is a possibility for your setup, but that would rule out your taller RAM.

I'll see if I can get a measurement on the EVO clearance from the bottom of the MoBo.

Question 4

on website it says amd crossfire

Is Nvidia sli supported?

second

1866 Mhz ram will work on this board without OC?

Accepted Answer

No, it doesn't support SLI.  From what I understand, SLI requires splitting the PCI lanes, which this board can't do.  Crossfire doesn't require this, so it works just fine.

And i think the max ram speed is 1600.  It will take 1866, but will only run at 1600.

Brand	GIGABYTE
Series	G1 Gaming
Model	GA-H97-Gaming 3

CPU Socket Type	LGA 1150
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium

Number of Memory Slots	4x240pin
Memory Standard	DDR3 1600/1333
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express 2.0 x16	1 (x4)
PCI Express x1	2 x PCI Express x1
PCI Slots	3 x PCI Slots

Serial ATA (SATA)	6 x SATA 6Gb/s
SATA Express	1 x SATA Express
M.2	1 x M.2
SATA RAID	0/1/5/10

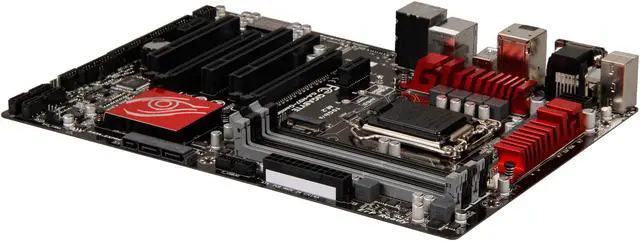

GIGABYTE G1 Gaming GA-H97-Gaming 3 LGA 1150 Intel H97 HDMI USB 3.0 ATX Intel Motherboard

Learn more about the GIGABYTE GA-H97-Gaming 3

Customer Reviews of the GIGABYTE GA-H97-Gaming 3

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

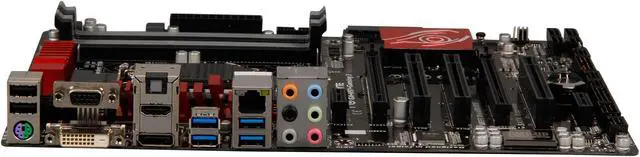

Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D 1 x D-SUB
HDMI	1 x HDMI
RJ45	1 x RJ45
DisplayPort	1 x DisplayPort
USB 3.0	4 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	6 Ports

Onboard USB	2 x USB 3.0 + 6 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling fan header (CPU_OPT) 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x S/PDIF Out header 1 x Clear CMOS jumper

Onboard Audio
Audio Chipset	Realtek ALC1150
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Killer E2201
Max LAN Speed	1Gbps

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 8.4"
Power Pin	24 Pin

Item#: N82E16813128724
