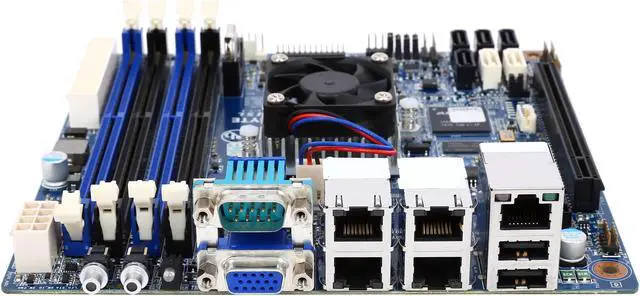

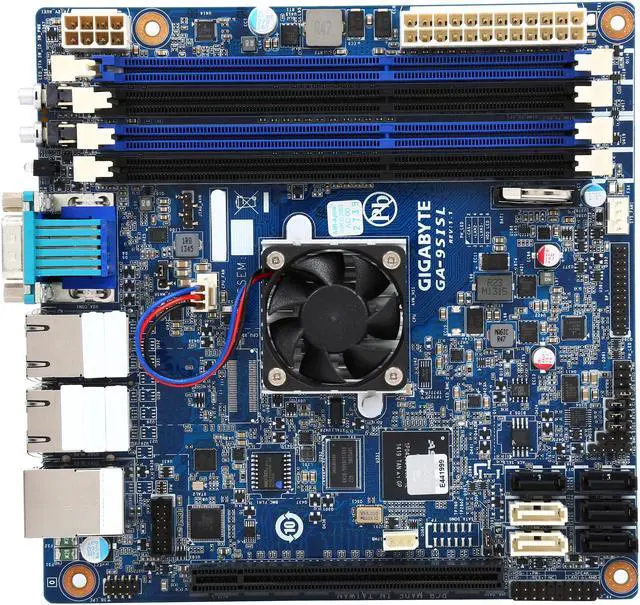

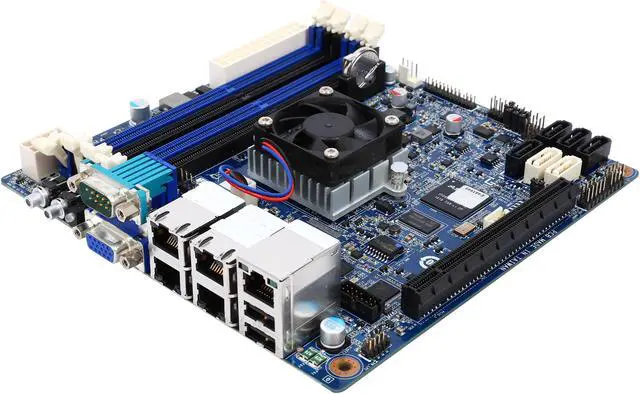

GIGABYTE GA-9SISL Mini ITX Server Motherboard BGA 1283

4 x regular DIMM slots supporting ECC memory. Cheaper and more flexible solution compared to SO-DIMM slots usually found on competing Mini-ITX products.

1 x PCIe x16 slot for additional storage or network features.

4 x Gigabit LAN ports for flexible network configurations.

1 separate management LAN port to access the board's remote management functions.

A board placement optimized for rackmount integration. Also, its rear interface includes buttons and LEDs designed to match the maintenance workflow of such integration.

6 storage ports, which can be complemented with a storage PCIe card.

This combination of features make the GA-9SISL a perfect solution to build microservers, lightweight redundant configurations, web hosting arrays, network appliances, and much more.

The new Intel® Atom™ processors C2000 family offers a breakthrough boost in performance, memory capacity and power efficiency over the previous Atom™ generations. It is now the ideal choice for a server deployment requiring high density and low power consumption for light and scalable workloads.

The Intel® Atom™ processors C2750 is part of the 2nd generation of Intel® Atom™ SoC (System on a Chip) for servers. This octo-core processor delivers performance up to 7 times higher, memory capacity up to 8 times higher, and energy efficiency up to 6 times higher than the previous Atom™ generation. In addition to this leap in performance, this processor also includes datacenter class features:

• Improved data integrity and system uptime through ECC memory support.
• Faster and richer virtualization usages thanks to the Intel® VT-x Technology.
• Stronger processing and management of storage and network loads.
• Transparent and flexible integration through x86 compatibility.

---

Form Factor	Mini-ITX 170W x 170D (mm)
CPU	Intel® Atom™ Processor C2750 8 cores / 8 threads 2.4 - 2.6GHz 4MB L2 cache 20W max. TDP
Socket	1 x BGA 1283
Memory	4 x DIMM slots Supports unbuffered ECC or non-ECC UDIMM modules Supports single rank and dual rank UDIMM modules Supports 1.35V and 1.5V modules Up to 32GB 1600/1333MHz
LAN	4 x GbE LAN ports (Intel® I354);1 x 10/100 management LAN
Video	Integrated in Aspeed® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
SATA	2 x SATA III 6Gb/s ports; 4 x SATA II 3Gb/s ports
Expansion Slots	1 x PCIe x16 (Gen2 x16 bus) slot
Internal I/O	1 x 24-pin ATX main power connector 1 x 8-pin 12V auxiliary power connector 1 x CPU fan header 1 x System fan header 2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports 1 x CMOS battery 1 x HDD back plane board header 1 x LED header 1 x Skip supervisor password jumper 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x BMC jumper 1 x PMBUS header 1 x JTAG header 1 x Front panel header 1 x Front panel header (proprietary) 1 x SATA port DOM support jumper 1 x IPMB connector 1 x TPM header 1 x LPC header
Rear I/O	1 x Power button with LED 1 x ID button with LED 1 x Status LED 1 x Serial 1 x VGA 5 x RJ45 2 x USB 2.0
TPM	1 x TPM header
OS Supported	Windows Server 2008 Enterprise R2 SP1 (x64) Windows Server 2012 R2 (x64) Red Hat Enterprise Linux 6.4 (x64) SUSE Linux Enterprise Server 11.3 (x64)
PSU Connectors	1 x 24-pin ATX main power connector; 1 x 8-pin 12V auxiliary power connector
