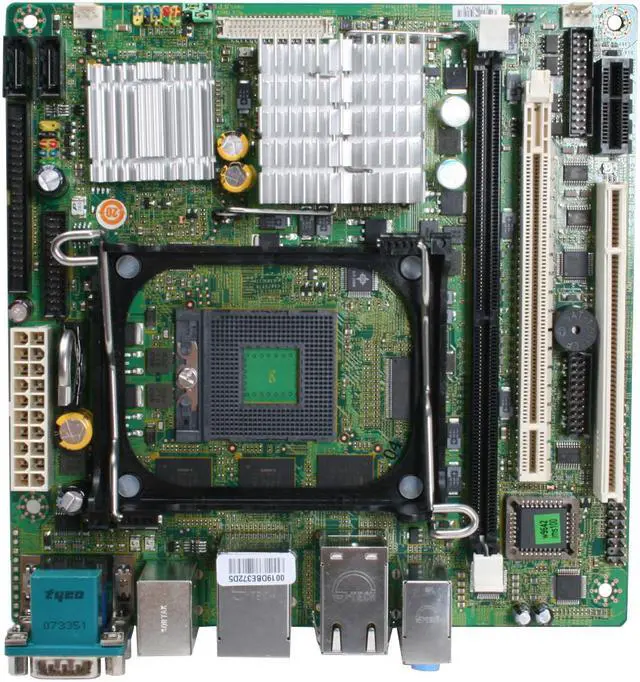

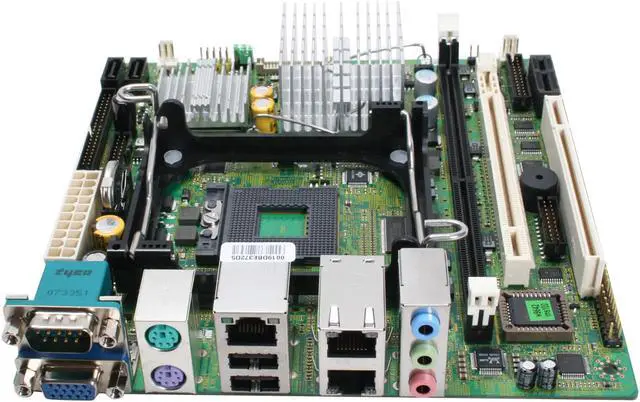

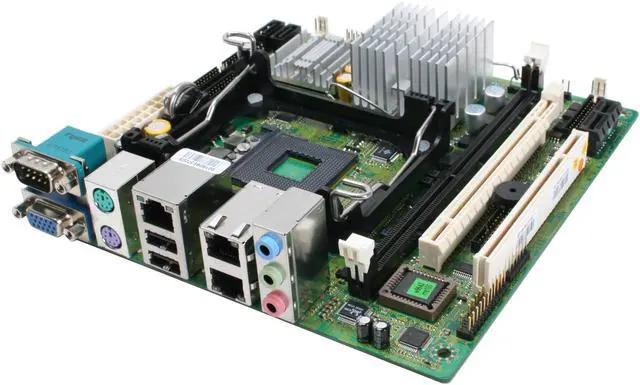

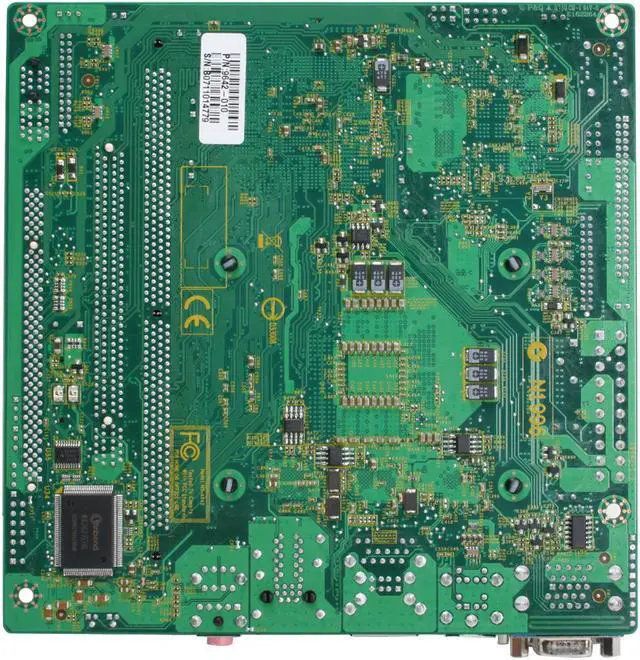

MSI MS-9642 Socket M Intel 945GM Mini ITX Intel Motherboard
- Intel 945GM
- Core 2 Duo / Core Duo / Core Solo Mobile
- DDR2 667
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI MS-9642
| Brand | MSI |
|---|---|
| Model | MS-9642 |
| CPU Socket Type | Socket M |
|---|---|
| CPU Type | Core 2 Duo / Core Duo / Core Solo Mobile |
| Chipset | Intel 945GM |
|---|---|
| South Bridge | Intel ICH7-M |
| Onboard Video Chipset | Intel GMA 950 |
|---|
| Number of Memory Slots | 1x240pin |
|---|---|
| Memory Standard | DDR2 667 |
| Maximum Memory Supported | 2GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel 82573L |
|---|---|
| Max LAN Speed | Three 10/100/1000Mbps |
| Back I/O Ports | 2 x PS/2 / 2 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 2.0 pinheader (2 ports) |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 20 Pin |

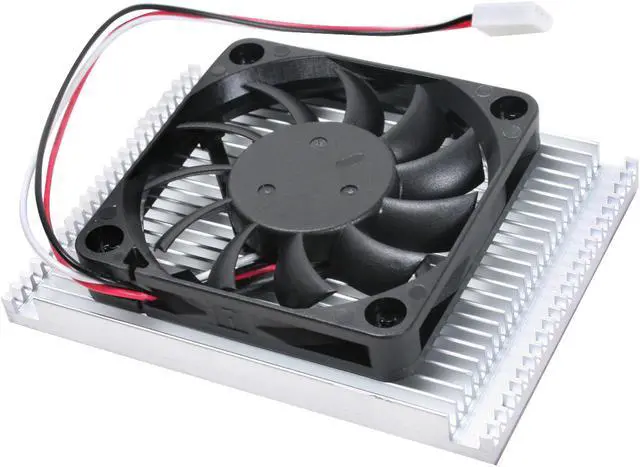

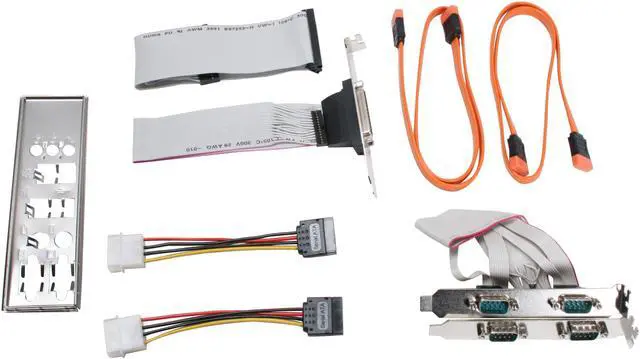

| Package Contents | MS-9642 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable LPT Bracket COM Bracket CPU Cooler with Fan |
|---|
| First Listed on Newegg | February 05, 2008 |
|---|
