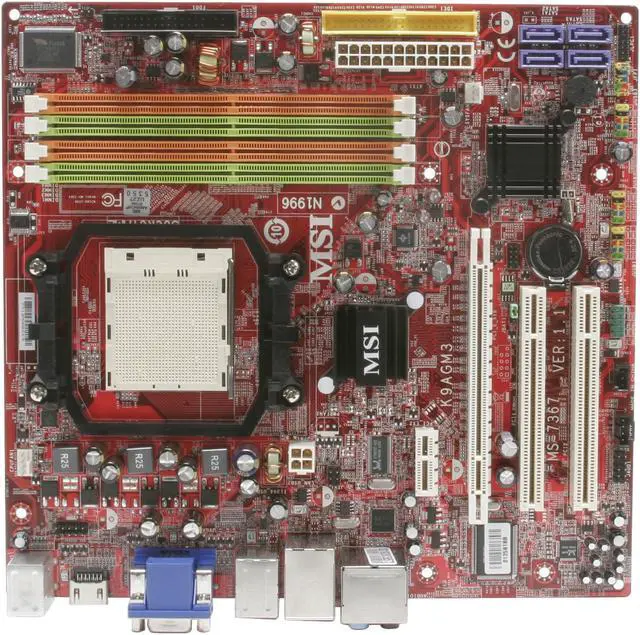

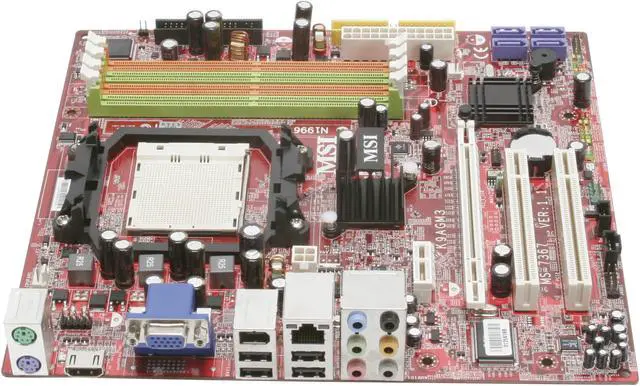

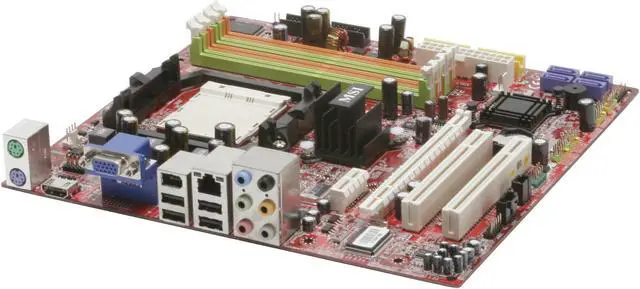

MSI K9AGM3-FIH AM2 AMD 690G HDMI Micro ATX AMD Motherboard
- AMD 690G
- Athlon 64 X2 / Athlon 64 / Sempron
- DDR2 800
Specs
Reviews (18)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI K9AGM3-FIH
| Brand | MSI |
|---|---|
| Model | K9AGM3-FIH |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 / Sempron |
| FSB | 1000 MHz |
| Chipset | AMD 690G |
|---|---|
| South Bridge | ATI SB600 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1 |
| Onboard Video Chipset | ATI Radeon Xpress 1250 |
|---|
| Audio Chipset | Realtek ALC883 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111B |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.0" |
| Power Pin | 24 Pin |

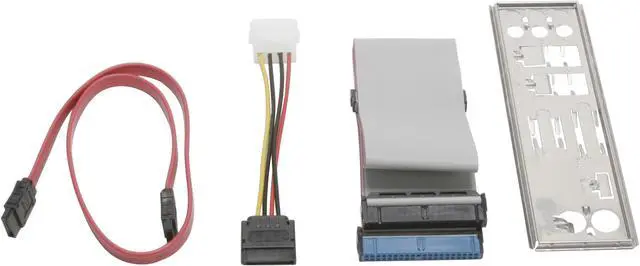

| Package Contents | K9AGM3-FIH Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| First Listed on Newegg | August 17, 2007 |
|---|
