| Product Rating: |

|
| Total Reviews: |
7 |
jake
- Pros: This board works great!!! It looks sweet with all the led lights, and all the copper that keeps it nice and cool!!!
- Cons: None yet
- Other Thoughts: I'm running a intel quad-core, and ddr-3 ram, with no problems. The bios overclocking utility is great!!
Terribad!
- Pros: Took only moments to set up and install all the components. Nice having the CMOS clear button instead of having to worry with Jumpers.
- Cons: Board died within 30 days of ownership. System would lock up and not POST! Sent to MSI for replacement and their customer service is terrible. It's been about 2 weeks and the board is still being "repaired."
so far - junk
- Pros: looks nice, cmos reset button is a nice option for overclocking, and it comes with nice looking cables and handy connectors for your case. makes for a good install.
- Cons: got this board about 2 weeks ago now, booted up perfect the first time, but any time after that it hangs before i can even get into the bios. first boot worked using ocz 1033 ram, since then i've tried corsair 1600 with the same result. returning for replacement, hopefully i'll get one that actually works like it's supposed to.
| Model |
| Brand |
MSI |
| Model |
P45D3 Platinum |
| Supported CPU |
| CPU Socket Type |
LGA 775 |
| CPU Type |
Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB |
1600(O.C)/1333/1066/800MHz |
| Chipsets |
| North Bridge |
Intel P45 |
| South Bridge |
Intel ICH10R |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR3 1600(O.C)/1333 |
| Maximum Memory Supported |
8GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express 2.0 x16 |
2 x PCIE x16 slots, the PCIE x16 lanes will auto arrange from x16/x0 to x8/x8 |
| PCI Express x1 |
2 |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| SATA 3Gb/s |
8 |
| SATA RAID |
0/1/5/10 |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |
Realtek ALC888 |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
Realtek 8111C |
| Max LAN Speed |
10/100/1000Mbps |
| Rear Panel Ports |
| PS/2 |
2 |
| USB 1.1/2.0 |
6 x USB 2.0 |
| IEEE 1394 |
1 x IEEE 1394a |
| eSATA |
1 x eSATA 3Gb/s |
| S/PDIF Out |
1 x Optical |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
3 x USB 2.0 connectors |
| Onboard 1394 |
| Onboard 1394 |
1x 1394a |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 9.6" |
| Windows Vista |
Certified for Windows Vista |
| Power Pin |
24 Pin |
| Packaging |

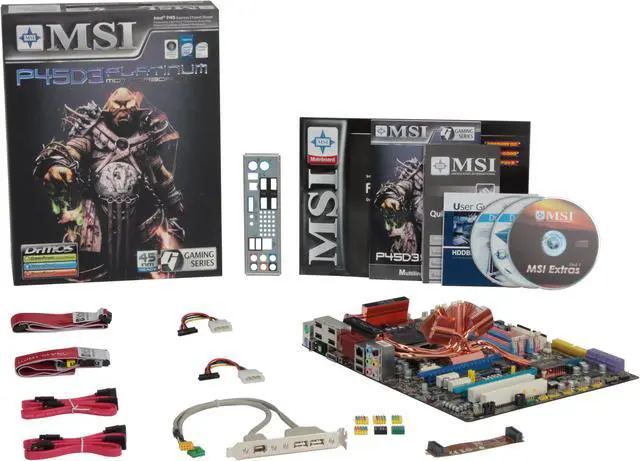

| Package Contents |
P45D3 Platinum
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
IEEE 1394 & USB Bracket
CrossFire Bridge |
|
|
Reviewed By: on 4/19/2009
Tech Level: somewhat high - Ownership: 1 week to 1 month
