Model

Brand

MSI

Model

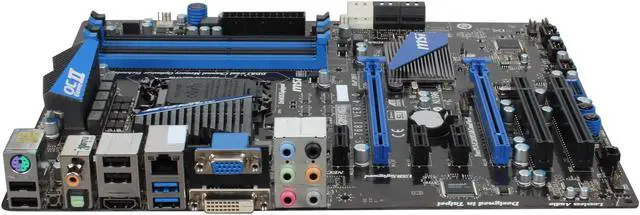

Z68A-GD55 (G3)

Supported CPU

CPU Socket Type

LGA 1155

CPU Type

Core i7 / i5 / i3 (LGA1155)

Chipsets

Chipset

Intel Z68

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 1066/1333/1600*/2133*(OC)

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

2 x PCI Express 3.0 x16

PCI Express x1

3 x PCI Express x1

PCI Slots

2 x PCI Slots

Storage Devices

SATA 3Gb/s

4 x SATA 3Gb/s

SATA 6Gb/s

2 x SATA 6Gb/s

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic

Onboard Audio

Audio Chipset

Realtek ALC892

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek 8111E

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

D-Sub + DVI

HDMI

1 x HDMI

USB 3.0

2 x USB 3.0

USB 1.1/2.0

4 x USB 2.0

S/PDIF Out

1 x Optical, 1 x Coaxial

Audio Ports

6 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 6 x USB 2.0

Other Connectors

ATX 24-Pin power connector
8-pin ATX 12V power connector
CPU x 1 / System x 4 FAN connectors
CD-in connector
Front panel audio connector
Front panel connector
1 x chasis intrusion connector
1 x Clear CMOS jumper
1 x SPDIF-out connector
1 x TPM module connector
1 x DLED3 connector
1 x Voltage Check Point
1 x Power button
1 x Reset button
1 x OC Genie button

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"

Power Pin

24 Pin

Features

Features

Military Class II components: Top quality & stability

OC Genie II: Auto OC to boost performance in 1 sec

ClickBIOS II: Easy-to-use UEFI BIOS interface

Super Charger: fast charge iPad/iPhone/smartphone

THX TruStudio PRO: deliver the fullest audio experience

Support USB 3.0 & SATA 6Gb/s
