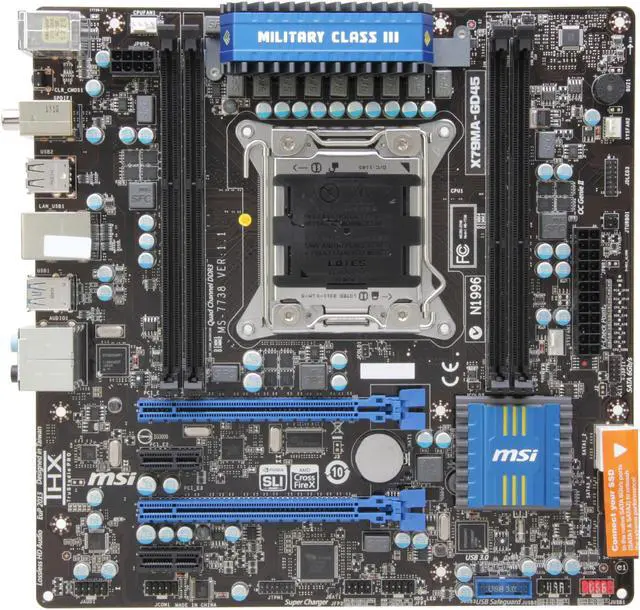

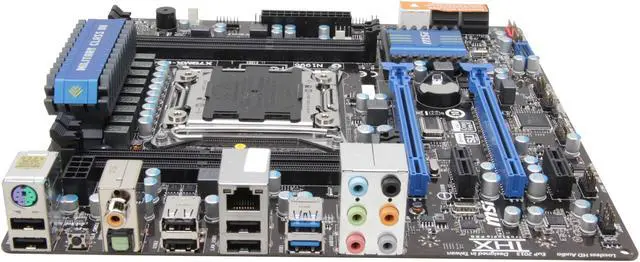

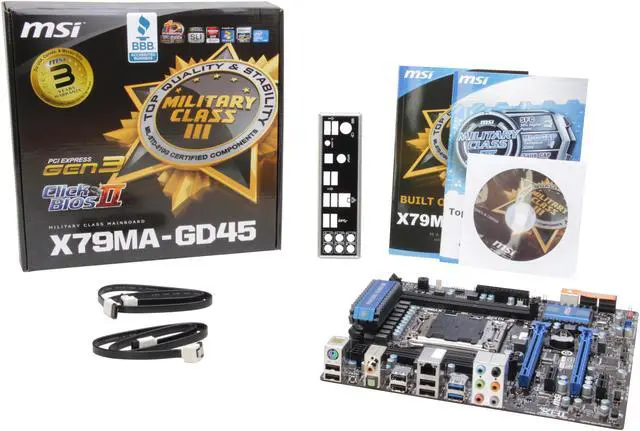

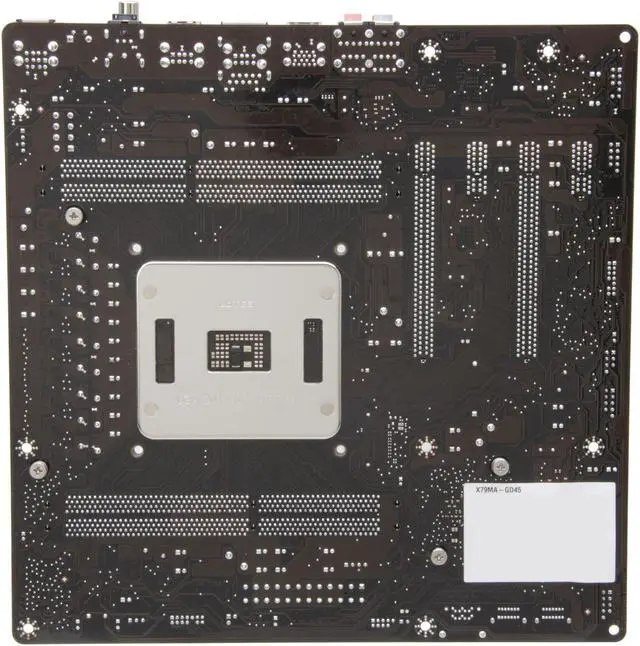

MSI X79MA-GD45 LGA 2011 Intel X79 USB 3.0 Micro ATX Intel Motherboard with UEFI BIOS

(14) Write a Review
  • Intel X79
  • Core i7 (LGA2011)
  • DDR3 2400(OC)/2133(OC)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (14)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI X79MA-GD45

Model
Brand MSI
Model X79MA-GD45
Supported CPU
CPU Socket Type LGA 2011
CPU Type Core i7 (LGA2011)
Chipsets
Chipset Intel X79
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1066/1333/1600/1866 (O.C)/ 2133 (O.C)/ 2400 (O.C)
Maximum Memory Supported 64GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 2 x PCI Express 3.0 x16
PCI Express x1 2 x PCI Express x1
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x S/PDIF Coaxial Out / 2 x USB 3.0 / 6 x USB 2.0/1.1
PS/2 1 x PS/2 keyboard/mouse port
USB 3.0 2 x USB 3.0
USB 1.1/2.0 6 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Other Connectors ATX 24-Pin power connector
8-pin ATX 12V power connector
CPU x 1 / System x 2 FAN connectors
Front panel audio connector
Front panel connector
1 x chasis intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector
1 x Voice Genie connector
1 x MultiConnect Panel connector
1 x V-Check Point connector
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Features
Features Military Class III: Top Quality & Stability

PCI Express Gen 3: World’s 1st PCI Express Gen 3 Mainboard Brand

Click BIOS II: World’s 1st Unified UEFI & Software Graphical Interface

OC Genie II: Overclock in 1 Second

Supports USB 3.0 & SATA 6Gb/s
Additional Information
First Listed on Newegg November 14, 2011
