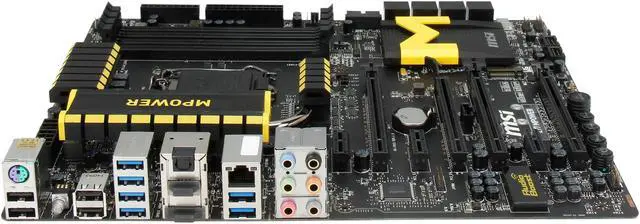

MSI Z97 MPOWER LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard
Sold and Shipped by
Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Warranty & Returns
Learn more about the
MSI Z97 MPOWER
Model Brand MSI Model Z97 MPOWER Supported CPU LGA 1150 CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) Chipsets Intel Z97 Memory Number of Memory Slots 4×240pin Memory Standard DDR3 3200(OC)/3100(OC)/3000(OC)/2800(OC)/2666(OC)/2600(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1600/1333/1066 Maximum Memory Supported 32GB Dual Channel Expansion Slots PCI Express 3.0 x16 3 x PCIe 3.0 x16 slots(PCI_E2, PCI_E5, PCI_E7 support x16, x8/x8, x8/x4/x4 modes) PCI Express 2.0 x16 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 speed) PCI Express x1 3 x PCI Express x1 Storage Devices 8 x SATA 6Gb/s M.2 1 x M.2 SATA RAID 0/1/5/10 Onboard Video Supported only by CPU with integrated graphic Onboard Audio Realtek ALC1150 8 Channels Onboard LAN LAN Chipset Intel I218 Max LAN Speed 10/100/1000Mbps Rear Panel Ports 1 x HDMI DisplayPort 1 x DisplayPort 6 x USB 3.0 USB 1.1/2.0 4 x USB 2.0 1 x Optical Audio Ports 6 Ports Internal I/O Connectors Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports) Other Connectors 1 x 24-pin ATX power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x 6-pin ATX 12V power connector* 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Clear CMOS jumper 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 9 x V-Check connectors 1 x GO2BIOS button 1 x Power button 1 x Reset button 2 x Base Clock control buttons 1 x OC Genie button 1 x Multi-BIOS switch 1 x OC Genie mode switch 1 x Slow mode switch 1 x 2-Digit Debug Code LED Physical Spec Form Factor ATX Dimensions (W x L) 12.01" x 9.61" Power Pin 24 Pin
Features Features Supports 5th and 4th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socket Supports DDR3-3200(OC) Memory Supports USB 3.0 + SATA 6Gb/s 12 Phase DigitALL Power Design Multi-GPU: NVIDIA SLI & AMD CrossFire Support OC Certified: Military Class Burn-in Test Passed Military Class 4: Top Quality & Stability OC Genie 4: Overclock in 1 Second Click BIOS 4: Easily Fine-tune Your System PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand Audio Boost: Reward Your Ears with True Quality
Warranty, Returns, And Additional Information
Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details
Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's
Standard Return Policy.
