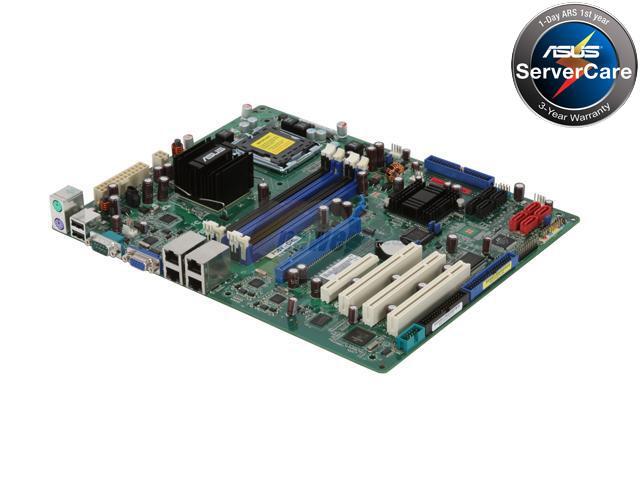

Learn more about the ASUS P5BV-C/4L
Model
Brand
ASUS
Model
P5BV-C/4L
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Quad-Core Intel Xeon processor 3300 series (45nm) Dual-Core Intel Xeon processor 3100 series (45nm) Quad-Core Intel Xeon 3200 series Dual-Core Intel Xeon 3000 series
System Bus
1333/1066 MHz
Chipsets
North Bridge
Intel 3200
South Bridge
Intel ICH7R
Memory
Number of DDR2 Slots
4 x 240Pin
DDR2 Standard
DDR2 667 / 800
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
ECC Supported
ECC / Non ECC
Expansion Slots
PCI Express x16
1 x PCI-E x16 (x8 link)
PCI Express x8
1 x PCI-E x8 (x1 link)
PCI Slots
3 x PCI Slots
Storage Devices
PATA
1 x ATA 100 2 Dev. Max
Additional PATA
1 x ATA 100 2 Dev. Max
SATA
4 x SATA 3.0Gb/s
SATA RAID
Intel Matrix Storage utility supports software RAID 0, 1, 10 & 5 for Windows only LSI MegaRAID driver supports software RAID 0, 1& 10 for Windows and Linux
Additional SATA
4 x SATA 3.0Gb/s
Additional SATA RAID
Support software RAID 0, 1& 10 for Windows and Linux
