| Product Rating: |

|
| Total Reviews: |
120 |
junk
- Pros: utilizes ddr3, lots of options, looks cool, water ready, supports crossfireX
- Cons: locks up a lot, doesn't like several different kinds of ram, once it shuts off it wont let you turn it back on for about an hour, lots of other problems(see asus forums)
- Other Thoughts: i bought two of these because i was going to build two pc's. same problems with both boards. i've tried swapping out everything but the processor(which is fairly new), so it's definitely the board.
I'm definitely contacting ASUS and trying to get a different board that supports crossfireX
Cooling setup
- Pros: Good board. Had some issues with corrupt data if you don't hook up water cooling to Fusion block
- Cons: Get rid of the plastic couplers for tubing, especially the 1/2 to 3/8 reducers. They fall apart after a few days. Get nylon reducers at ACE or Home Depot, get decent hose clamps and you won't have any leaks.
- Other Thoughts: Using Swiftech cooling system. Runs cool and very quiet with this board and temp sensors let you choose where to monitor. LCD probe is worthless.
blame vista
- Pros: i got the motherboard in december running quad6600 cpu and dual 3870 vidio cards and 2 gig cosair ddr3
ran great for 6 months no problem with vista64
added 4 gig patriot ddr3 had problems flashed bios
easy worked great untill auto upgrade vista
- Cons: vista sp upgrades will screw up mobo
- Other Thoughts: beware of microsoft if you allow vista to upgrade the system will not boot the only fix thjat i found is to reinstall the vista and not allow it to upgrade and the system is stable and works great.
| Model |
| Brand |
ASUS |
| Model |

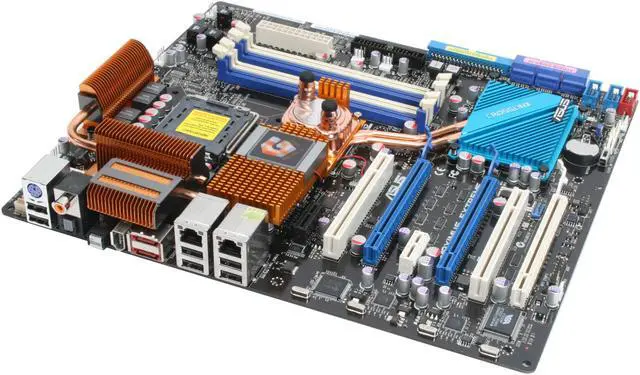

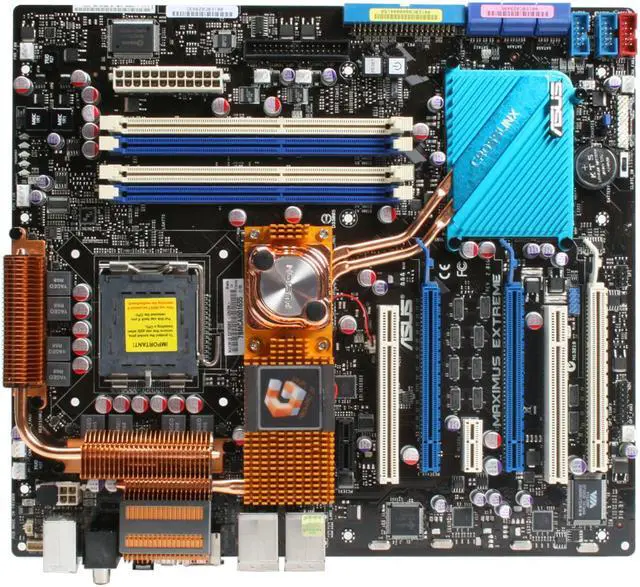

MAXIMUS EXTREME <GREEN> |
| Supported CPU |
| CPU Socket Type |
LGA 775 |
| CPU Type |
Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB |
1600/1333MHz |
| Chipsets |
| North Bridge |
Intel X38 |
| South Bridge |
Intel ICH9R |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR3 1800(O.C)/1600(O.C.)/1333/1066 |
| Maximum Memory Supported |
8GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express 2.0 x16 |
2 |
| PCI Express x16 |
1 |
| PCI Express x1 |
2 x PCIe x1, PCIex1_1 (black) is compatible with audio slot |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| SATA 3Gb/s |
6 |
| SATA RAID |
0/1/5/10 Matrix RAID |
| Additional RAID Controller |
JMB363 |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |

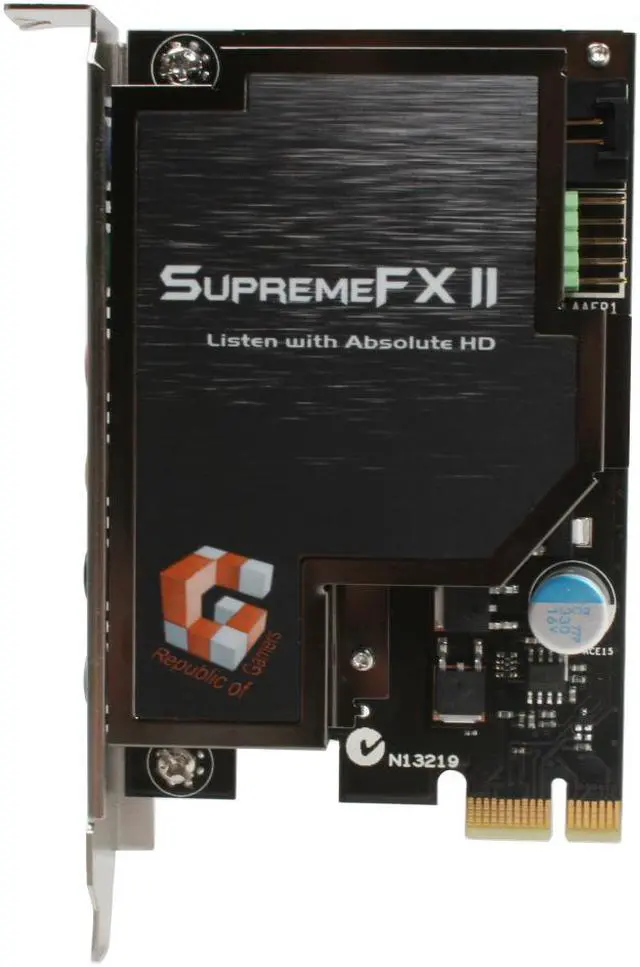

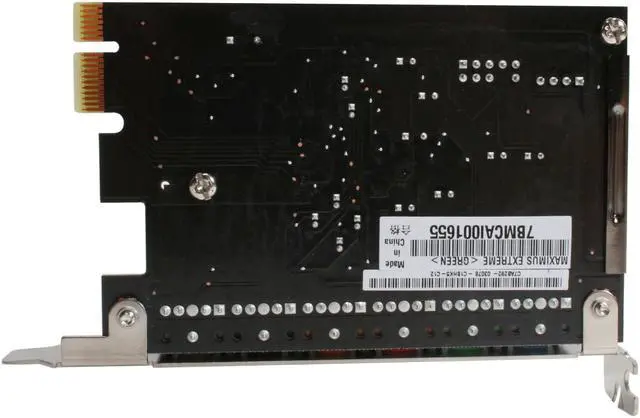

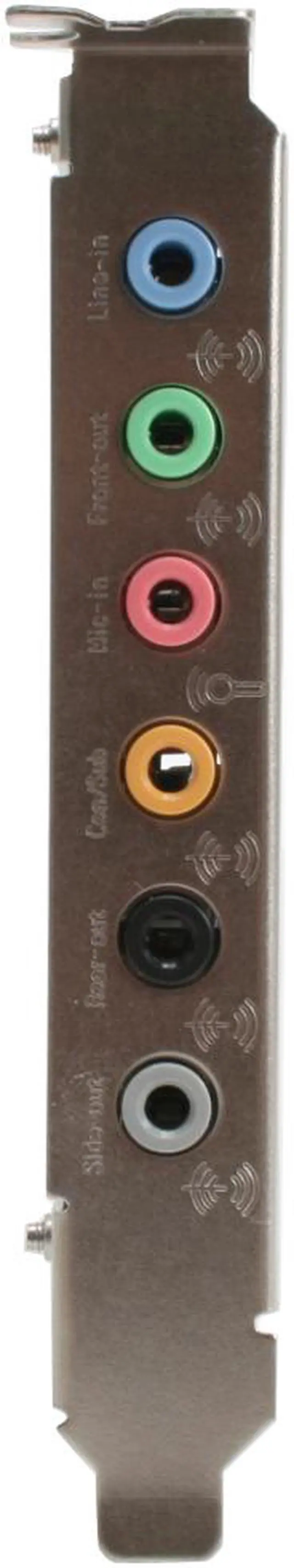

SupremeFX II Audio Card
- ADI 1988B 8-channel High Definition Audio CODEC
- Noise Filter |
| Audio Channels |
8 Channels |
| Onboard LAN |
| Max LAN Speed |
Dual 10/100/1000Mbps |
| Rear Panel Ports |
| PS/2 |
1 |
| USB 1.1/2.0 |
6 x USB 2.0 |
| IEEE 1394 |
1 x IEEE 1394a |
| eSATA |
2 x eSATA 3Gb/s |
| S/PDIF Out |
1 x Optical, 1 x Coaxial |
| Onboard USB |
| Onboard USB |
6 x USB 2.0 |
| Onboard 1394 |
| Onboard 1394 |
1x 1394a |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 10.6" |
| Windows Vista |
Certified for Windows Vista |
| Power Pin |
24 Pin |
| Features |
| Features |
LGA775 Intel 45nm Processor Ready
ATI CrossFireX Technology
Frequency LED
2-Phase DDR3
C.P.R.(CPU Parameter Recall)
Stack Cool 2
ASUS EPU (Energy Processing Unit)
EL I/O and LCD Poster
Onboard Switch |

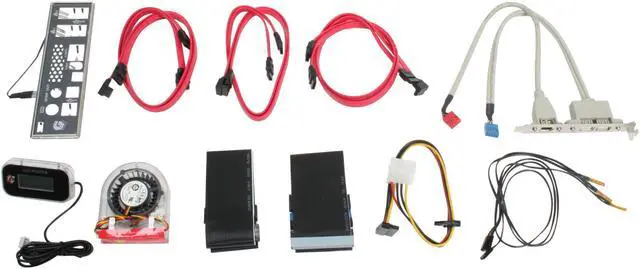

| Packaging |
| Package Contents |
MAXIMUS EXTREME <GREEN>
SupermeFX II
Driver Disk
User Manual
Game Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
6 x SATA Cable
4-pin to SATA Power Cable
USB and IEEE 1394 Bracket
Thermal Probes
ASUS Optional Fan
EL I/O Shield |
|
|
Reviewed By: Fuzz on 10/27/2008
Tech Level: somewhat high - Ownership: 1 month to 1 year
