Item#: N82E16813131671

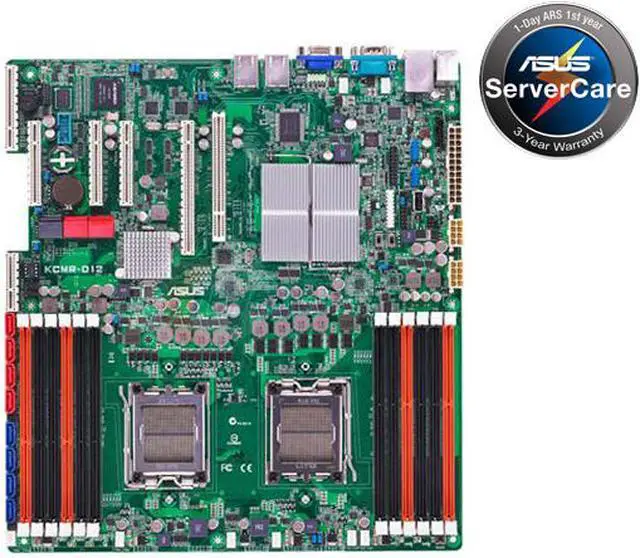

ASUS KCMR-D12(ASMB4-IKVM) Server Motherboard Dual Socket C32 AMD SR5670 DDR3 1333

  • Dual Socket C32
  • AMD SR5670
  • 12 x 240pin
ICON Loading...

Learn more about the ASUS KCMR-D12(ASMB4-IKVM)

Model

Brand
ASUS
Model
KCMR-D12(ASMB4-IKVM)

Supported CPU

CPU Socket Type
Dual Socket C32
CPU Type
Dual AMD Opteron 4100 series

Chipsets

North Bridge
AMD SR5670
South Bridge
AMD SP5100

Memory

Number of DDR3 Slots
12 x 240pin
DDR3 Standard
DDR3 1333
Maximum Memory Supported
128GB(RDIMM) / 32GB(UDIMM)
ECC Supported
Yes
Registered
Yes

Storage Devices

SATA
6 x SATA 3.0Gb/s

Onboard Video

Onboard Video Chipset
Aspeed AST2050

Onboard LAN

LAN Chipset
Intel 82574L
LAN Speed
10/100/1000Mbps
Second LAN Chipset
Intel 82574L
Second LAN Speed
10/100/1000Mbps
Max LAN Speed
Dual 10/100/1000Mbps

Manufacturer Warranty

Parts
3 years limited
Labor
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the ASUS KCMR-D12(ASMB4-IKVM)

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Michael Y.
  • 4/13/2011 8:42:53 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

4 out of 5 eggsExcellent server motherboard

Pros: Exceptional build quality. Excellent options; allows for a ton of fans, has automatic fan control of either DC 3-pin or 4pin PWM fans for both the CPU and case fans; huge number of ram slots, non ECC, ECC and Registered ram support. adequate number of PCIe slots.

IKVM features are neat for remote shutdown, reboot, BIOS control etc; this board comes with the IKVM module, which is normally $50 or so.

Dual Intel Enterprise NIC ethernet 1000BT controllers.

Comes with Socket 940 cpu cooler brackets (Major plus!). Tip: Use the Coolermaster Hyper 101A CPU coolers if running a tower case or a 3U or higher rackmount case; they fit next to each other on the board, cool very nicely and are cheap; MUCH cheaper than the Noctua coolers.

Cons: Long POST. No on board sound (must purchase sound card).

5670 chipset; this limits the number of PCIe lanes. Thus this board is designed as a basic or mid-range server board. Do not buy this board for Workstation usage; that would be reserved for a 5690 chipset board, like the TYAN boards.

Requires a eATX case; make sure to either buy a very large case or a rackmount case.

The placement of the C32 sockets makes cpu cooler choices limited. The cpu sockets are very close together horizontally; you are limited to Dynatron style coolers (which are very loud and do a poor job at cooling the CPU; but are necessary if you are doing a 2U or 1U case) or using the Coolermaser Hyper 101 coolers (which work very well). This is not the case with the KCMA-D8.

Other Thoughts: Two AMD Opteron 4180 processors, 4x4GB Crucial DDR3-1333 single ranged Registered modules, Corsair Obsidian 800D eATX case, SeaSonic 750W 80+ Gold power supply, Twin Coolermaster Hyper 101 CPU coolers loaded with Enermax MAGMA 80MM fans, 4x Samsung Spinpoint F3R RAID class SATA hard drives, LSI Megaraid 8130i PCIe x8 SAS controller, Gigabyte Screencooling Radeon 4550 PCIe X16 video card

1 out of 1 people found this review helpful. Did you? Yes No
