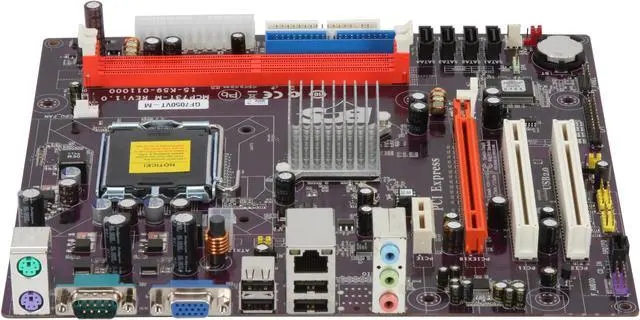

ECS GF7050VT-M LGA 775 GeForce7050 / 610i Micro ATX Intel Motherboard

(60) Write a Review
  • GeForce7050 / 610i
  • Core 2 Duo / Pentium D / Celeron D
  • DDR2 667
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (60)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) GF7050VT-M

Model
Brand ECS
Model GF7050VT-M
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Pentium D / Celeron D
FSB 1333 (OC.)/1066MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset GeForce7050 / 610i
Onboard Video
Onboard Video Chipset NVIDIA GeForce 7050
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 667
Maximum Memory Supported 4GB
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1
Onboard Audio
Audio Chipset VIA VT1708A
Audio Channels 6 Channels
Onboard LAN
LAN Chipset ATHEROS AR8012
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.7"
Power Pin 24 Pin

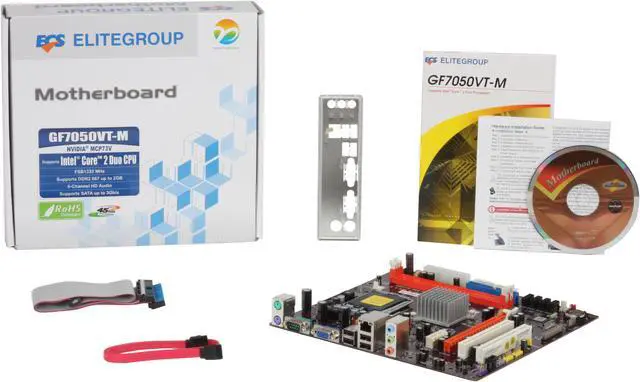

Packaging
Package Contents GF7050VT-M
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
Additional Information
Date First Available March 10, 2008
