ECS X48T-A (1.0) LGA 775 Intel X48 ATX Intel Motherboard

(7) Write a Review
  • Intel X48
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR3 1600
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (7)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) X48T-A (1.0)

Model
Brand ECS
Model X48T-A (1.0)
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
Chipsets
Chipset Intel X48
South Bridge Intel ICH9R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC888S
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel 82566DC
Second LAN Chipset Realtek 8111B
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 6 x USB 2.0
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
S/PDIF In 1 x Coaxial
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 headers support additional 6 USB ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

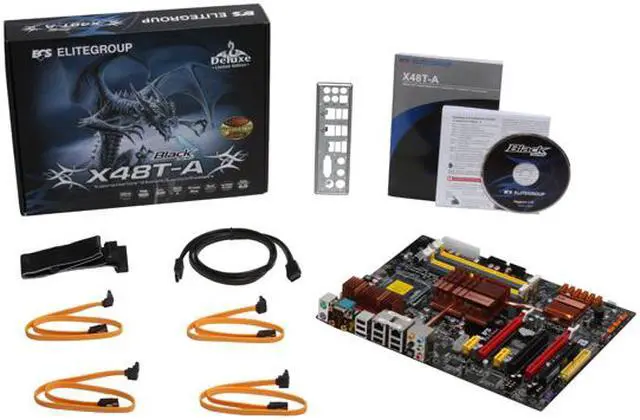

Package Contents X48T-A (1.0)
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
eSATA Cable
Additional Information
First Listed on Newegg June 09, 2008
