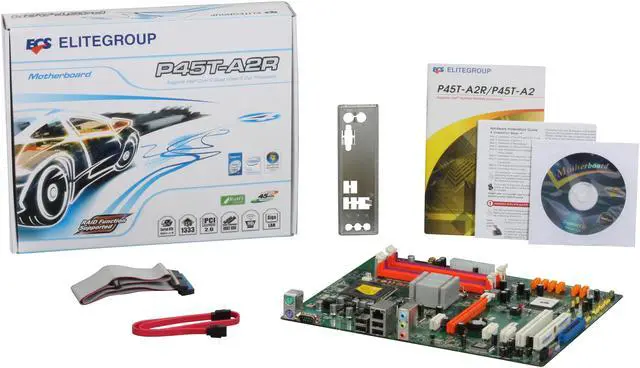

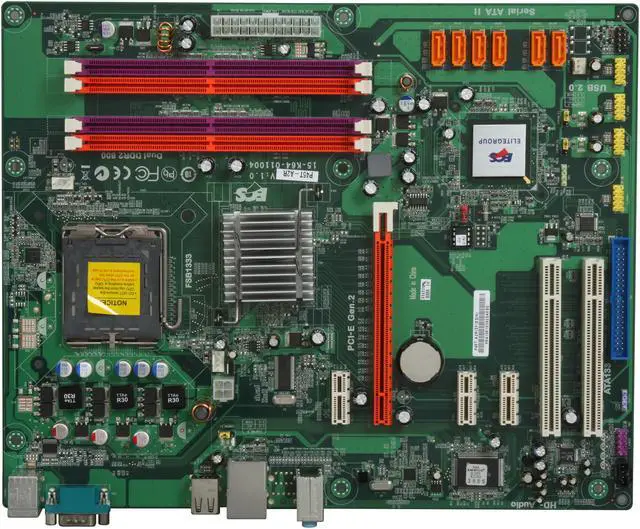

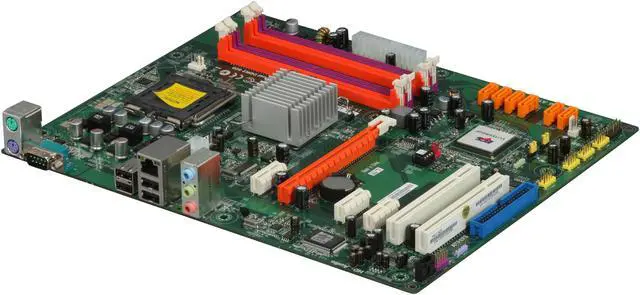

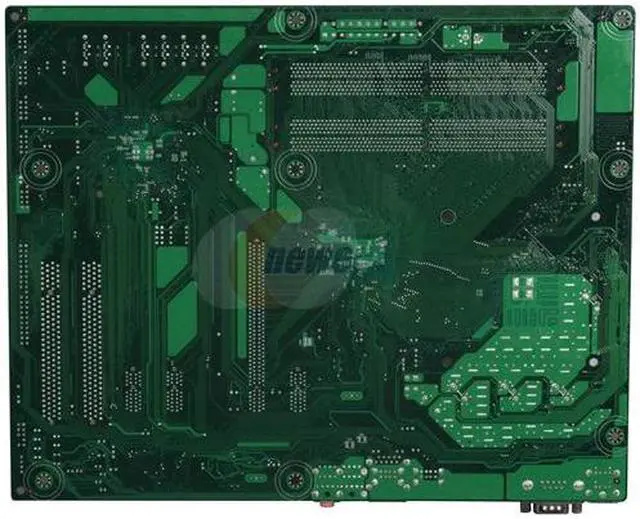

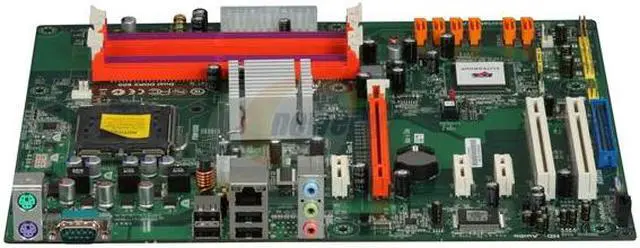

ECS P45T-A2R LGA 775 Intel P45 ATX Intel Motherboard

(3) Write a Review
  • Intel P45
  • Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron Dual Core / Celeron 400 series
  • DDR2 800/667
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) P45T-A2R

Model
Brand ECS
Model P45T-A2R
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron Dual Core / Celeron 400 series
FSB 1600 OC/1333/1066 MHz
Chipsets
Chipset Intel P45
South Bridge Intel ICH10R
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800/667
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 3 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x IDE channel support 2 Ultra DMA133/100/66 devices
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Athlos L1 PCIe GigaLAN controller
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0 headers support additional 8 USB ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Additional Information
First Listed on Newegg June 18, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
