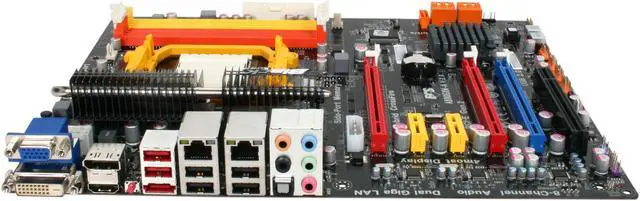

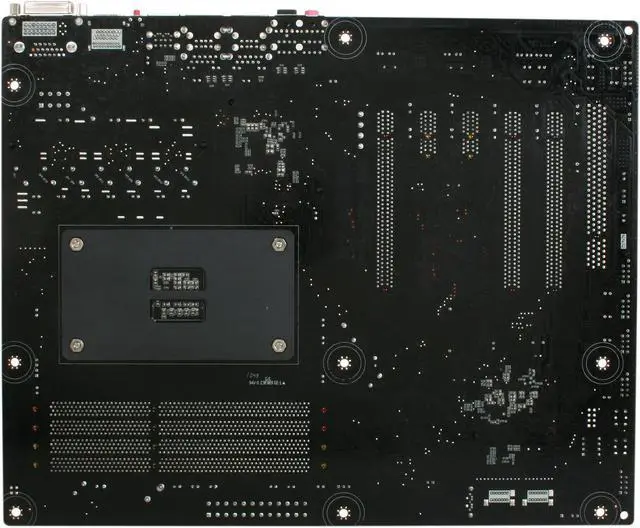

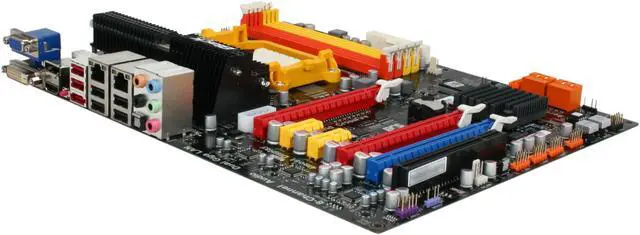

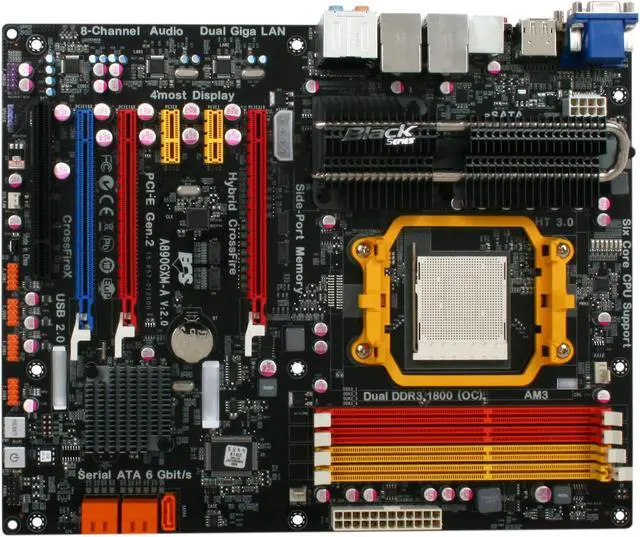

ECS A890GXM-A(2.0) AM3 AMD 890GX HDMI ATX AMD Motherboard

(7) Write a Review
  • AMD 890GX
  • Phenom II / Athlon II / Sempron 100 Series Supports CPU up to 140W TDP only
  • DDR3 1800(OC)/1600(OC)/1333/1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (7)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) A890GXM-A(2.0)

Model
Brand ECS
Model A890GXM-A(2.0)
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron 100 Series
Supports CPU up to 140W TDP only
Chipsets
Chipset AMD 890GX
South Bridge AMD SB850
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1800(OC)/1600(OC)/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 3 x PCI Express Gen 2.0 x16 slots
(The third PCIEX16 only support bandwidth x4)
PCI Express x1 2 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
Serial ATA (SATA) 5 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 4290
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Second LAN Chipset Realtek 8111DL
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DisplayPort / 1 x DVI / 1 x HDMI / 5 x Audio Jacks / 6 x USB 2.0/1.1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
DisplayPort 1 x DisplayPort
USB 1.1/2.0 6 x USB 2.0
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 8 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features 4most Display

Qooltech III

HDCP

eJIFFY

M.I.B. III

ECS "Unlock" Technology

ATI CrossFire X

ATI Hybrid Graphics Technology

Content Protection for Blu-Ray

Dual Gigabit LAN

AMD Vision Ready

eDLU - Drivers Live Update Utility

eBLU - BIOS Live Update Utility
Additional Information
First Listed on Newegg February 08, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
