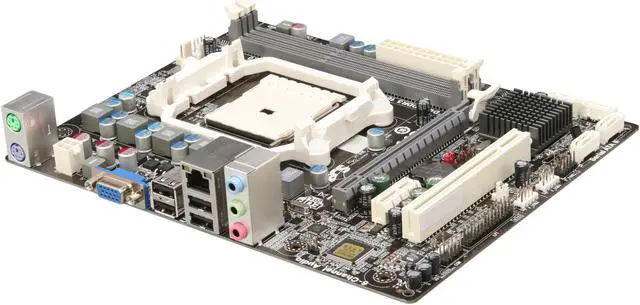

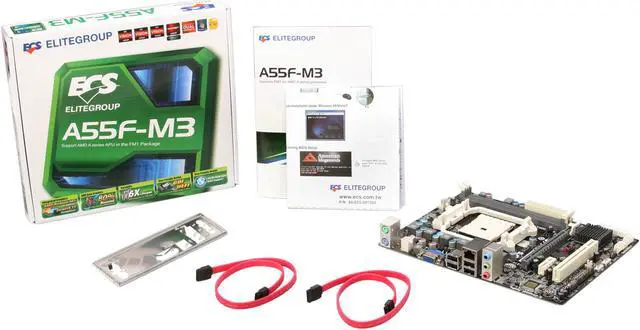

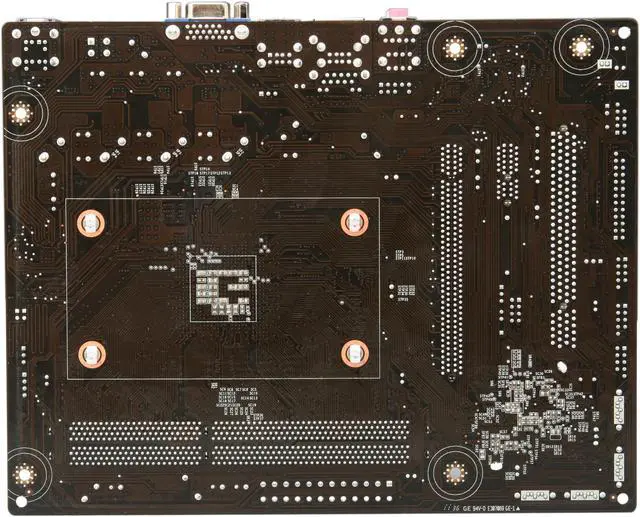

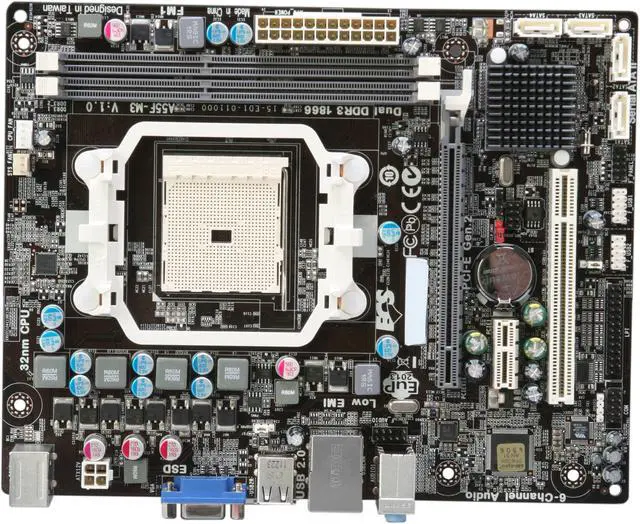

ECS A55F-M3(1.0) FM1 AMD A55 (Hudson D2) Micro ATX AMD Motherboard

(4) Write a Review
  • AMD A55 (Hudson D2)
  • A4 / A6 / A8 / E2 APU
  • DDR3 1333/1600/1866* memory architecture *Duo to limitation of AMD chipset spec, it supports up to 1866 MHz for motherboards with a single DIMM per channel
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (4)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) A55F-M3(1.0)

Model
Brand ECS
Model A55F-M3(1.0)
Supported CPU
CPU Socket Type FM1
CPU Type A4 / A6 / A8 / E2 APU
Chipsets
Chipset AMD A55 (Hudson D2)
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1333/1600/1866* memory architecture
*Duo to limitation of AMD chipset spec, it supports up to 1866 MHz for motherboards with a single DIMM per channel
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA RAID 0/1/10
Onboard Audio
Audio Chipset VIA VT1705
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps

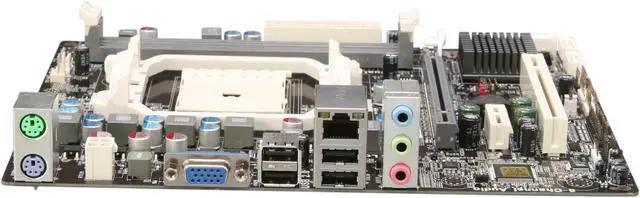

Rear Panel Ports
Back I/O Ports 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Other Connectors 1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x 4pin CPU_FAN connectors
1 x 3-pin SYS_FAN connector
1 x COM header
1 x LPT header
1 x Front panel audio header
1 x Case Open header
1 x Speaker header
1 x Clear CMOS header
1 x SPDIF out header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.06" x 7.09"
Power Pin 24 Pin
Features
Features Support A Series APU( CPU + GPU)

DirectX 11 Support

Support AMD Steady Video Technology

ECS GUI UEFI BIOS

3X Current Supply for ECS EZ Charger

CyberLinkMedia Suite Bundled

Applied Solid Capacitor

Motherboard Intelligent BIOS III (M.I.B III)
Additional Information
Date First Available December 05, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
