Question 1

This MOB has a 4 pin or 12V1 CPU power connector on it. However, my PSU has an 8 pin CPU power connector. Is there an adapter out there, or do I need to return either the MOB or PSU?

Accepted Answer

Usually the power connector that plugs into the little 4 pin square connector on the motherboard close to the CPU is a separate connector coming out of the power supply.  I have seen instances where this 4 pin connector was combined with another connector making it a 6 or 8 pin connector, but the additional pins are usually able to be snapped off of the 4 pin connector.  So in other words, it's two separate connectors that can physically come apart.

Other than that I don't know what to tell you.  I have not seen a power supply that did not have this 4 pin connector in a very long time.

Good Luck!

Question 2

The specs state that the memory is DDR3-1600.

Does this mean I cannot use DDR3-1866, 2000, 2133, 2400, 2600, 2666, 2800, 2933, 3000, 3100, or 3200 RAM?

If I can use these other higher speed RAMs, what would happen?

Accepted Answer

If you use memory that has a speed faster than what a motherboard is rated for, the memory falls back to the highest speed allowed by the board.   So, all of the higher speed RAM would perform as if they were DDR3-1600.

Question 3

The Memory std. on the specifications lists only DDR3 1600. Can I use DDR3 1333 since I plan to use Celeron (which does not support DDR3 1600 or higher frequency)?

Accepted Answer

Yes. It will run at the lower speed. If you go to the ECS website and look at the recommended memory for this board it only lists one module. If you look at the H86H3-M (V1.0) it will list much more. That was the best info I could find. Would probably have to contact support for anything else.

Question 4

can i use a usb flash drive to update the bios on this board?

Accepted Answer

Yes, but a quick warning, if your are getting a gpu, the gtx 700 series and above doesn't work on this board

Question 5

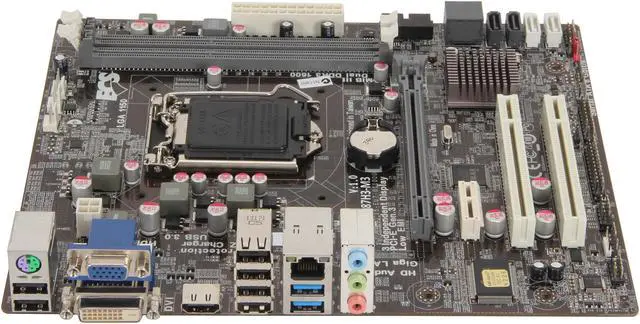

The description says that there are 2 on board usb 2.0 and 2 usb 3.0 headers, but I looked carefully with the zoom and I can't find them in the picture, can you confirm the specs?

Accepted Answer

The USB 3 header looks like it is perpendicular to the board on the right hand side.  It's below the main power connector.  Most mobos typically have 1 of these, but it accommodates 2 full, 3.0 plugs on the front panel.  There appears to be at least 1 USB 2.0 header on the bottom, and possibly a second.  Many times these are split to utilize more than 1 front port, but this mobo has at least one, possibly 2 regarding 2.0.

Brand	ECS
Model	H87H3-M3(1.0)

CPU Socket Type	LGA 1150
CPU Type	4th Generation Intel Core i7/i5/i3/Pentium/Celeron (LGA1150)
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1600
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	0/1/5/10

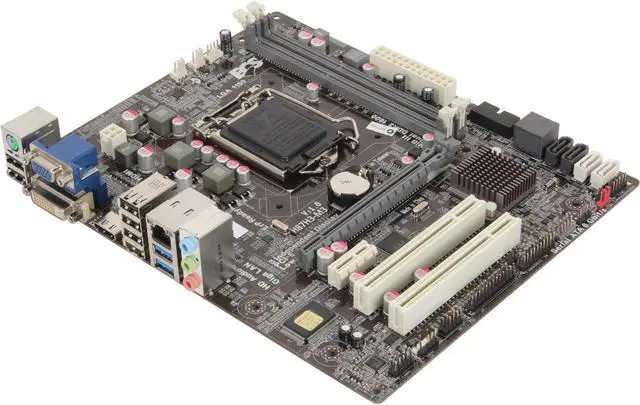

ECS H87H3-M3(1.0) LGA 1150 Intel H87 HDMI USB 3.0 Micro ATX Intel Motherboard

Learn more about the ECS (EliteGroup) H87H3-M3(1.0)

Customer Reviews of the ECS (EliteGroup) H87H3-M3(1.0)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 6 x USB 2.0/1.1
PS/2	1
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	6 x USB 2.0
Audio Ports	3 Ports

Onboard USB	2 x USB 3.0 + 2 x USB 2.0
Other Connectors	1 X 24-pin ATX Power Supply connector 1 X 4-pin 12V Power connector 1 X 4-pin CPU_FAN connector with smart fan 1 X 3-pin SYS_FAN connector with smart fan 1 X Front Panel switch/LED header 1 X Front panel audio header 1 X CLR_CMOS header 1 X CIR header 1 X Serial port header (COM) 1 X Parallel port header (LPT) 1 X TPM header 1 X Chassis intrusion header

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 7.87"
Power Pin	24 Pin

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Realtek 8111G
Max LAN Speed	1Gbps

Item#: N82E16813135354
