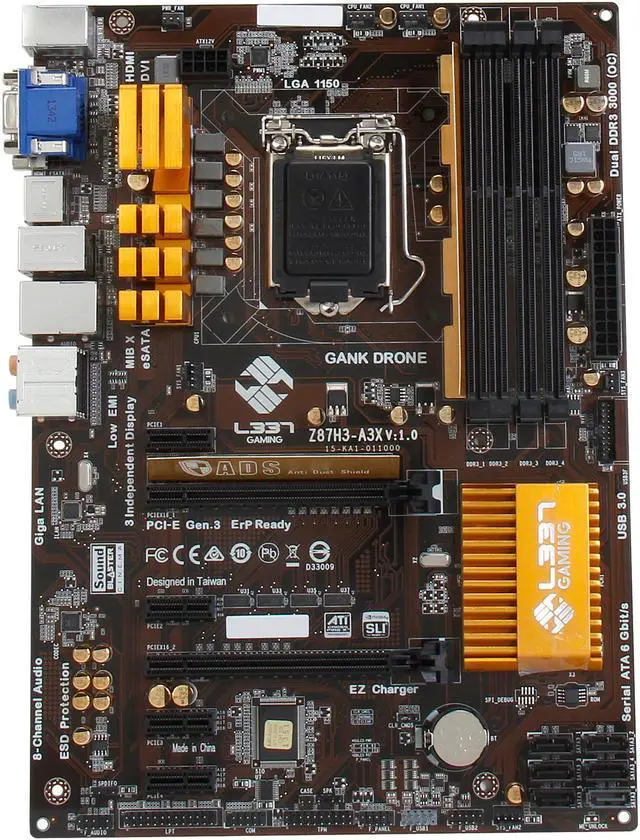

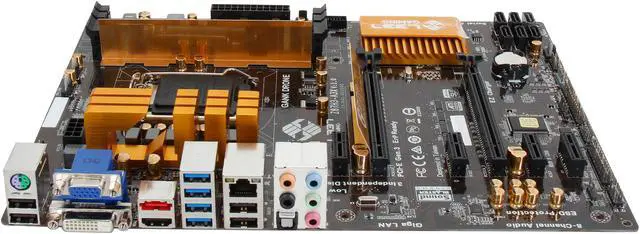

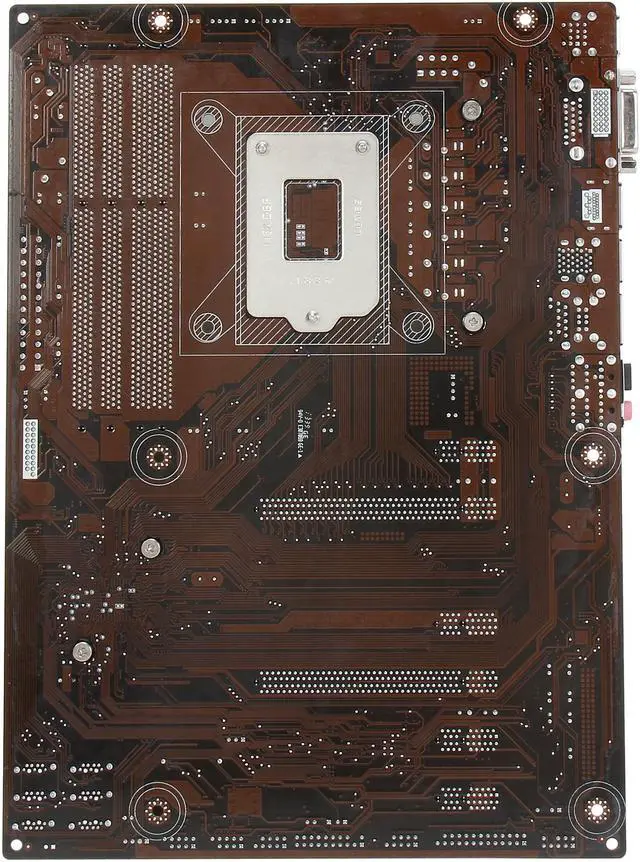

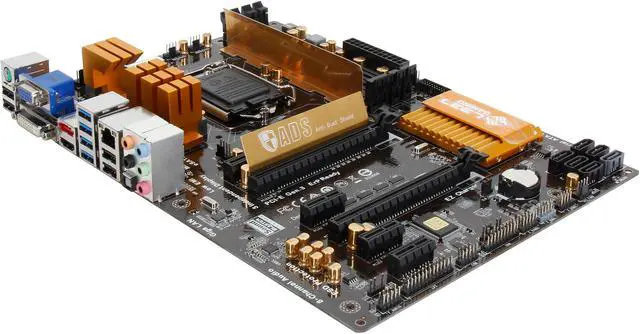

L337 Gaming GANK DRONE Z87H3-A3X (V1.0) LGA 1150 Intel Z87 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard
- Intel Z87
- 4th Generation Intel Core i7/i5/i3/Pentium/Celeron (LGA1150)
- DDR3 3000(OC)/2800(OC)/1600
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the L337 Gaming Z87H3-A3X (V1.0)
| Brand | L337 Gaming |
|---|---|
| Model | Z87H3-A3X (V1.0) |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | 4th Generation Intel Core i7/i5/i3/Pentium/Celeron (LGA1150) |
| Chipset | Intel Z87 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 3000(OC)/2800(OC)/2667(OC)/2400(OC)/2133(OC)/1800(OC)/1600 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 4 x PCI Express x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel I217-V |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x DVI-D 1 x D-Sub |
| HDMI | 1 x HDMI |
| USB 3.0 | 6 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA 6Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply connector 1 x 8-pin ATX 12V Power Connector 1 x 3-pin PWR_FAN connector 1 x Front Panel switch/LED header 1 x Front panel audio header 1 x Speaker header Support EZ charger (gray color) 1 x S/PDIF out header 1 x CLR_CMOS header 1 x Serial port header (COM) 1 x Parallel port header (LPT) 1 x TPM header 1 x Chassis intrusion header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.7" |
| Power Pin | 24 Pin |
| Features | Supports 3 independent displays 6 Phase Power Design Supports Intel K Series unlock CPU Applied 100% Solid capacitor design to maximize component reliability ECS Durathon Technology ensure the stability, reliability and performance of system.(Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs) ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment ECS MIB X - A friendly interface for overclocking, especially for gamer Supports DirectX 11.1 to enhance graphical performance Supports NVIDIA SLI Technology to Intelligently scale graphics performance by combining multiple NVIDIA graphics Supports ATI CrossFireX to expand your system's graphics capabilities. Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology,Insider Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function Supports Sound Blaster Cinema technology to deliver cinema-quality picture and sound to home environments Supports Intel Smart Response, Smart Connect and Rapid Start Technology Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9,Muzee, Google Chrome, Magix with trial version ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF |
|---|
| First Listed on Newegg | November 20, 2013 |
|---|
