Item#: N82E16813135374

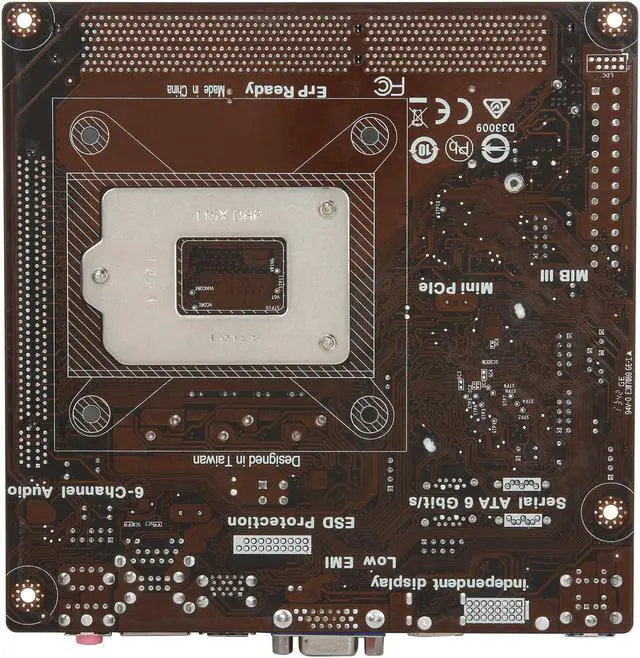

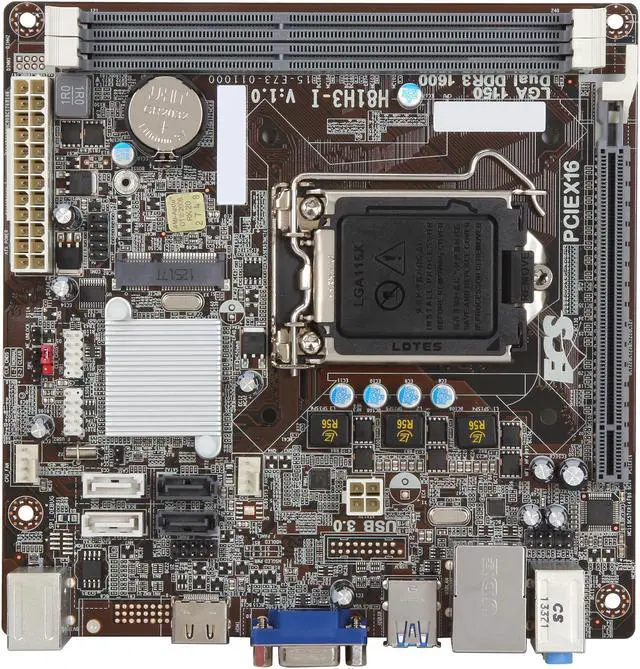

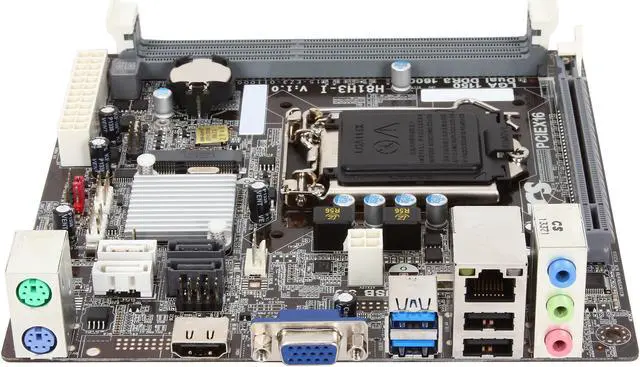

ECS H81H3-I/HDMI (V1.0) LGA 1150 Intel H81 HDMI SATA 6Gb/s USB 3.0 Mini ITX Intel Motherboard

  • Intel H81
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • DDR3 1600/1333
ICON Loading...

Learn more about the ECS (EliteGroup) H81H3-I/HDMI (V1.0)

Model

Brand
ECS
Model
H81H3-I/HDMI (V1.0)

Supported CPU

CPU Socket Type
LGA 1150
CPU Type
Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Chipsets

Chipset
Intel H81

Memory

Number of Memory Slots
2×240pin
Memory Standard
DDR3 1600/1333
Maximum Memory Supported
16GB
Channel Supported
Dual Channel

Expansion Slots

PCI Express 2.0 x16
1
Mini Card Slots
1 x Mini PCIe x1

Storage Devices

SATA 3Gb/s
2
SATA 6Gb/s
2 x SATA 6Gb/s

Onboard Video

Onboard Video Chipset
Supported only by CPU with integrated graphic

Onboard Audio

Audio Chipset
VIA VT1705
Audio Channels
6 Channels

Onboard LAN

LAN Chipset
Realtek 8111G
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x D-Sub
HDMI
1 x HDMI
USB 3.0
2 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports

Internal I/O Connectors

Onboard USB
2 x USB 3.0 + 4 x USB 2.0
Other Connectors
1 x 24-pin ATX Power Supply connector
1 x 4-pin 12V Power connector
1 x 4-pin CPU_FAN connector with smart fan
1 x 4-pin SYS_FAN connector
1 x Front panel audio header
1 x Speaker header
1 x CLR_CMOS header
1 x Serial port header (COM)
1 x ME_UNLOCK header
1 x Chassis intrusion header

Physical Spec

Form Factor
Mini ITX
Dimensions
6.7" x 6.7"
Power Pin
24 Pin

Features

Features
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system

ECS Durathon Technology ensure the stability, reliability and performance of system. (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs)

ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan

ECS MIB III - A friendly interface for overclocking

Microsoft Windows 8 Certified

Intel VRD 12.5 Ready

Supports DirectX 11.1 to enhance graphical performance

Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function

ECS Intelligent EZ Utility : eBLU, eDLU, eSF

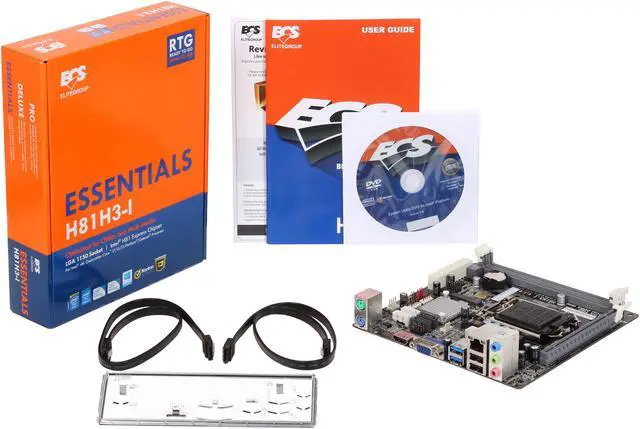

Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9,Muzee with trial version

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the ECS (EliteGroup) H81H3-I/HDMI (V1.0)

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Anonymous
  • 2/22/2014 12:15:07 AM
  • Tech Level: Somewhat Low
  • Ownership: 1 month to 1 year

4 out of 5 eggsUpdate to my review

Pros: An update to my earlier review - The sleep mode is a working fine now. It was my own fault for not setting the pc to wake up from sleep mode from the keyboard in the bios.

Cons: see my last review

Did you find this review helpful? Yes No

  • Anonymous
  • 2/6/2014 7:21:26 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month

3 out of 5 eggsCheap, but...

Pros: It's cheap, and works.

Cons: When windows goes to sleep with c6/c7 enabled or disabled, it acts like hibernate mode. I have to press the power button to get it up and running again. This didn't happen with the Asrock h81-itx board I tested. This could be the board, or some hard to find setting I need to change.

The sata ports wouldn't recognize my drives right away, I had to change them around until they finally worked.

The BIOS isn't quite as smooth as other boards. I had to mouse over the options and click several times to get them to respond. Also - no Chassis fan control in bios.

Other Thoughts: This board does just what it's name implies- only the essentials.

No onboard USB 3.0 port.

Manufacturer Response:

We are sorry to hear about the issue you have experienced with your motherboard and we thank you for your feedback. It is appreciated. We need your feedback in order to improve the quality of our products and service.

For the resume function, please check the settings in your BIOS, under Advanced-->Power Management Setup. Ensure either Resume by USB or PS2, depending on the type of keyboard or mouse used, is set to enabled. Also ensure that the EUP Function is set to disabled.

The Intel H81 express chipset can support up to two USB 3.0. The ECS H81H3-I does have two USB 3.0 ports on the rear panel. The two USB 3.0 ports are designated by the standard blue coloring.

If you have any further questions or concerns, please feel free to contact us.

I or any of my team members here at technical support will be able to help you.
Our hours are Mon-Fri 9am-6pm PST.

Thank you,
Andy
Phone# 1-510-456-9836
Email: andy_K@ecsusa.com

Did you find this review helpful? Yes No
