Currently Unavailable
-
-
-
Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 65%
- 4
-
- 17%
- 3
-
- 7%
- 2
-
- 4%
- 1
-
- 7%
| Product Rating: |

|
| Total Reviews: |
125 |
Great Motherboard
- Pros: Great board overclocks my Q6600 with ease
- Cons: none
- Other Thoughts: Intel Q6600 overclocked to 3.0 8GB ram 64GB SSD 2 750GB WD Black in Raid 0 300GB sata 9800 GTX+
Nice
- Pros: Its a great motherboard with decent features... can run Osx 86, runs Ubuntu great... and Xp works fine
- Cons: I think it might be a little behind the times, it doesn't have the pci express x16 2.0 so you might run into some problems with that, and no sli.
I had a problem with a bios update and had to rma, When i got it back wouldn't dual boot windows/osx86 anymore :(
- Other Thoughts: Runs great, i have a e7200, 8600gt runs older games fine.
Great while they last
- Pros: Great Price point, rock solid while it works, supports quad cores.....
- Cons: North Bridge heatsink is very tall and only a passive cooler. It runs hot and might interfere with large after market heatsinks.
I had one of these in my system for about a year and it was running perfectly fine. So good I bought one for another build I was doing. Two months after I delivered the second rig, the board died. I tested it with my identical board and RMA'ed back to DFI. Got that board back and everything was fine. Then mine died. Nothing changed in the system. I reset the BIOS, swapped RAM, PSU, video card, and processor and the thing will not POST.
- Other Thoughts: Screw it, I'm done with DFI. I bought a Gigabyte board to replace it. DFI's lanparty boards look nice but are WAY to expensive, and seeing how their middle of the road board (this one) isn't reliable I don't see me buying from them again.
| Model |
| Brand |
DFI |
| Model |

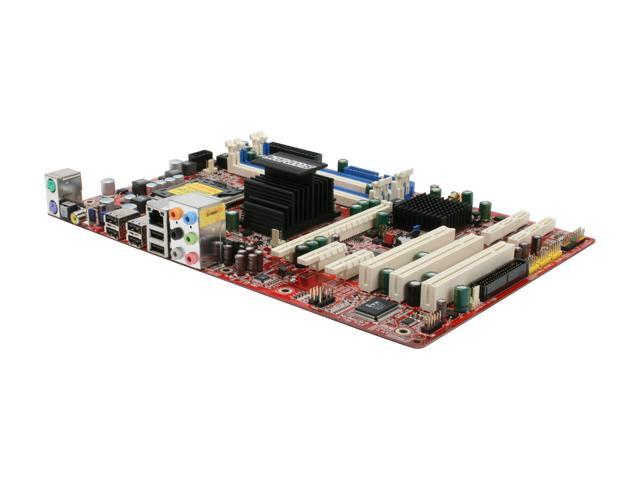

BloodIron P35-T2RL |
| Supported CPU |
| CPU Socket Type |
LGA 775 |
| CPU Type |
Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB |
1333/1066MHz |
| Supported CPU Technologies |
Hyper-Threading Technology |
| Chipsets |
| North Bridge |
Intel P35 |
| South Bridge |
Intel ICH9R |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 800 |
| Maximum Memory Supported |
8GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express x16 |
1 |
| PCI Express x1 |
2 |
| PCI Slots |
3 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| SATA 3Gb/s |
6 |
| SATA RAID |
0/1/0+1/5 |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |
Realtek ALC885 |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
Marvell 88E8053 |
| Max LAN Speed |
10/100/1000Mbps |
| Rear Panel Ports |
| PS/2 |
2 |
| USB 1.1/2.0 |
6 x USB 2.0 |
| S/PDIF Out |
1 x Optical, 1 x Coaxial |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
3 connectors for 6 x USB 2.0 ports |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 9.6" |
| Power Pin |
24 Pin |
| Packaging |
| Package Contents |
BloodIron P35-T2RL
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable |
|
|
Reviewed By: on 3/28/2009
Tech Level: high - Ownership: 1 month to 1 year
