Item#:N82E16813136054

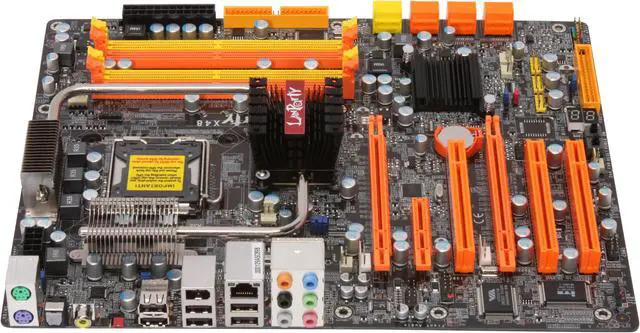

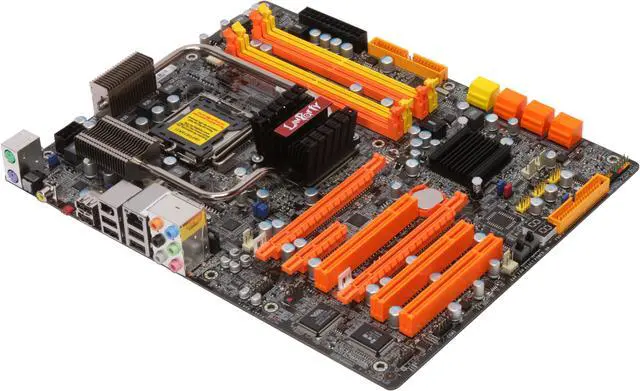

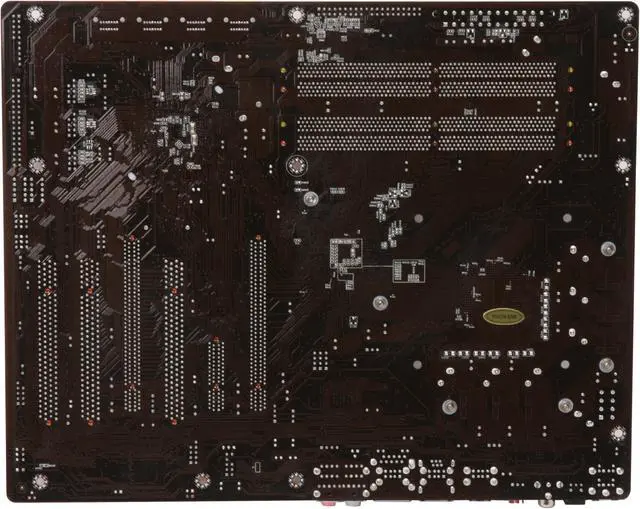

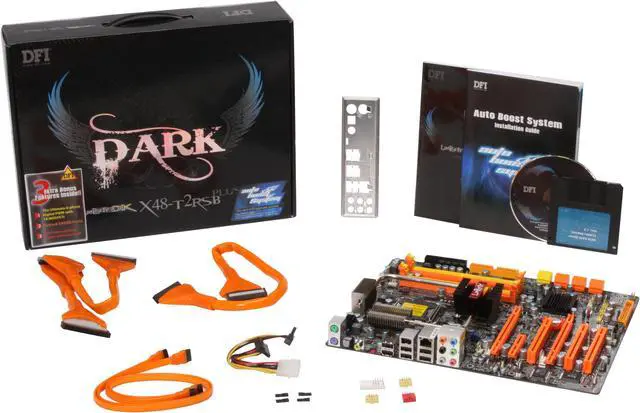

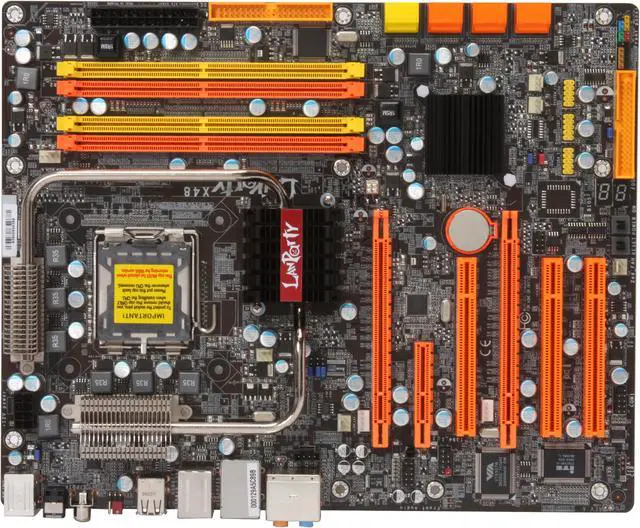

DFI LP DK X48-T2RSB PLUS LGA 775 Intel X48 ATX Intel Motherboard - Retail

DFI LP DK X48-T2RSB PLUS ATX Intel Motherboard - Retail

Image Viewer

$169.99

Special Offers: No interest for up to 12 months. Plus, New Preferred Account Customers: Save $20 off $100.
Subject to credit approval. Details; No Payments for up to 6 months. Minimum purchase required.
Subject to credit approval. Details

Similar Items

Not the product you're looking for? We can make some suggestions to help you decide on a product that fits your needs.
view similar products

Combo Deals

Acronis True Image Home 2009 OEM - OEM

DFI LP DK X48-T2RSB PLUS LGA 775 Intel X48 ATX Intel Motherboard - Retail

Original Price: $194.98

Discount: -$17.00

Combo Price: $177.98

Manufacturer Contact Info

Return Policies

This item is covered by Newegg.com's Standard Return Policy.

Return for refund within: 30 days
Return for replacement within: 30 days
Restocking Fee: Yes

Review Summary (read all 49 Reviews, write a review)

66%

16%

14%

Product Rating:
Total Reviews:	49

BIOS ISSUES

Reviewed By: ST on 10/9/2009

Tech Level: high - Ownership: less than 1 day

This user purchased this item from Newegg

Pros: Good features for a mid-range board.

Cons: This board was bought to replace an identical board in which the onboard SATA controller had failed. However, first day of powering up this board it has issues. The onboard speaker just beeps constantly at time as if the memory is counting fast, then is shuts off. Also, while in BIOS the board all of a sudden shuts off.

Other Thoughts: Seems to be a hit and miss that you'll get a good board. You have to take your chances. DFI has definitely gone down in quality control. This makes the third DFI board which has problems in the past six months, and two of those were DOA!

0 out of 1 people found this review helpful. Did you? Yes

DONT BUY !!!

Reviewed By: Peaved in PA on 9/26/2009

Tech Level: high - Ownership: 1 month to 1 year

This user purchased this item from Newegg

Pros: With this board there are none.

Cons: Thos board has been replaced once for cmos bios issues and replacement board has the same issues.
Lets see if theis replacement will work.

Other Thoughts: Board informs me at start up that new cpu is detected.
Locks up and have to manually clear cmos in order for it to boot properly.
Cannot set cmos settings dues to failure and lock ups.

Board looks good if you want to frame it!

NO MORE DFI PRODUCTS FOR ME !!!!

0 out of 1 people found this review helpful. Did you? Yes

Great Stable Motherboard

Reviewed By: OC Man on 9/8/2009

Tech Level: somewhat high - Ownership: 1 month to 1 year

Pros: This mid range motherboard is definitely high range in stability. Bought a X48 T2RSB Plus from newegg.ca, got a E5200 with 4 GB Viper 800 Extreme and took 'er to 4.0 GHZ Stable right away...
With an Arctic 7 Freezer Pro this build stays cool at 26 idle and 47 under full load... Gives me a Windows Experience rating of 5.3 (only 5.3 because I used a 3650 instead of something better)... Really stable with Intel Dual Cores...also tried a E2160 Conroe in this thing and had it OC'd to 3.2 GHZ 100% stable around the clock... DFI is definitely very good at what they do... HD Audio very good - 192khz and Northbridge cooling very satisfactory...CMOS clear jumpers always ensure you get back in once an OC goes bad...
Had it for a while and board has never once failed...Overall a must have for anyone who wants to do some serious overclocking...

Cons: Lan is a Little bit finicky - didn't kick in until I reinstalled Windows...
Other than that absolutely perfect...

Other Thoughts: I originally intended this 2nd build with the T2RSB Plus to be a "hobby system" - but it's so good with chips and stable that it is now becoming my main system..... Excellent.....

Did you find this review helpful? Yes

Model
Brand	DFI
Model	LP DK X48-T2RSB PLUS
Supported CPU
CPU Socket Type	LGA 775
CPU Type	Core 2 Quad / Core 2 Duo
FSB	1600/1333MHz
Chipsets
North Bridge	Intel X48
South Bridge	Intel ICH9R
Memory
Number of Memory Slots	4×240pin
Memory Standard	DDR2 1066/1200(O.C)
Maximum Memory Supported	8GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 2.0 x16	2
PCI Express x4	1
PCI Slots	3
Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA 3Gb/s	6
SATA RAID	0/1/0+1/5
Additional RAID Controller	JMicron JMB363 Supports 2 SATA 3Gb/s devices (RAID 0, 1)
Onboard Video
Onboard Video Chipset	None
Onboard Audio
Audio Chipset	Realtek ALC885
Audio Channels	8 Channels
Onboard LAN
LAN Chipset	Marvell 88E8053
Max LAN Speed	10/100/1000Mbps
Rear Panel Ports
PS/2	2
USB 1.1/2.0	6 x USB 2.0
IEEE 1394	1 x IEEE 1394a
S/PDIF Out	1 x Optical, 1 x Coaxial
Audio Ports	6 Ports
Onboard USB
Onboard USB	6 x USB 2.0
Onboard 1394
Onboard 1394	1x 1394a
Physical Spec
Form Factor	ATX
Dimensions	12.0" x 9.64"
Power Pin	24 Pin
