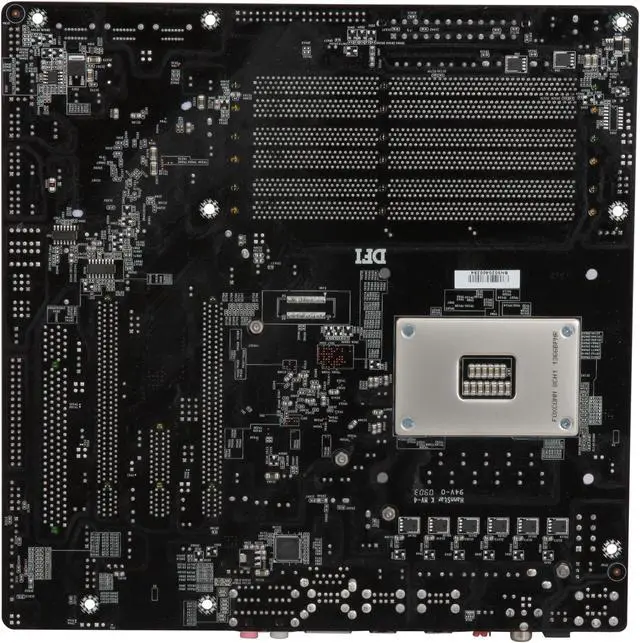

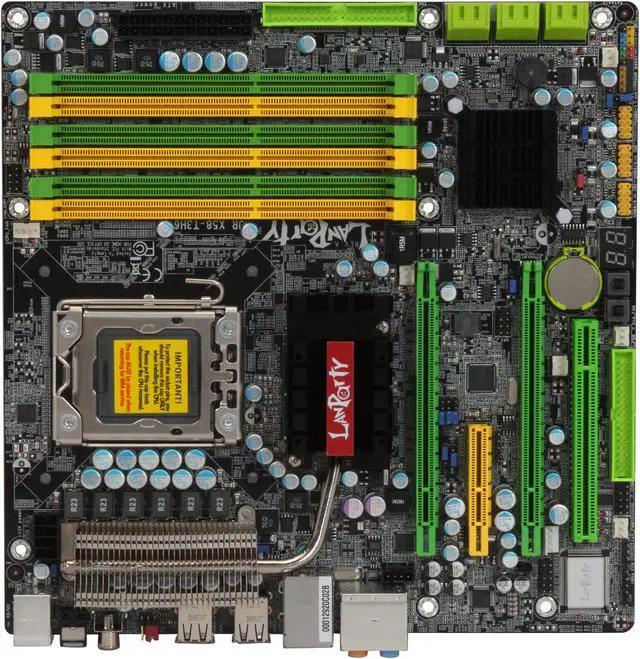

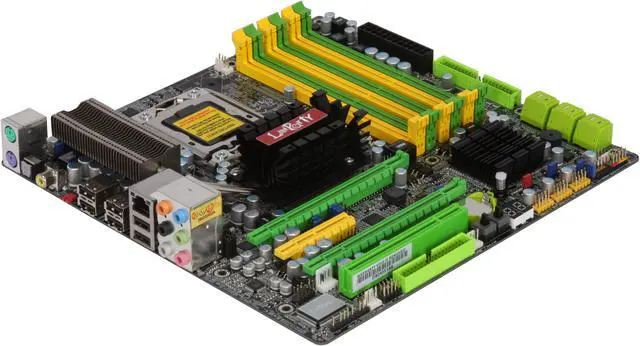

DFI LANPARTY JR X58-T3H6 LGA 1366 Intel X58 Micro ATX Intel Motherboard
- Intel X58
- Core i7 (LGA1366)
- DDR3 1333
Specs
Reviews (58)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the DFI LANPARTY JR X58-T3H6
| Brand | DFI |
|---|---|
| Model | LANPARTY JR X58-T3H6 |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Core i7 (LGA1366) |
| FSB | QPI Supports 6.4 and 4.8GT/s |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel X58 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 6x240pin |
|---|---|
| Memory Standard | DDR3 1333 |
| Maximum Memory Supported | 24GB |
| Channel Supported | Triple Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Audio Chipset | Realtek ALC889 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8053 |
|---|---|
| Max LAN Speed | 1Gbps |

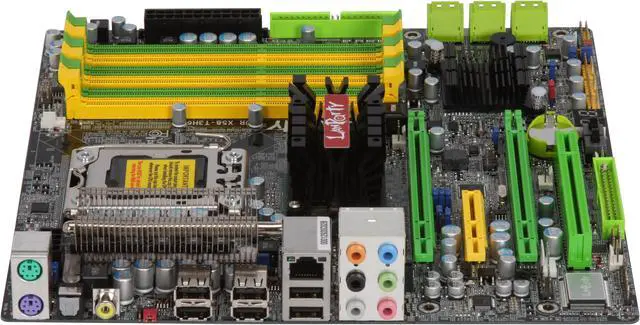

| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 3 connectors for 6 additional external USB 2.0 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.64" x 9.64" |
| Power Pin | 24 Pin |
| Features | ACPI and OS Directed Power Management ACPI STR (Suspend to RAM) function Wake-On-PS/2 Keyboard/Mouse Wake-On-USB Keyboard/Mouse Wake-On-LAN Wake-On-Ring RTC timer to power-on the system AC power failure recovery Monitors CPU/system/Northbridge temperature and overheat alarm Monitors Vcore/Vdimm/Vnb/VCC5/12V/V5sb/Vbat voltages Monitors the speed of the cooling fans CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat |
|---|

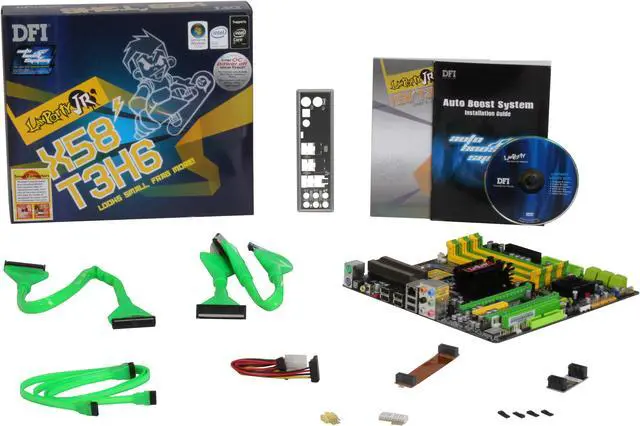

| Package Contents | LANPARTY JR X58-T3H6 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | February 03, 2009 |
|---|
