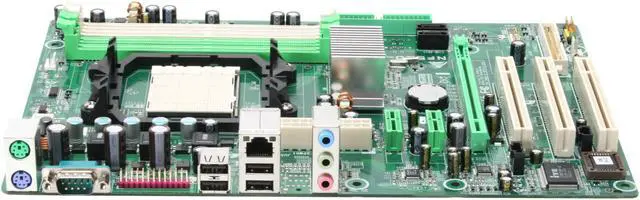

BIOSTAR NF520-A2 AM2 NVIDIA nForce 520 MCP ATX AMD Motherboard

(164) Write a Review
  • NVIDIA nForce 520 MCP
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (164)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Biostar NF520-A2

Model
Brand BIOSTAR
Model NF520-A2
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset NVIDIA nForce 520 MCP
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC861VD
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8201CL PHY
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 11.6" x 7.9"
Power Pin 24 Pin
Packaging
Package Contents NF520-A2
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available May 31, 2007
