Item#: N82E16813138112

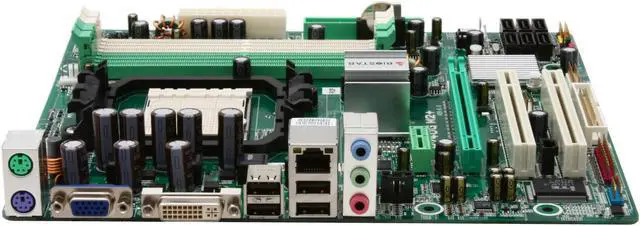

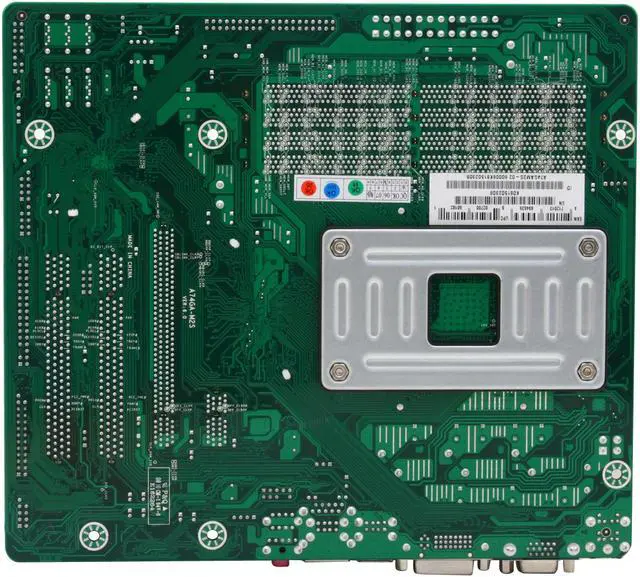

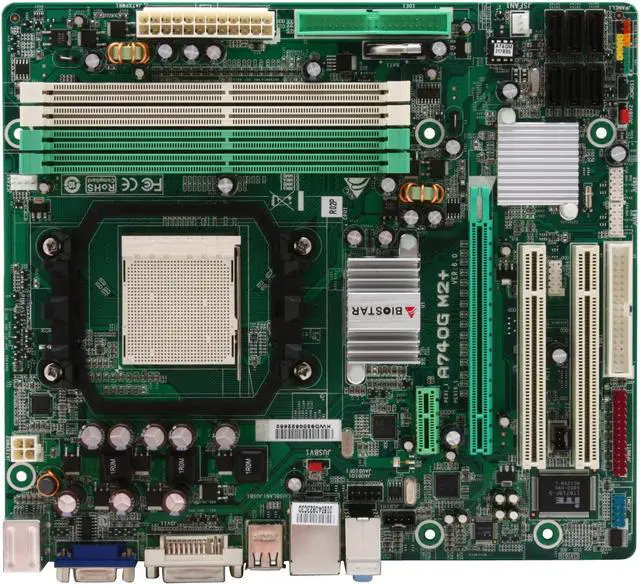

BIOSTAR A740G M2+ AM2+/AM2 AMD 740G Micro ATX AMD Motherboard

  • AMD 740G
  • Phenom / Athlon 64 X2 / Athlon 64 / Sempron
  • DDR2 1066
ICON Loading...

Learn more about the Biostar A740G M2+


A740G M2+

Supported CPU

CPU Socket Type
CPU Type
Phenom / Athlon 64 X2 / Athlon 64 / Sempron
2000MHz Hyper Transport (4000 MT/s)


AMD 740G
South Bridge


Number of Memory Slots
Memory Standard
DDR2 1066
Maximum Memory Supported
Channel Supported
Dual Channel

Expansion Slots

PCI Express x16
PCI Express x1
PCI Slots

Storage Devices

1 x ATA100 2 Dev. Max
SATA 3Gb/s

Onboard Video

Onboard Video Chipset
ATI Radeon 2100

Onboard Audio

Audio Chipset
Realtek ALC662
Audio Channels
6 Channels

Onboard LAN

LAN Chipset
Realtek 8101E
Max LAN Speed

Rear Panel Ports

Video Ports
D-Sub + DVI
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports

Internal I/O Connectors

Onboard USB
3 x USB Header

Physical Spec

Form Factor
Micro ATX
9.6" x 8.5"
Power Pin
24 Pin

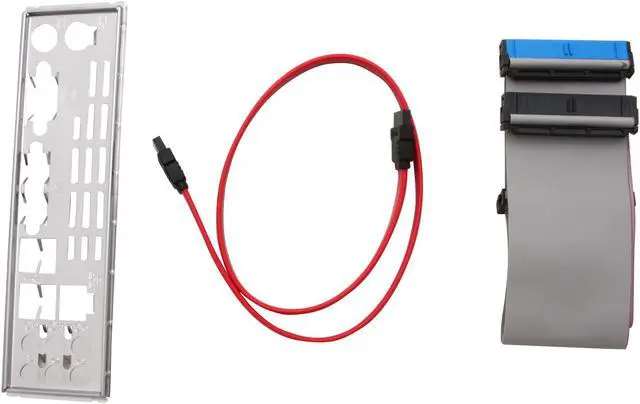

Package Contents
A740G M2+
Driver Disk
User Manual
Rear I/O Panel Shield
SATA Cable

Manufacturer Warranty

3 years limited
3 years limited

Quick Info


  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years

Customer Reviews of the Biostar A740G M2+

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Anthony F.
  • 3/23/2013 3:54:30 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

5 out of 5 eggsGood Board

Pros: Supports up to 16GBs of DDR2 800, Has 6 SATA slots, Supports Quad core CPUs, Plays most games even up to date with no problems, runs well even after more then 3+ years now.

Cons: My main dislike about this board was the lack of PCI slots which in most cases I don't buy boards with less this 5-6 slots on them which I mainly used for adding more Ethernet cards or 5-6 slot USB 2.0 cards.

Other Thoughts: I mainly bought this board as it came with a core 2 quad AMD 9550 CPU & I thought I couldn't go wrong being they were both retail box. Little did I know the CPU that came with it had missing pins & both the shop & AMD refused to replace them. I ended up putting an X2 cpu on it which worked great back when I was using it. Now its in my roommates old eMachine which now runs like a real computer should.

Did you find this review helpful? Yes No

  • Mr. W.
  • 4/27/2009 7:59:36 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year

3 out of 5 eggsGaming

Pros: I bought this board because it can support up to 16GBs of memory, its upgradeable for future upgrades in the since I doubt anyone will need 16GBs of memory any time soon. Works great for gaming on Windows XP Pro (32-bit). I am running an AMD 9550 Quad on mine no problems so far.

Cons: Wish it had more PCI slots, and wish I bought mine on NewEgg lol got both my board & CPU in a bundle for 209.00 free shipping.

0 out of 3 people found this review helpful. Did you? Yes No

  • Anonymous
  • 4/10/2009 3:24:58 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week

5 out of 5 eggs

Pros: Nice features for such a cheap board...6 sata, 4 DIMM slots, 1066 ram support with am2+, pcie X1 and X16, 3 USB headers for up to 6 external ports.

Cons: Yes it can only support a 95w cpu, but who is going to be running more than a 95w CPU with a $60 board? Are you serious? Why the complaining? Who runs less than *atleast* a 780G board with a phenom II?

Other Thoughts: Bought this locally used for $40, great deal for these features. Using it to upgrade my brothers PC, I have an ASROCK 780G board with an AM3 710 phenom II CPU and love them both, but the Bios with the Biostar's boards are easier to navigate IMO.
With this board I'm putting a 4600+ dual core and 2X2gb of ddr2-800 ram in it. Should make for a decently fast system for really cheap.

1 out of 1 people found this review helpful. Did you? Yes No

  • Michael B.
  • 2/23/2009 4:07:13 PM
  • Tech Level: Average
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsnot good

Pros: none now

Cons: posted January 28, 2009 05:24 AM
Biostar Implements 95Watt CPU Lock-out!

In an effort to curtail Power FET failures on certain Motherboards, Biostar has implemented an above 95Watt Lock-out in latest BIOS of those motherboards.

What this means is that if you have a CPU that has a higher then 95Watt Power rating, and flash one of the newer BIOS, the system will shutdown after the CPU is detected. There appears to be no easy way to recover and flash back to an older BIOS once the BIOS has been flashed, other the the 2 methods listed below.

To date, the following Motherboards have the 95Watt Lock-out:

TA780G M2+ starting with the A78GM114.BST BIOS.

TA770 A2+SE starting with the A78BA114.BST BIOS.

TA760G M2+ starting with the A76GM113.BST BIOS.

A740 M2+ starting with the A74GMB18.BFS BIOS.

TF720 A2+ starting with the N78VA114.BST BIOS.


Other Thoughts: none

3 out of 6 people found this review helpful. Did you? Yes No

  • Robert R.
  • 2/18/2009 3:31:21 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsFun Board

Pros: A good MB for the money. Fit perfectly in an old beater case I was given by a friend. Case had all working components though. Replaced the existing motherboard and CPU and away we went. Added a front case fan for extra air just in case it ran hot. It has not. Easy to work with.

Cons: Would like a little more flexible BIOS but this one was adequate for the job.

Other Thoughts: Overclocked the CPU from 2.8 to 3.29 gig according to CPU-Z. Still running very cool on the oem cpu fan.

1 out of 1 people found this review helpful. Did you? Yes No

  • Josh S.
  • 2/16/2009 7:06:41 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

2 out of 5 eggsFind another board

Pros: It sorta works

Cons: Board does not support full wattage range of AM2+ processors. This is not advertised anywhere. Find a board that complies with specification.

Other Thoughts: the f10 key is your friend.

0 out of 2 people found this review helpful. Did you? Yes No

  • Anonymous
  • 2/14/2009 8:05:32 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsGood

Pros: Good motherboard. My Gskill 4GB RAM was correctly recognized even though it wasn't on the "approved" memory list from Biostar. I put a huge CPU cooler on (Thermaltake TMG A3) and it fit just fine with the room to spare - so a decent amout of room for a Micro ATX MB

Cons: It had trouble recognizing my IDE hard drive and SATA DVD burner - both were hooked up correctly, but after a some tinkering, the MB noticed them and work fine now. Onboard NIC is only 10/100Mbps, but can't tell the difference between 10/100/1000Mbps anyway.

Other Thoughts: On some documents it says it supports 16 MB ram, but on others say only 8 MB so not sure where the confusion is. I don't intend to put more than 8 so no biggie to me. I would buy again.

1 out of 1 people found this review helpful. Did you? Yes No

  • David A.
  • 2/10/2009 12:17:35 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsProud multiple board owner

Pros: Let me start by saying that I have built at least 5 machines over the past year with this board. I have not had a single issue with any of them. I am actually getting ready to buy another one right now. The price is right.

OK Pros - plenty of USB ports on front and back - BIOS works out of the box on a range of processors - issue free so far

Cons: None

Other Thoughts: Quality board at a decent price

0 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 2/10/2009 1:01:19 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsNot the Best

Pros: -Pretty good video card for being on-board for this price, runs well no problems yet!

Cons: Will not support over 95W processors. I have a Phenom 9850 BE Processor that runs at 125W and the computer at boot displays an error "Processor too high wattage" and shuts off. Have to press F10 everytime and then it boots correctly.

Other Thoughts: Not the best board to over clock. If you want a good biostar overclocking board i would recommend the T series boards.

0 out of 2 people found this review helpful. Did you? Yes No

  • Charles S.
  • 2/9/2009 9:31:28 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGood board

Pros: Bought this for a small office mail, web, and file server. Stuck it with an AMD Athlon X2 4850e 2.5GHz 2 x 512KB L2 Cache Socket AM2 45W Dual-Core Processor, and 4 gigs of ram.

Cons: None so far. The video is a bit weak, but I am running it as a headless server most of the time, so what do I care. You will want a video card for this as a desktop.

Other Thoughts: running pclinuxos 2008, with a 2.26 kernel. Had trouble detecting certain SATA drives with earlier kernels, but I believe that was an issue with pclos kernel not the hardware so much. There are some known flaky issues with certain chipsets and older kernels before 2.24. Now running three drives and raid 1. Solid as could be. Cruzes along with something around 20% of resources used, and something like 50% when under stress such as running file snapshots.

0 out of 1 people found this review helpful. Did you? Yes No
