Item#: N82E16813138156R

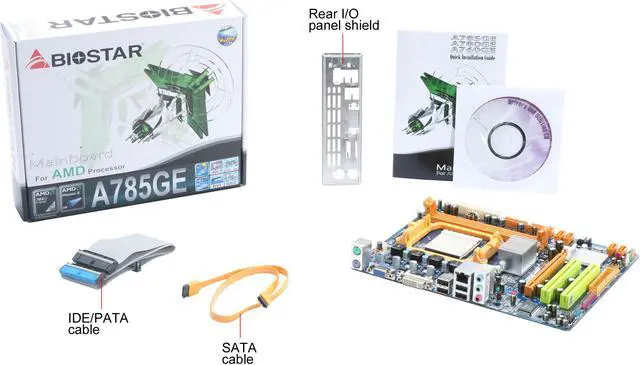

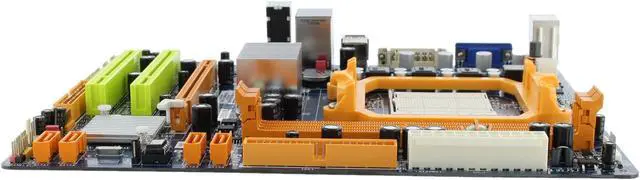

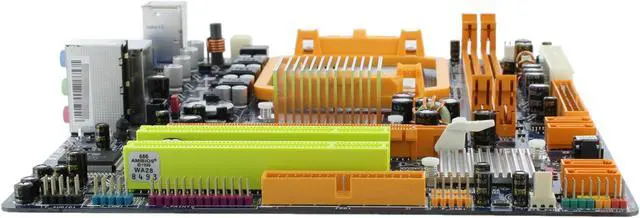

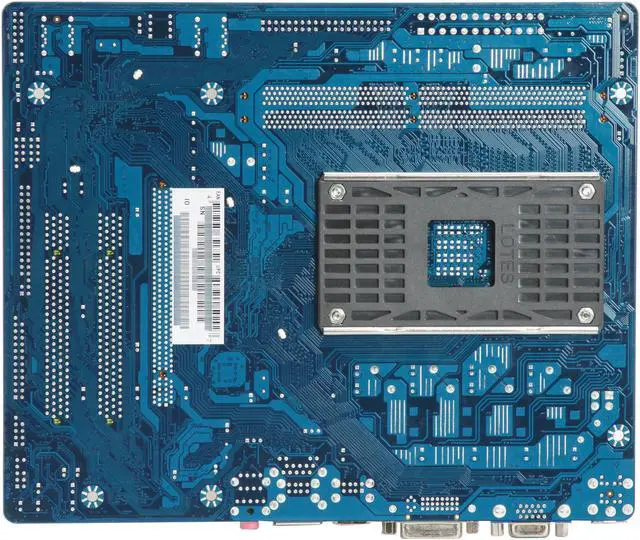

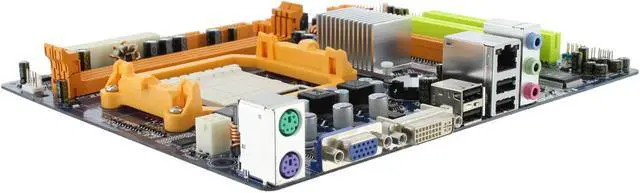

BIOSTAR A785GE AM3/AM2+ AMD 785G Micro ATX AMD Motherboard Images from retail item, box contents may vary.

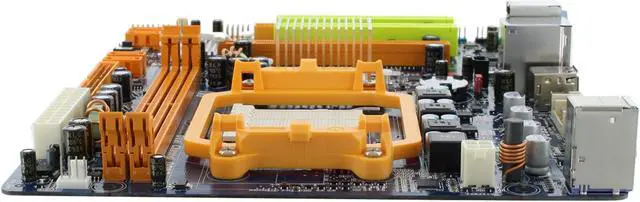

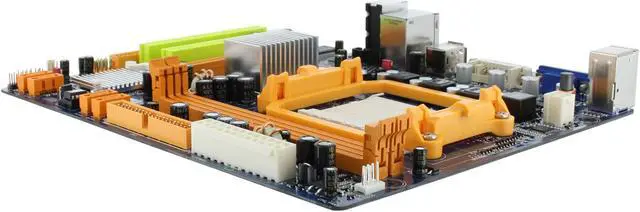

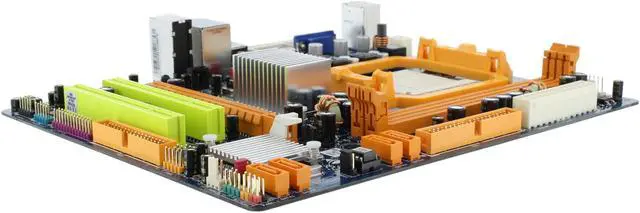

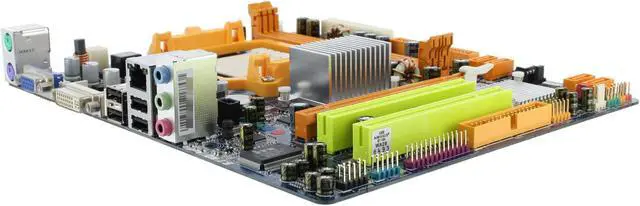

BIOSTAR A785GE AM3/AM2+ AMD 785G Micro ATX AMD Motherboard

OPEN BOXnewegg

Open Box : Newegg only guarantees your receipt of the Open Box product with the purchase of this item. Any accessories MAY OR MAY NOT be included. Newegg will NOT send you any missing accessories, even if it is required to use all of the item’s functions.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • AMD 785G
  • Phenom II / Phenom / Athlon II / Athlon64 /Sempron
  • (Maximum CPU TDP (Thermal Design Power) : 95Watt)
  • DDR2 533/667/800/1066(1066 by AM2+/AM3 CPU)

LOADING... LOADING...
  • Specifications
  • Warranty & Returns

Learn more about the Biostar A785GE

Model

|
Brand
BIOSTAR
Model
A785GE

Supported CPU

|
CPU Socket Type
AM3/AM2+
CPU Type
Phenom II / Phenom / Athlon II / Athlon64 /Sempron
(Maximum CPU TDP (Thermal Design Power) : 95Watt)
FSB
Support HT3.0 up to 5.2GT/s (Depends on AMD CPU Specification)

Chipsets

|
Chipset
AMD 785G
South Bridge
AMD SB710

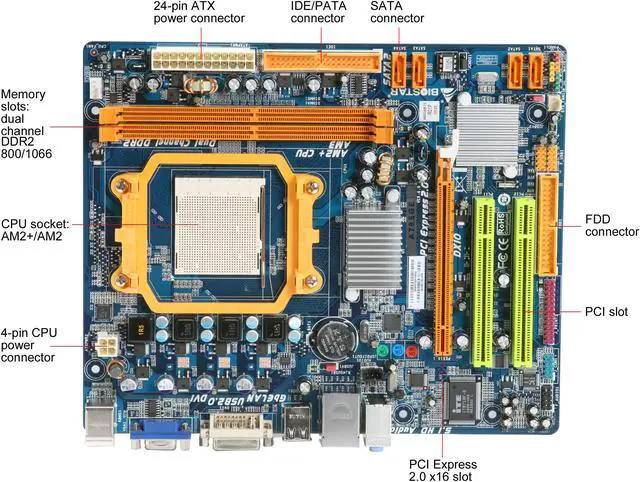

Memory

|
Number of Memory Slots
2×240pin
Memory Standard
DDR2 533/667/800/1066(1066 by AM2+/AM3 CPU)
Maximum Memory Supported
8GB
Channel Supported
Dual Channel

Expansion Slots

|
PCI Express 2.0 x16
1 x PCI Express 2.0 x16
PCI Express x16
1
PCI Slots
2 x PCI Slots

Storage Devices

|
PATA
1 x ATA133 2 Dev. Max
SATA 3Gb/s
4 x SATA 3Gb/s
SATA RAID
0/1/10

Onboard Video

|
Onboard Video Chipset
ATI Radeon HD 4200

Onboard Audio

|
Audio Chipset
Realtek ALC662
Audio Channels
6 Channels

Onboard LAN

|
LAN Chipset
Realtek 8111DL
Max LAN Speed
10/100/1000Mbps

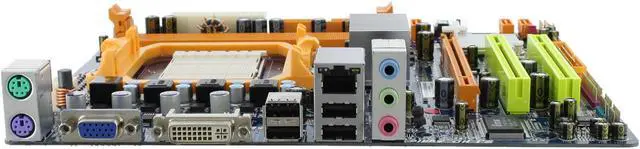

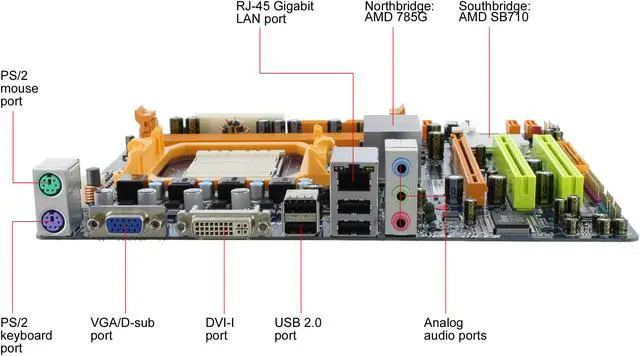

Rear Panel Ports

|
PS/2
2
Video Ports
D-Sub + DVI
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports

Internal I/O Connectors

|
Onboard USB
2 x USB header (support 4 ports)

Physical Spec

|
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 7.9"
Power Pin
24 Pin

Features

|
Features
AMD Cool ‘n’ Quiet Technology
Low ESR polymer solid capacitor designation for CPU power supply up to 95W
X.D.C Solid Caps
BIO-Flash, BIO-Relife2
BIOScreen
