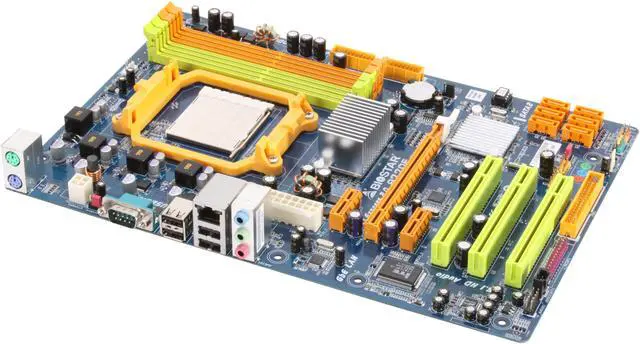

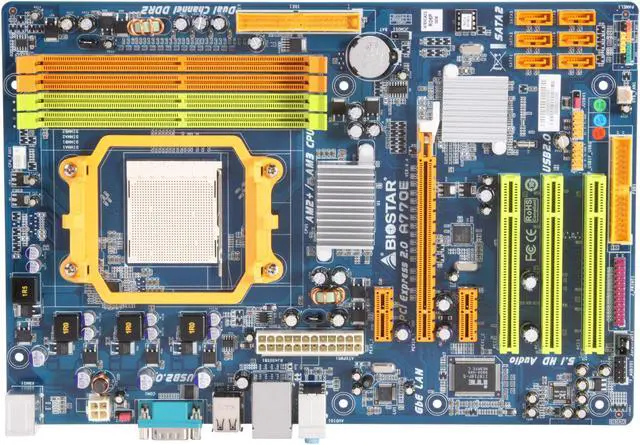

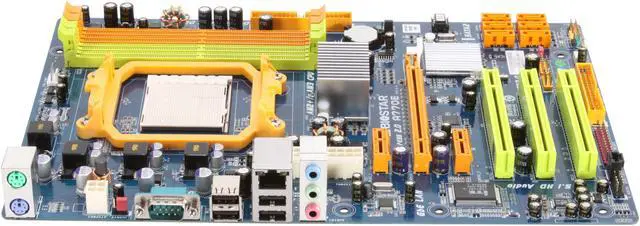

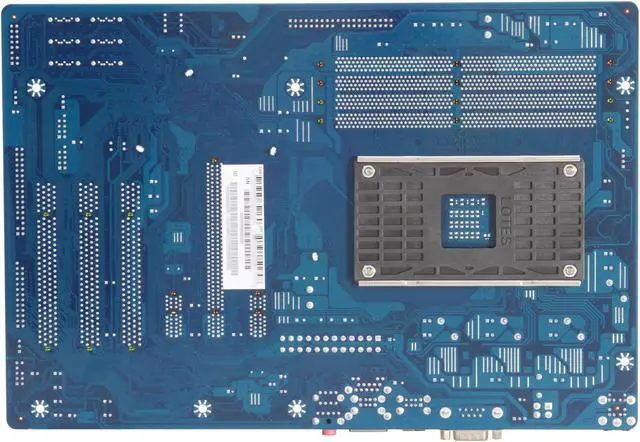

BIOSTAR A770E AM3/AM2+/AM2 AMD 770 ATX AMD Motherboard
- AMD 770
- AMD Phenom II X4 Processor AMD Phenom II X3 Processor AMD Phenom II X2 Processor AMD Phenom X4 Processor AMD Phenom X3 Processor AMD Athlon II X2 Processor AMD Athlon X2 Dual-Core Processor AMD Athlon 64 X2 Dual-Core Processor AMD Athlon 64 FX Processor AMD Athlon 64 Processor AMD Sempron Processor Maximum CPU TDP (Thermal Design Power): 95Watt
- DDR2 533/667/800/1066(1066 by AM2+/AM3 CPU)
Specs
Reviews (87)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar A770E
| Brand | BIOSTAR |
|---|---|
| Model | A770E |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | AMD Phenom II X4 Processor AMD Phenom II X3 Processor AMD Phenom II X2 Processor AMD Phenom X4 Processor AMD Phenom X3 Processor AMD Athlon II X2 Processor AMD Athlon X2 Dual-Core Processor AMD Athlon 64 X2 Dual-Core Processor AMD Athlon 64 FX Processor AMD Athlon 64 Processor AMD Sempron Processor Maximum CPU TDP (Thermal Design Power): 95Watt |
| FSB | 2600 MHz |
| Chipset | AMD 770 |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 533/667/800/1066(1066 by AM2+/AM3 CPU) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x COM (Serial Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8" |
| Power Pin | 24 Pin |

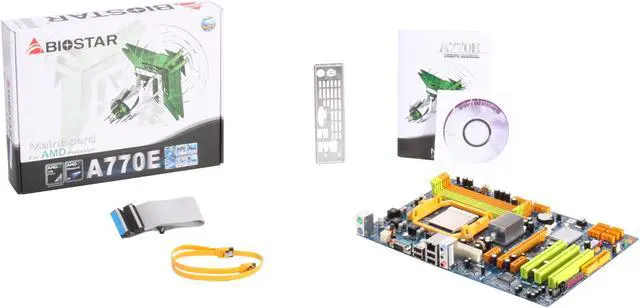

| Package Contents | A770E 1 x IDE Cable 1 x SATA Cable 1 x I/O Shield 1 x CD Driver 1 x User Manual |
|---|
| First Listed on Newegg | November 13, 2009 |
|---|
