Item#: N82E16813138199

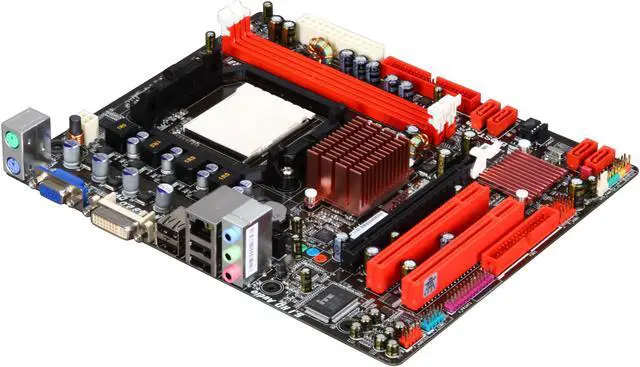

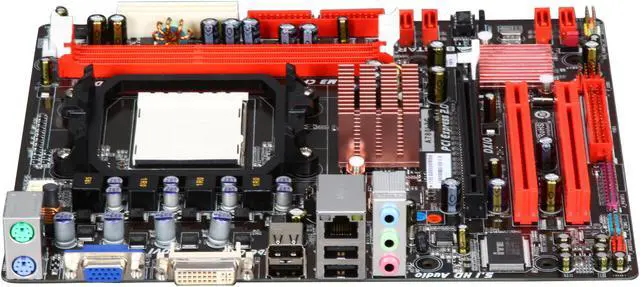

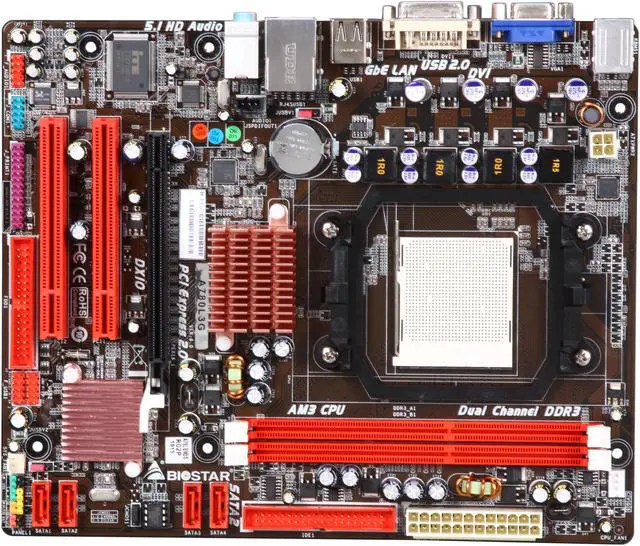

BIOSTAR A780L3G AM3 AMD 760G Micro ATX AMD Motherboard

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • AMD 760G
  • Phenom II / Athlon II / Sempron
  • DDR3 1333/1066/800

LOADING... LOADING...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the Biostar A780L3G

Model

|
Brand
BIOSTAR
Model
A780L3G

Supported CPU

|
CPU Socket Type
AM3
CPU Type
Phenom II / Athlon II / Sempron
FSB
2600 MHz

Chipsets

|
Chipset
AMD 760G
South Bridge
AMD SB710

Memory

|
Number of Memory Slots
2×240pin
Memory Standard
DDR3 1333/1066/800
Maximum Memory Supported
8GB
Channel Supported
Dual Channel

Expansion Slots

|
PCI Express 2.0 x16
1 x PCI Express 2.0 x16
PCI Express x16
1
PCI Slots
2 x PCI Slots

Storage Devices

|
PATA
1 x ATA133 2 Dev. Max
SATA 3Gb/s
4 x SATA 3Gb/s
SATA RAID
0/1/10

Onboard Video

|
Onboard Video Chipset
ATI Radeon 3000

Onboard Audio

|
Audio Chipset
Realtek ALC662
Audio Channels
6 Channels

Onboard LAN

|
LAN Chipset
Realtek 8111DL
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

|
PS/2
2
Video Ports
D-Sub + DVI
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports

Internal I/O Connectors

|
Onboard USB
4 x USB 2.0

Physical Spec

|
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 7.9"
Power Pin
24 Pin

Features

|
Features
Supports AMD Phenom II/Athlon II/Sempron Processors

Supports AMD Cool'n'Quiet Technology

AMD OverDrive with ACC feature (Advanced Clock Calibration) supported

Maximum CPU TDP (Thermal Design Power) : 125Watt
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
