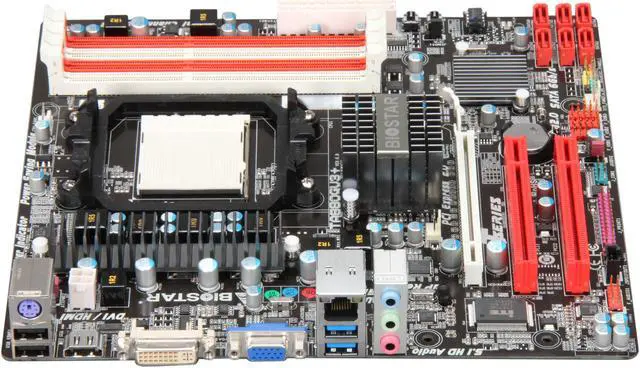

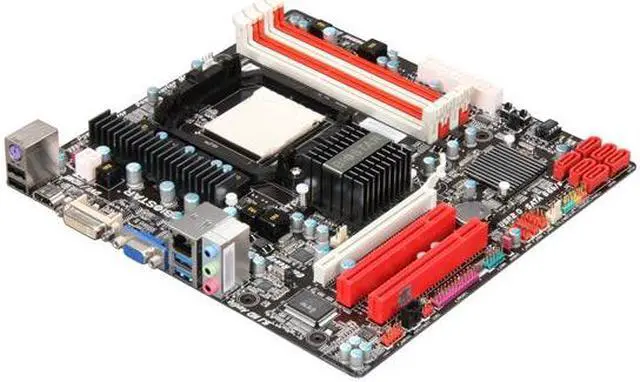

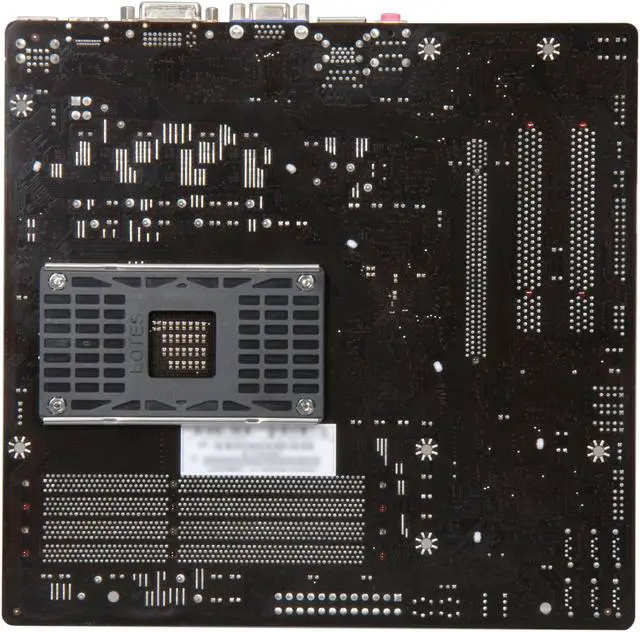

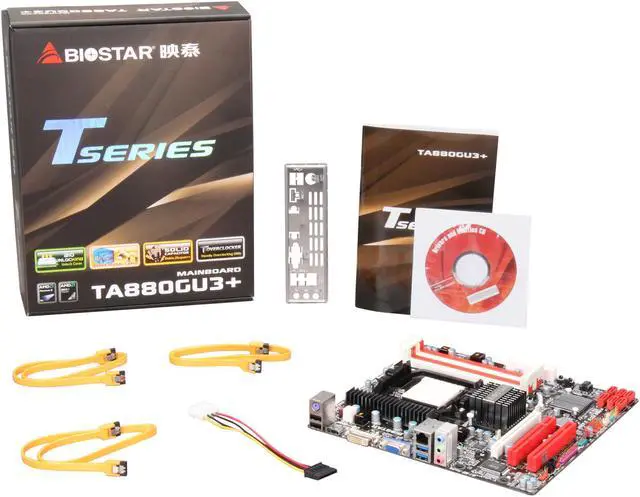

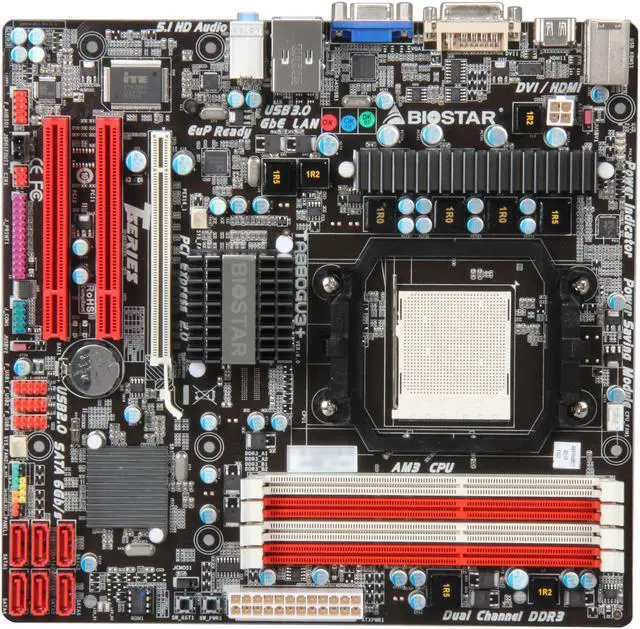

BIOSTAR TA880GU3+ AM3 AMD 880G USB 3.0 HDMI Micro ATX AMD Motherboard
- AMD 880G
- Phenom II / Athlon II / Sempron
- DDR3 1600(OC)/1333/1066/800
Specs
Reviews (47)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar TA880GU3+
| Brand | BIOSTAR |
|---|---|
| Model | TA880GU3+ |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 880G |
|---|---|
| South Bridge | AMD SB850 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600(OC)/1333/1066/800 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | ATI Radeon HD 4250 |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.17" |
| Power Pin | 24 Pin |
| Features | For memory installing, please note this: It is recommended to install memory module on the red DDR3 DIMM slot (DDR3_A2 or DDR3_B2) to boot the system. AMD 125W processor support AMD 880G Chipset with ATI Radeon HD 4250 Graphics Supported SATA 6Gb/s 2X speed than current SATA 3G ATI Hybrid Graphics Support Integrated HDMI/DVI interface with HDCP Support 1080P HD Video Experience Supported USB 3.0 BIOSTAR G.P.U ( Green Power Utility ) for green power saving your desktop |
|---|
| First Listed on Newegg | March 21, 2011 |
|---|
