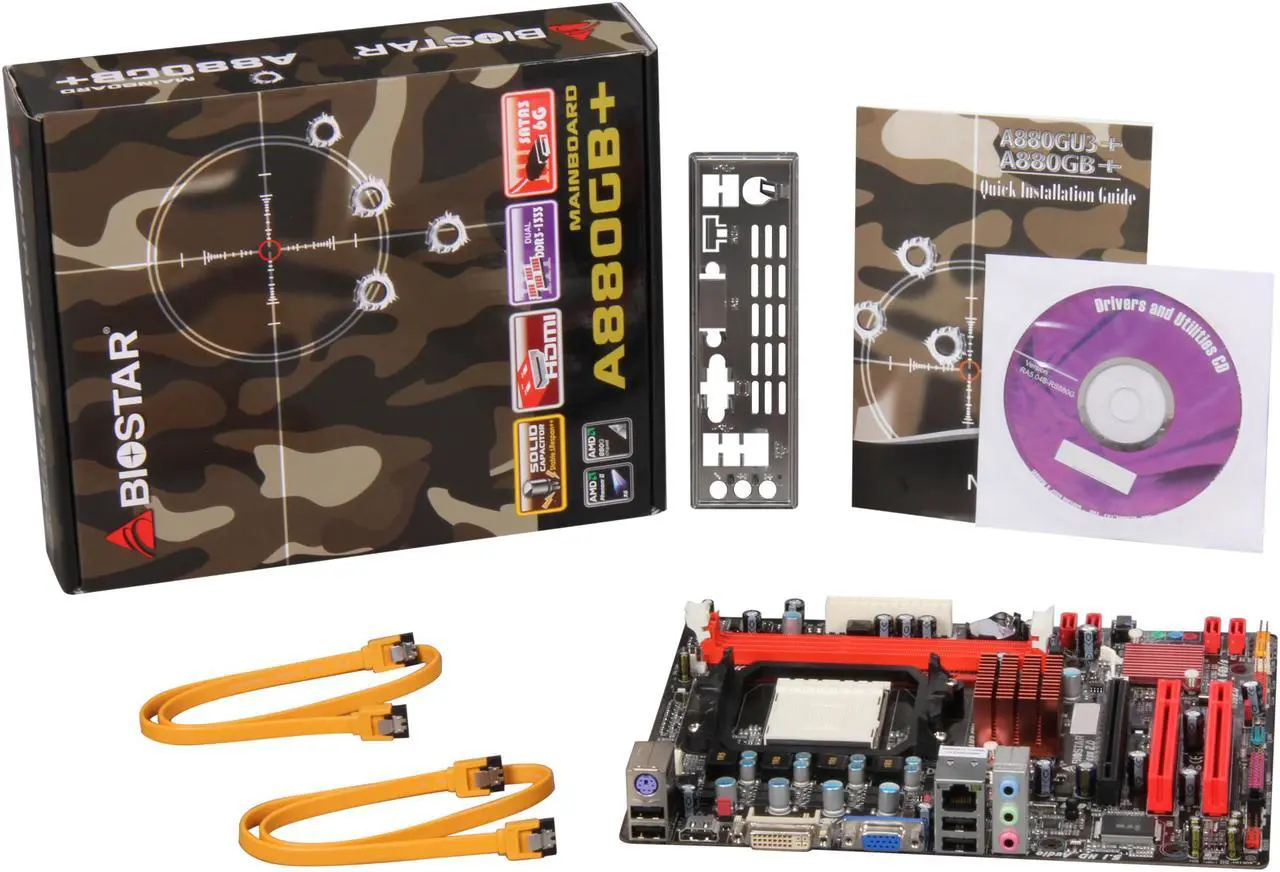

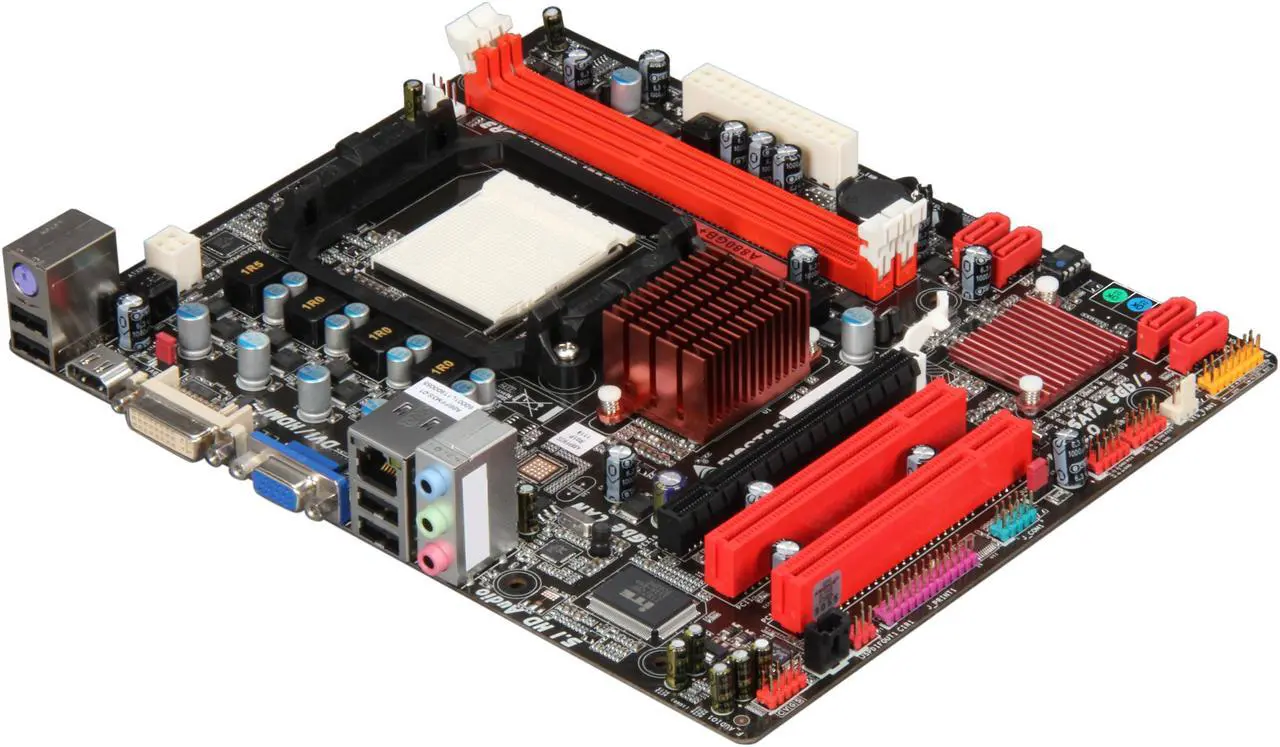

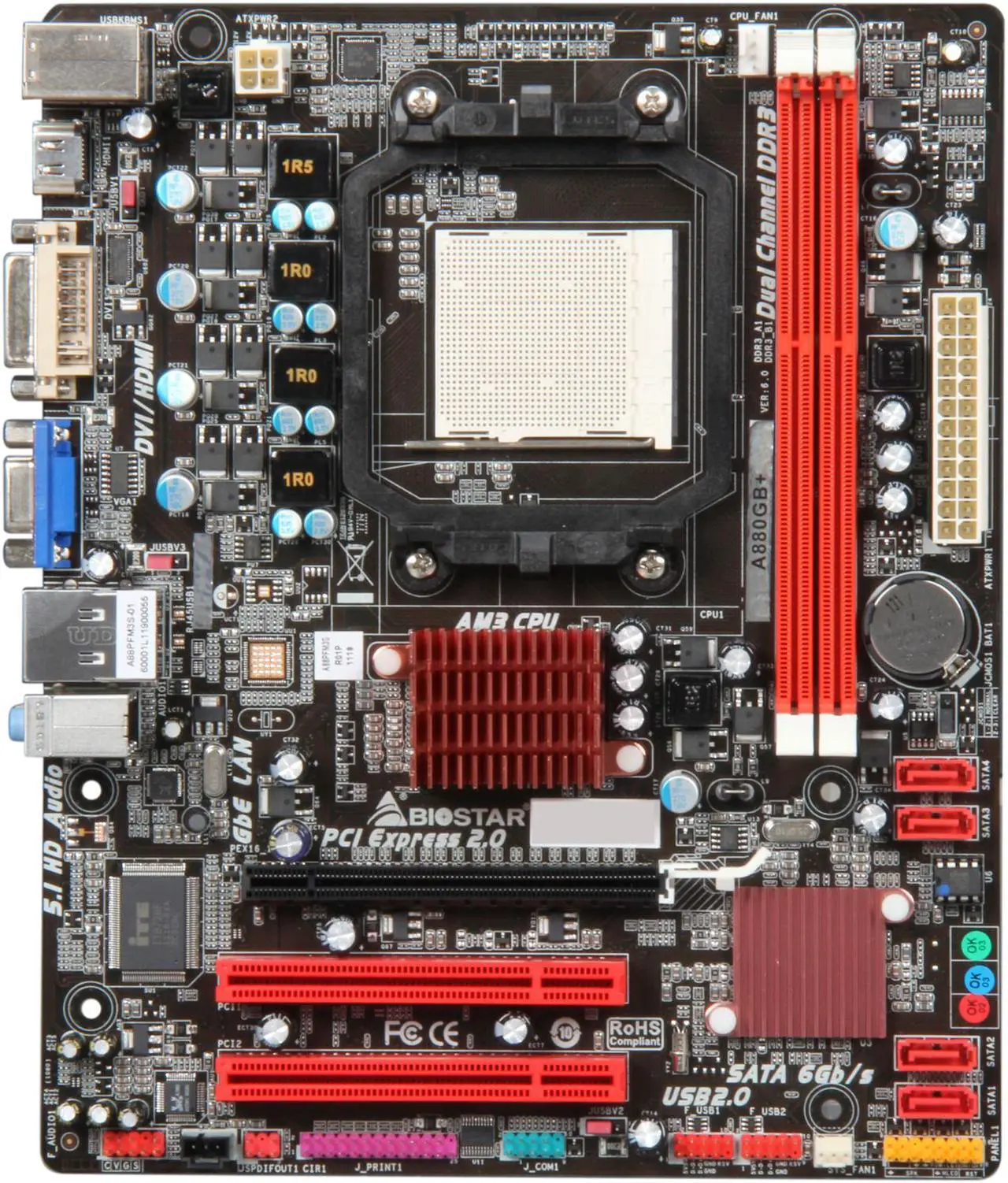

BIOSTAR A880GB+ AM3 AMD 880G HDMI Micro ATX AMD Motherboard

(5) Write a Review
  • AMD 880G
  • Phenom II / Athlon II / Sempron
  • DDR3 800/1066/1333(supportted by CPU model)/1600(OC)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (5)

Learn more about the Biostar A880GB+

Model
Brand BIOSTAR
Model A880GB+
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron
FSB 2600 MHz
Chipsets
Chipset AMD 880G
South Bridge AMD SB850
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 800/1066/1333(supportted by CPU model)/1600(OC)
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Slots 2 x PCI Slots
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 4250
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps

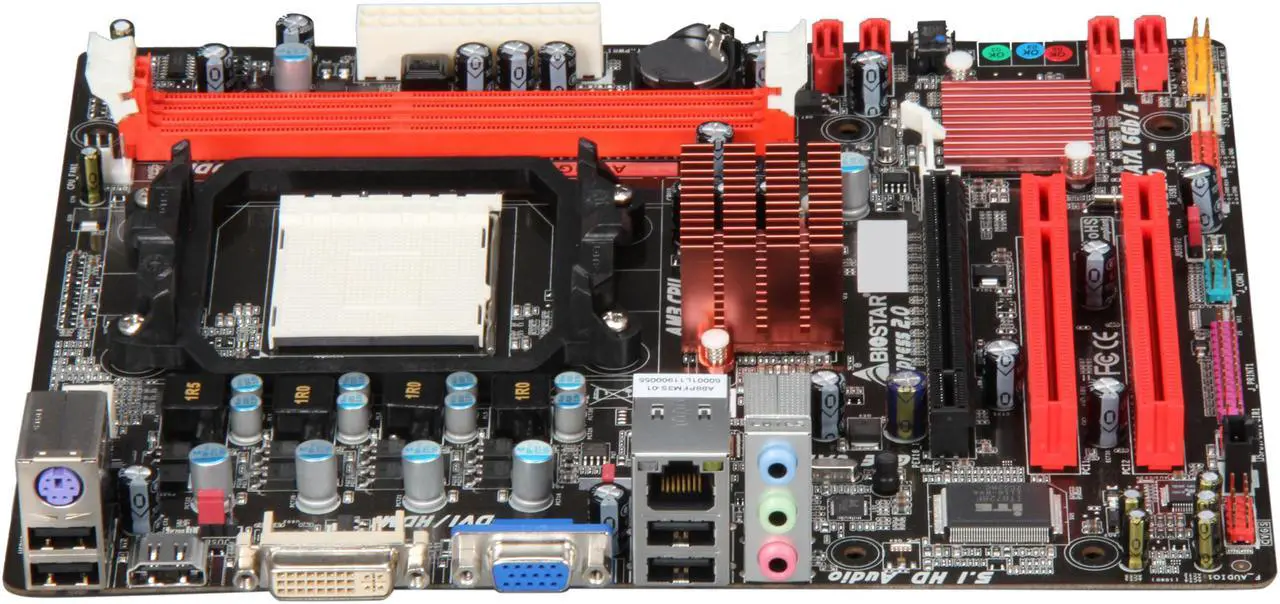

Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.87"
Power Pin 24 Pin
Features
Features Socket AM3

Supports AMD Phenom II/Athlon II/Sempron Processors

Supports AMD Cool'n'Quiet Technology

AMD OverDrive with ACC feature (Advanced Clock Calibration) supported

Maximum CPU TDP (Thermal Design Power) : 125Watt
Additional Information
Date First Available June 27, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
