Item#: N82E16813141015

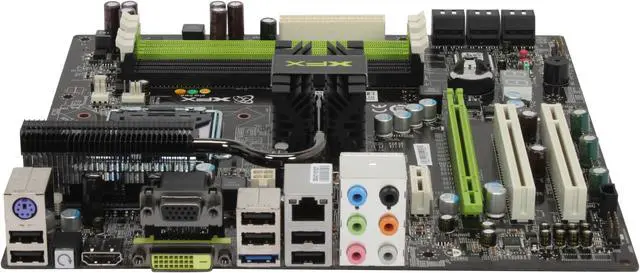

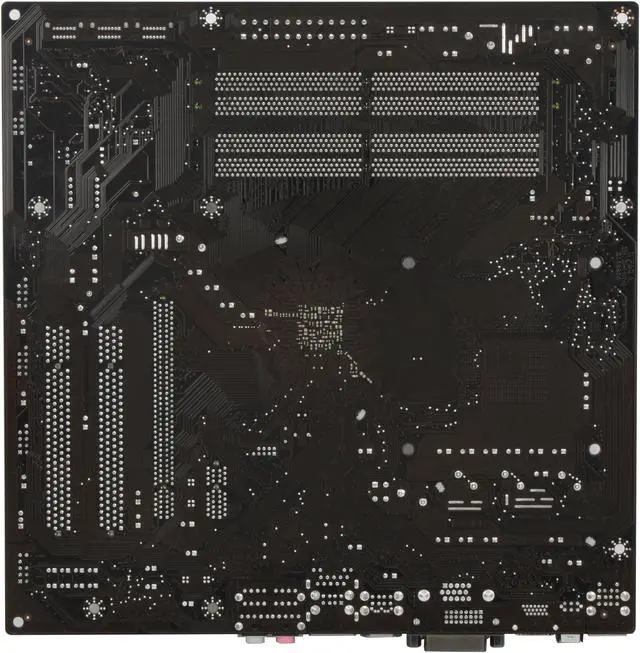

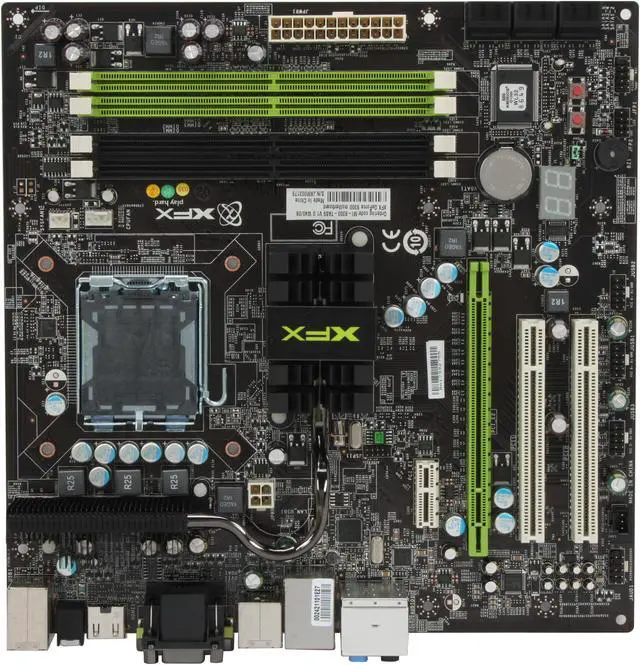

XFX MI93007 AS9 LGA 775 NVIDIA GeForce 9300 HDMI Micro ATX Intel Motherboard

  • NVIDIA GeForce 9300
  • Core 2 Quad / Core 2 Duo
  • DDR2 800
ICON Loading...

Learn more about the XFX MI93007 AS9

Model

Brand
XFX
Model
MI93007 AS9

Supported CPU

CPU Socket Type
LGA 775
CPU Type
Core 2 Quad / Core 2 Duo
FSB
1333/1066MHz

Chipsets

Chipset
NVIDIA GeForce 9300

Memory

Number of Memory Slots
4×240pin
Memory Standard
DDR2 800
Maximum Memory Supported
8GB

Expansion Slots

PCI Express 2.0 x16
1
PCI Express x1
1
PCI Slots
2

Storage Devices

SATA 3Gb/s
6

Onboard Video

Onboard Video Chipset
NVIDIA GeForce 9300

Onboard Audio

Audio Channels
8 Channels

Onboard LAN

Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

PS/2
1
Video Ports
D-Sub + DVI
HDMI
1 x HDMI
USB 1.1/2.0
6 x USB 2.0
eSATA
1 x eSATA 3Gb/s
Audio Ports
6 Ports

Internal I/O Connectors

Onboard USB
4 x USB 2.0

Physical Spec

Form Factor
Micro ATX
Power Pin
24 Pin

Packaging

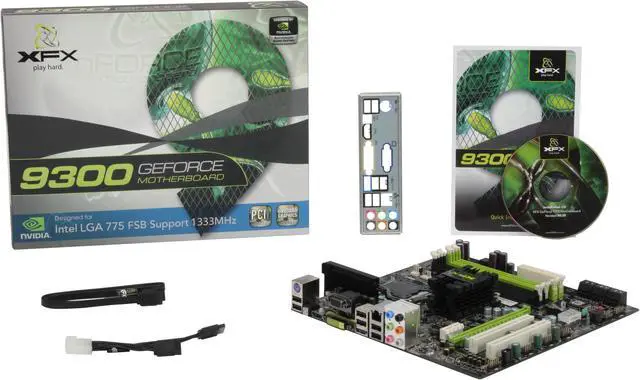

Package Contents
MI93007 AS9
Driver Disk
User Manual
Rear I/O Panel Shield
SATA Cable
4-pin to SATA Power Cable

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the XFX MI93007 AS9

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Nikolas F.
  • 9/7/2012 7:28:59 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsReliable, Reliable, Reliable

Pros: Just at 3 years of hardcore running graphic design, highest of HD movies/tv hours a day and thrashing it with truly hardcore gaming many more hours and leaving it on to run a Day of Defeat Source gaming server for every other second of the day. I've had to upgrade my video card 3 times, my CPU 2 times, and been through 4 sets of RAM and hooked up a full liquid-cooling system connected to the CPU, North Bridge, RAM, and MOSFET and been through 3 different computer cases yet this motherboard has kept up with the lot without a flinch. It also has the required 4 RAM slots for anyone building a computer worth anything which (at the time) was a big up side.

Cons: Has 6 SATA ports but it would only recognize 4 at any one time but took some work to get around this problem.

It may not be a true con at the time way back when this was new to only have 1 PCI-E 16x so it wasn't a mobo with foresight but SLI/Crossfire is a bit over-rated anyhow so I'm not that bothered.

The onboard graphics sounds tempting, but saying it has a 9300 GT AWESOME on-board GPU actually means if you don't already have a super-powered video card in the shopping cart to go with it and you plan on not doing much beyond watching some Youtube sometimes and browsing your MyFaceTwitter wall and playing your Angry Birds you'll be perfectly fine. Otherwise, get a graphics card.

Other Thoughts: I suspect no one will ever read this review since this mobo is now an ancient relic by the exponential growth of computing power requirements of today's builders and modders but XFX has always been wonderful for me so I wanted to return the favor.

Did you find this review helpful? Yes No

  • William G.
  • 1/29/2011 12:52:19 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Gr8 for my home server

Cons: none

Did you find this review helpful? Yes No

  • James M.
  • 5/8/2010 10:33:08 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggs

Pros: out standing options it works great

Cons: Im glad I had a 2nd computer to look up the manual and docs. It wont boot to HDMI, I had to use the dvi with a converter then install the drivers for the HDMI to work. then no sound, i had to manually go to setting to change it from hd audio to HDMI audio output, which should have been automatic in my opinion. But the nit picking aside this is an outstanding mobo

Did you find this review helpful? Yes No

  • Bryan L.
  • 4/20/2010 10:35:45 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

4 out of 5 eggsDecent Nvidia 9300 IGP Mobo

Pros: - Nvidia GeForce 9300 Integrated Graphics!
- Decent memory compatibility
- Low power requirements
- No significant issues

Cons: Three Issues:

1. The IGP chip gets HOT!!! Originally, 57 - 60F in 69F room temp. at typical load; 87F watching low qual. Flash videos. Put a fan on it from an old AMD K6 heatsink I had lying around (wired on with a couple sturdy paperclips) and attached it to the one extra fan port on the mobo. Still runs hot, but holds at about 52-58F at up to 80F room temps with average workload, dual monitors, and HD Flash video playback. With 120mm case fan running also (through fan controller), it allows light gaming with temps 60-70F.

2. Although the board has 6 SATA ports, only 4 are usable, unless you enable RAID.

3. For the first month, the board could not decide which device to boot from even after I saved the settings in BIOS. I went back and forth with XFX's lackluster tech support. All of the sudden, the problem disappeared -- no setup changes, no hardware changes, no periphreal changes, no BIOS flash...It just booted the right way every time. Weird, huh? No problem since!

Other Thoughts: - C2D E8400
- Scythe Shuriken Rev B
- 8 GB OCZ Titanium XCZ PC6400 (4x2GB)
- 500 GB (x2 for 1 TB) Samsung EcoGreen F2 (HD502HI) 500GB SATA
- Windows 7 Home 64 bit
- Samsung Super Writemaster LightScribe DVD/RW
- Antec EarthWatts 380 Watt Power Supply
- Generic mATX case with fan controller and one 90mm case fan and two 120mm case fans
- Approx. Watts at the wall: 37W typical load; 81W playing full quality HD video or light gaming

3 out of 4 people found this review helpful. Did you? Yes No

  • Joseph P.
  • 4/19/2010 8:32:30 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat Board for the Price

Pros: The board is great and has ran great ever since I have installed it. I would definitely buy another and recommend to others. Hybrid SLI is an interesting concept although I can't get it to work (more on that in other thoughts). Onboard Graphics are decent to be on a board like this.

Cons: Not really a con but no memory card reader pins on the board. Not much of an issue as I have laptops that can read SD cards. The CPU socket and RAM standard are showing their age. (again not really a con but there are newer, better technologies out now)

Other Thoughts: No clue how to access BIOS. When I hit the power button I get the XFX screen then Windows loads. No idea whats going on there.

Did you find this review helpful? Yes No

  • Nicholas W.
  • 4/18/2010 10:25:08 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsPDF Manual Says Otherwise

Pros: Good board I Suppose, good overclocking ability.

Cons: I bought the board for the simple fact that it had PCI-Express 2.0 on the specs of the board and that would allow me to fully utilize my video card, but when I bought the board and looked in the manual it specifies that the supported bandwidth of the x16 PCI-E port is only up to 4GB/s. PCI-Express 1.0 is 250MB/s per lane, on a x16 slot that would be 16 lanes which would multiply to 4GB/s at PCI-E 1.0. With PCI-E 2.0 the bandwidth is 500MB/s per lane which on a x16 slot would mean 8GB/s. To be honest this is false advertisement and it really gets on my nerves because I bought this product solely for the purpose of utilizing the full potential of my GTS250.

Other Thoughts: Not really, just disappointed that I wasted $90.

0 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 4/12/2010 8:10:21 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsFans!

Pros: great board. easy to overclock(once the jumper is moved to the right pins) easy access cmos clear button. love the board.!!

Cons: only has 1 extra 3 pin fan connection! this means if you want/need more fans you might have to go with a fan controller.

Other Thoughts: not much room for video cards. im a gamer and use this board to game as well as school tasks (revit, papers and emailing)

Did you find this review helpful? Yes No

  • w s.
  • 4/11/2010 12:28:29 PM
  • Tech Level: Low
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsIf anyone is having BSODs or freezing, etc.

Pros: Comes with Geforce 9300. Forward facing SATA ports that does not interfere with BFG GTX 285 installation (and vice versa). Uses DDR2 667, the PDF manual says even 533 works, so I didn't need the Crucial ddr2 800 that I purchased - still in its blister pack, maybe I can resell to a coworker. Motherboard looks sort of cool.

Cons: The glowing red CMOS reset button at the back never goes off. It wouldn't have changed my purchase, but as someone who is paranoid about his hardware, it would have been good to know beforehand. The series of several POST beeps gets on my nerves a bit... sounds like TETRIS or Robotron/Defender/Stargate. I was getting BSODs playing with GTA IV Windows 7 and later with XP, but 1.) removed the northbridge heatsink and the purple dried bubblegum thermal material 2.) applied antec formula 5 3.) replaced loose push pins with extra long motherboard standoffs from local computer store, with paper washers and lugnuts on the underside to tighten it up... and now BSODs are gone (mostly -- I shouldn't have been playing GTA IV with this setup in a room that was 81 degrees ambient temperature, that's my stupidity).

Other Thoughts: Q6600, 2GB ddr2 667, GTX 285, alternately using PC Power Cooling 750W, and now Antec NEO He 550W, 500GB, Sony Blu-ray Reader/DVDROM/CDROM. alternately using rocketfish tower case or antec three hundred to check temperatures using speedfan (great program - helped me get to the crux of the problem).

Did you find this review helpful? Yes No

  • Anonymous
  • 4/6/2010 3:08:29 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsdecent board setup

Pros: all SATA, nice setup, looks nice.

Cons: USB jacks next to the eSATA jack are too tight to insert anything into., it would bend the PCB. Heatsink is nothing more than show, no BIOS instructions. AMI bios with limited options.

Other Thoughts: don't let the three stars fool you. its a decent board, and i won't buy from anyone else (XFX and Newegg). However, the female USB jacks not being usable ruins the experience for me. i can't afford the time to plan ahead for those things, XFX's QA systems are better than that.

Did you find this review helpful? Yes No

  • Christopher C.
  • 4/6/2010 11:35:05 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsGOING TO CRY

Pros: has all the bells and whistles but...... NO VIDEO AND A REAL BAD MANUAL

Cons: 1st one was doa 2nd one burned my harddrive,sent it back via RMA .2 and a half weeks later got it .......started boot , no video......looked up online to see if i did something wrong or what the post codes were unpluged everything and added 1 by 1 . even went and spent 200 on a video card to see if that was the issue, had to return it cause that wasnt the prob . had all the main plug in and the 4 pin still nothin so....,nope bad manufacturer this board has all kinda issues
thankfully i had it, sent the board back for full refund

Other Thoughts: ill never buy another piece of garbage XFX as long as i live.
on a good note the memory and other stuff i bought was fine

0 out of 4 people found this review helpful. Did you? Yes No
