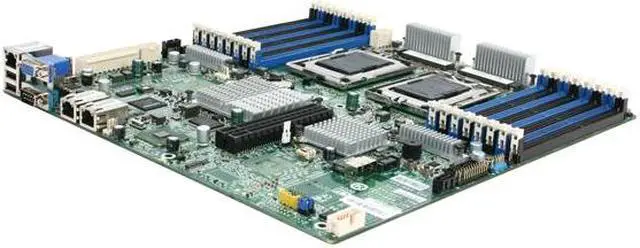

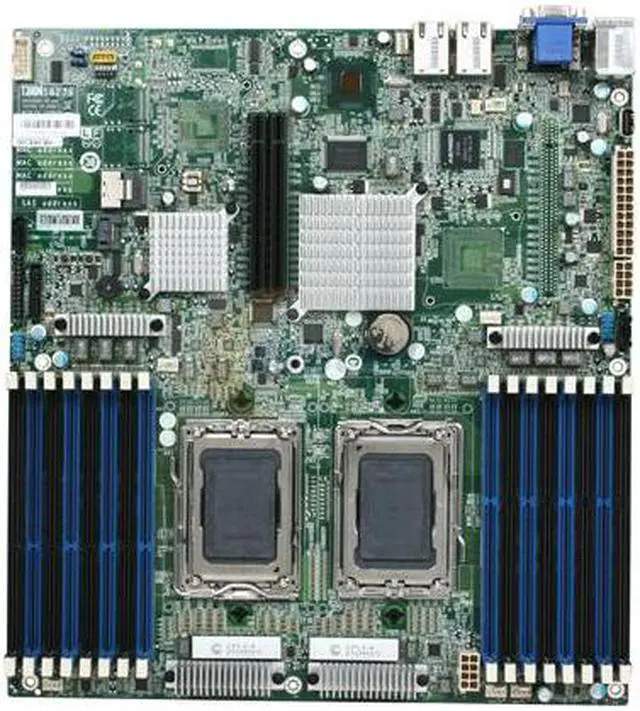

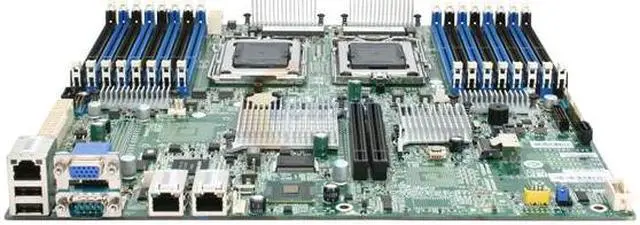

TYAN S8236GM3NR SSI EEB Server Motherboard Dual Socket G34 AMD SR5690 DDR3 1333
- Dual Socket G34
- AMD SR5690
- 16 x 240pin
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S8236GM3NR
| Brand | TYAN |
|---|---|
| Model | S8236GM3NR |
| CPU Socket Type | Dual Socket G34 |
|---|---|
| CPU Type | Dual AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors (Magny-Cours) |
| North Bridge | AMD SR5690 |
|---|---|
| South Bridge | AMD SP5100 |
| Number of DDR3 Slots | 16 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Quad Channel |
| PCI Express 2.0 x16 | 2 |
|---|
| SATA RAID | RAID 0/1/10/5 (Promise Integrated RAID) |
|---|
| Onboard Video Chipset | Aspeed AST2050 |
|---|
| LAN Chipset | Intel 82574L / Intel 82576EB |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| COM | 1 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 3 x USB 2.0 |
| Features | Server Management Onboard Chipset : Onboard Aspeed AST2050 AST2050 IPMI Feature : IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0 virtual hub / BIOS update AST2050 iKVM Feature : 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces |
|---|
| Form Factor | SSI EEB |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | October 18, 2010 |
|---|
