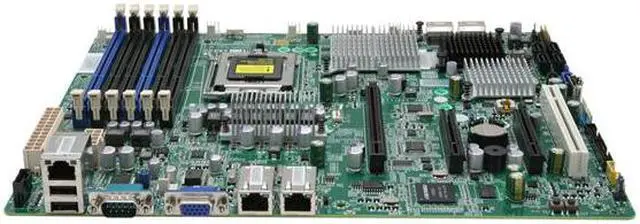

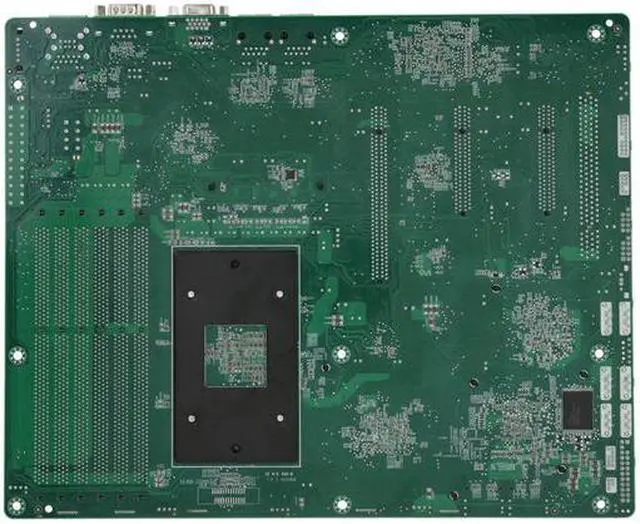

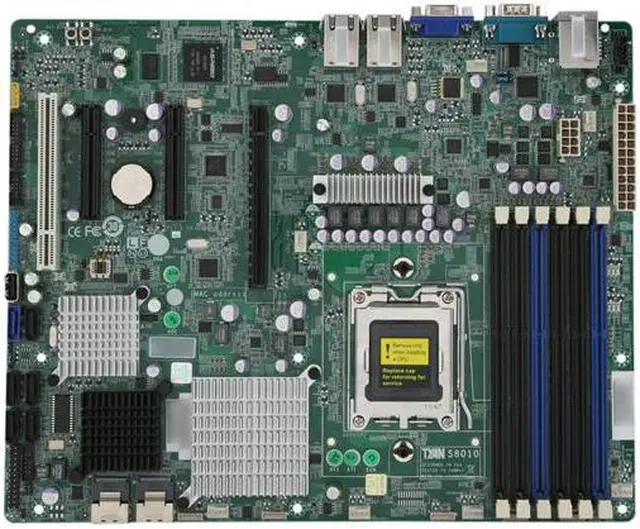

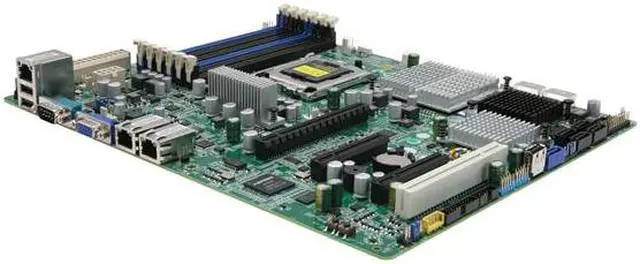

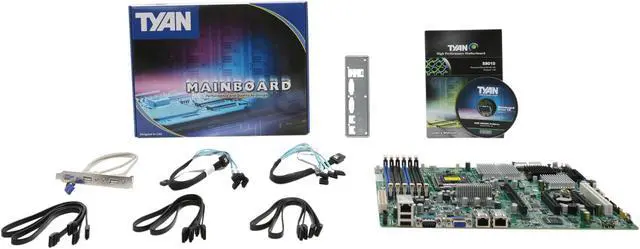

TYAN S8010WGM2NR ATX Server Motherboard Socket C32 AMD SR5670 DDR3 1333
- Socket C32
- AMD SR5670
- 6 x 240pin
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S8010WGM2NR
| Brand | TYAN |
|---|---|
| Model | S8010WGM2NR |
| CPU Socket Type | Socket C32 |
|---|---|
| CPU Type | AMD Opteron 4200/4100 Series |
| System Bus | Up to 5.2 GT/s Hyper-Transport link support |
| North Bridge | AMD SR5670 |
|---|---|
| South Bridge | AMD SP5100 |
| Number of DDR3 Slots | 6 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333 |
| Maximum Memory Supported | 64GB |
| PCI Express 2.0 x16 | (1) PCI-E Gen.2 x16 slot (w/ x8 link) |
|---|---|
| PCI Express x8 | (2) PCI-E Gen.2 x8 slots |
| PCI Slots | (1) PCI 32-bit slot |
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | RAID 0/1/10/5 (Promise Integrated Software RAID) |
| SAS | Controller: LSI SAS2008 Connector: (2) Mini-SAS connectors (totally support 8 ports) |
| SAS RAID | RAID 0/1/1E/10 (LSI Integrated RAID) |
| Onboard Video Chipset | Aspeed AST2050 |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| COM | 1 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Features | Supported CPU Series: AMD 45nm 4-Core/6-Core Opteron 4100 Series Processors (Lisbon) AMD 32nm 4-Core/6-Core/8-Core Opteron 4200 Series Processors (Valencia) Broadcom BCM5221 PHY (dedicated for IPMI connection) |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | May 09, 2011 |
|---|
