Item#: N82E16813151270

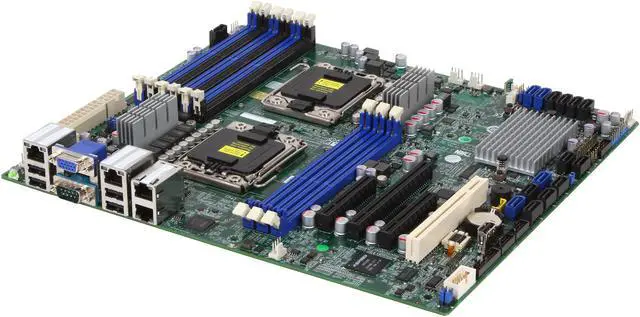

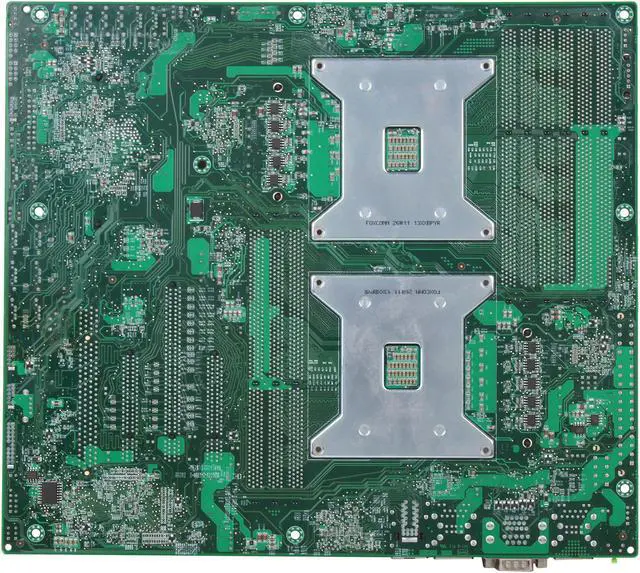

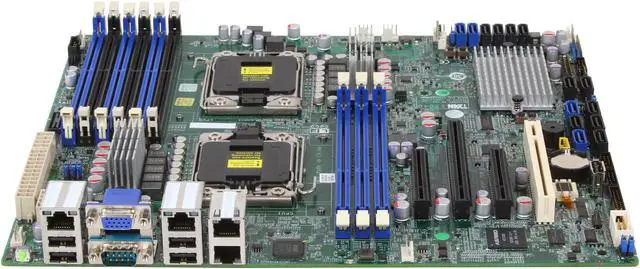

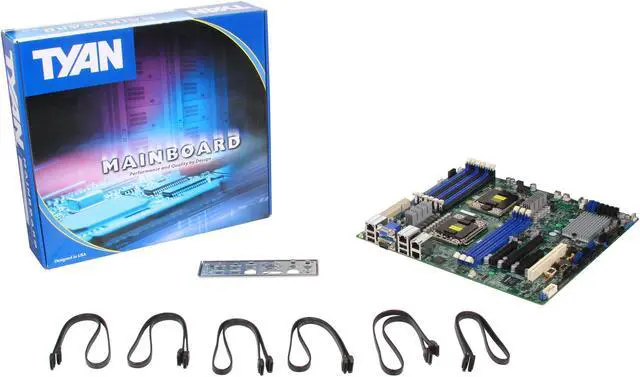

TYAN S7040WGM4NR SSI CEB Server Motherboard Dual LGA 1356 (Socket B2) DDR3 1600

  • Dual LGA 1356
  • Intel C602 with upgrade ROM module
  • 9 x 240pin
ICON Loading...

Learn more about the TYAN S7040WGM4NR

Model

Brand
TYAN
Model
S7040WGM4NR

Supported CPU

CPU Socket Type
Dual LGA 1356
CPU Type
Dual Intel Xeon E5-2400 series
QPI
Up to 8.0 GT/s

Chipsets

Other Chipset
Intel C602 with upgrade ROM module

Memory

Number of DDR3 Slots
9 x 240pin
DDR3 Standard
DDR3 1600
Maximum Memory Supported
288GB

Expansion Slots

PCI Express 3.0 x16
(1) PCI-E x16 slot ( x8 link, slot #4)
PCI Express x8
(1) PCI-E x8 slot (x8 link, slot #5)
(1) PCI-E x8 slot ( x4 link, slot #3)
PCI Slots
(1) PCI 32-bit slot (slot #2)

Storage Devices

SATA
4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID
RAID 0/1/10/5 (Intel RST)
SAS
Controller: Intel C602 with TRK-5 upgrade ROM module
Connector: (8) SAS
SAS RAID
RAID 0/1/10 (Intel Integrated RAID upgrade ROM 5)

Onboard Video

Onboard Video Chipset
Aspeed AST2300

Onboard LAN

LAN Chipset
Intel I350-AM2
LAN Speed
10/100/1000Mbps
Second LAN Chipset
Intel 82574L
Second LAN Speed
10/100/1000Mbps
Max LAN Speed
Quad 10/100/1000Mbps

Rear Panel Ports

COM
1
Video Ports
D-Sub
USB 1.1/2.0
4 x USB 2.0

Onboard USB

Onboard USB
4 via cable, 1 type A onboard

Physical Spec

Form Factor
SSI CEB
Dimensions
12" x 10.5"

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
