Question 1

The system fan headers are where the chassis fan go into correct? I didn't find any fan header cable that came with the board. My case has 3 fans, but the board only has 2 SYS_FAN headers. :(

I might have to spring for a splitter or connect one of the fans directly to the PSU but that would mean it would run at full speed all the time.

Accepted Answer

If you have an active CPU cooler (e.g. a heatsink with a fan on it), this board basically needs no cooling at all.  One fan over the memory would be more than plenty.  If you're using passive CPU cooling (heatsink, no fan on top) you probably need to run all the fans at full blast anyhow.

Question 2

Does this board support Haswell Refresh CPUs or will its BIOS need to be updated before using Haswell Refresh Pentium G3240 CPU?

Accepted Answer

I was able to install a Pentium G3258 (Haswell refresh) with the default BIOS. I did not have to update anything for the CPU to be recognized by the motherboard.

Question 3

Does this ship with a BIOS that is compatible with Haswell Refresh CPUs or would you have to update the BIOS first before using the board?

Accepted Answer

Mine worked fine with a Haswell, but I wouldn't guarantee that would work for any board shipped - it's too hard to know how old stock is.

Question 4

Does this board work with a standard 20pin ATX power supply?

Accepted Answer

No, it uses 24 pin ATX connector, plus a 4 pin CPU power connector

Brand	TYAN
Model	S5533GM2NR-LE

CPU Socket Type	LGA 1150
CPU Type	Intel Xeon E3-1200 v3 & 4th Gen. Core i3 (Max up to 95W)

Number of DDR3 Slots	2 x 240pin
DDR3 Standard	DDR3 1600/1333/1066
Maximum Memory Supported	16GB
ECC Supported	Yes

SATA	2 x SATA 6.0Gb/s + 4 x SATA 3.0Gb/s
SATA RAID	0/1/5/10

LAN Chipset	Intel I210
LAN Speed	10/100/1000Mbps
Max LAN Speed	1Gbps

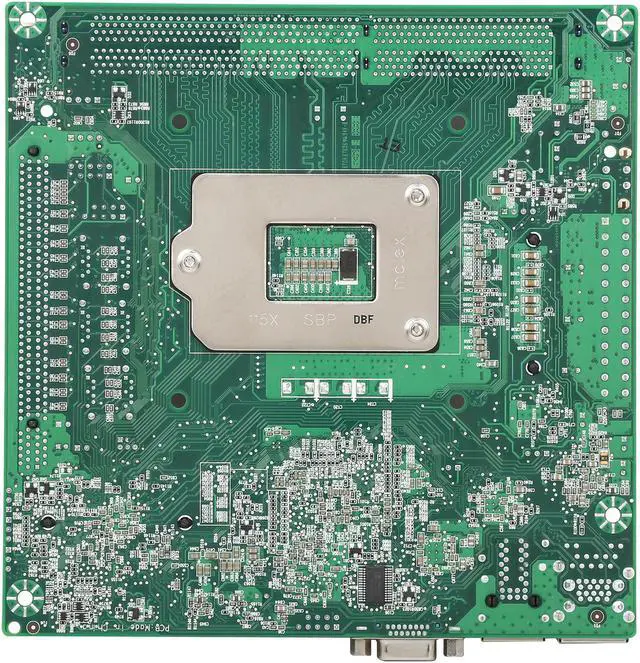

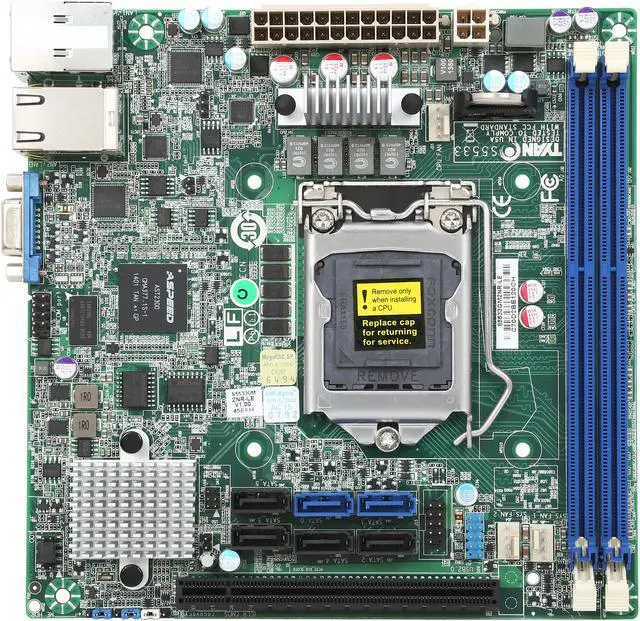

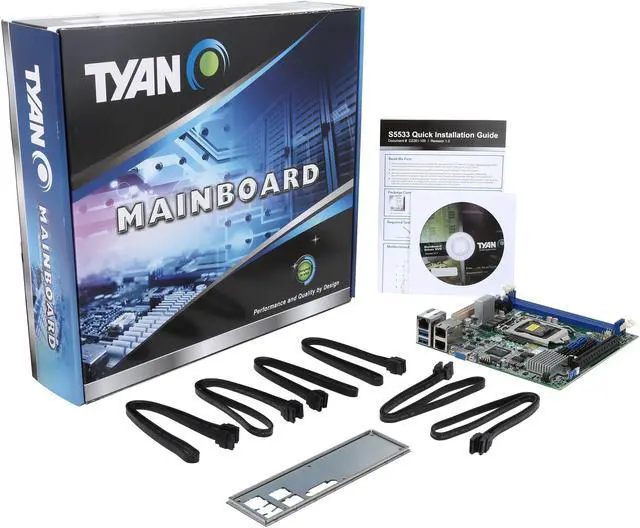

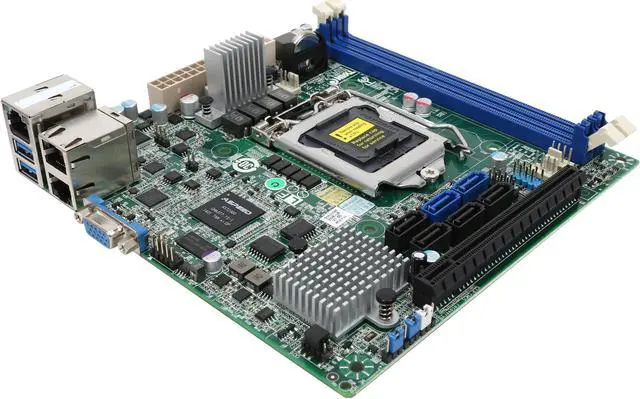

TYAN S5533GM2NR-LE Mini ITX Server Motherboard LGA 1150 Intel C222 DDR3 1600/1333/1066

Learn more about the TYAN S5533GM2NR-LE

Customer Reviews of the TYAN S5533GM2NR-LE

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

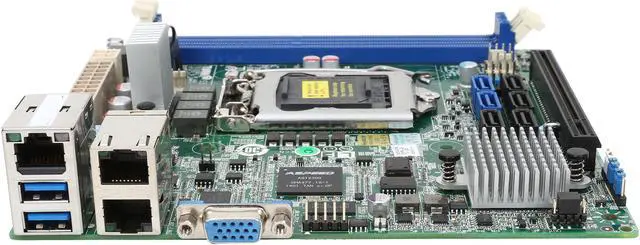

Rear Panel Ports
COM	1 x Header
Video Ports	1 x VGA
USB 3.0	2 x USB 3.0

Dimensions
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"

Item#: N82E16813151295
