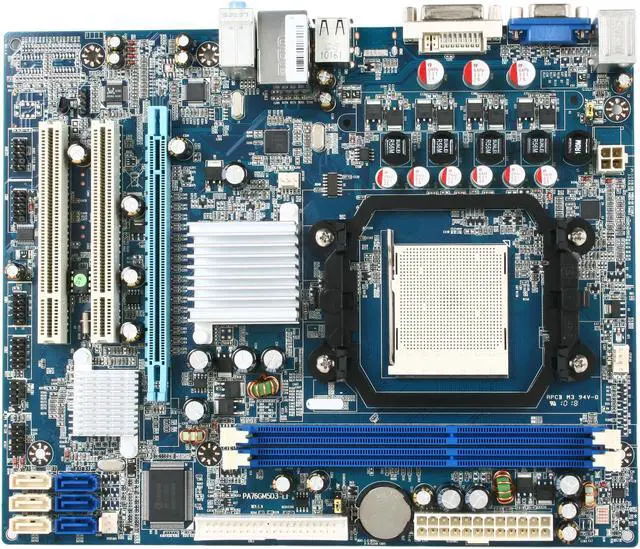

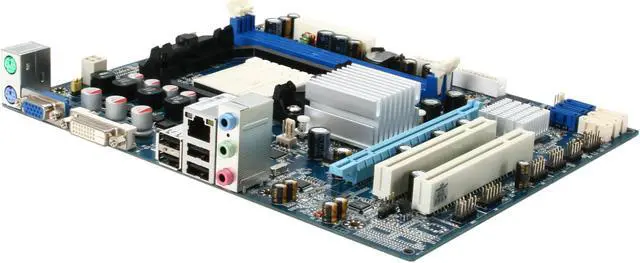

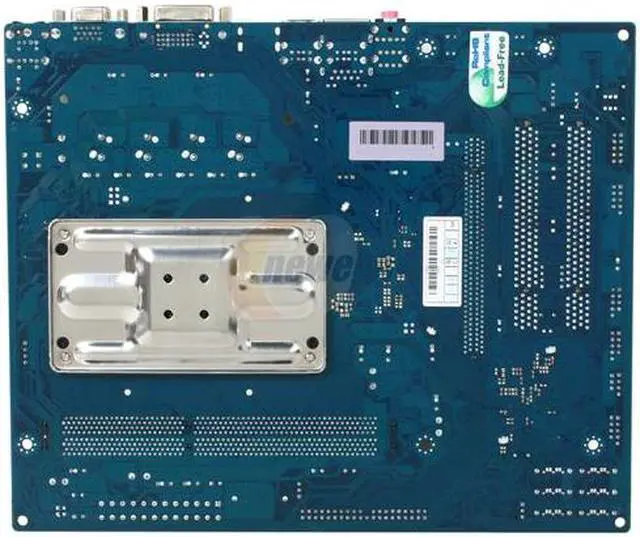

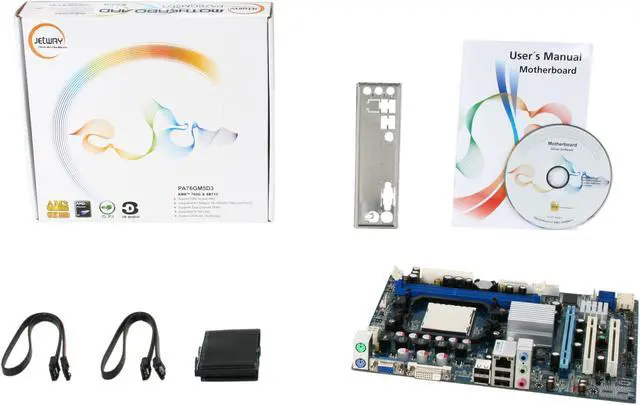

JetWay JPA76GM5D3-LF AM3 AMD 760G Micro ATX AMD Motherboard
- AMD 760G
- AMD Socket AM3 Series processors
- DDR3 1333
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JPA76GM5D3-LF
| Brand | JetWay |
|---|---|
| Model | JPA76GM5D3-LF |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | AMD Socket AM3 Series processors |
| FSB | 2600 MHz |
| Chipset | AMD 760G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10/JBOD |
| Onboard Video Chipset | ATI Radeon 3000 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8103EL |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.65" x 7.87" |
| Power Pin | 24 Pin |
| First Listed on Newegg | September 20, 2010 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-857-0130
- Support Email: [email protected]
- Support Website
- View other products from JETWAY
