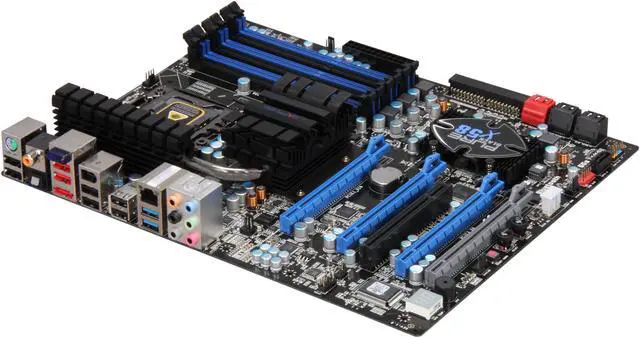

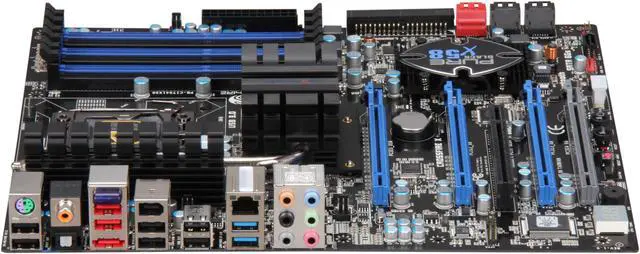

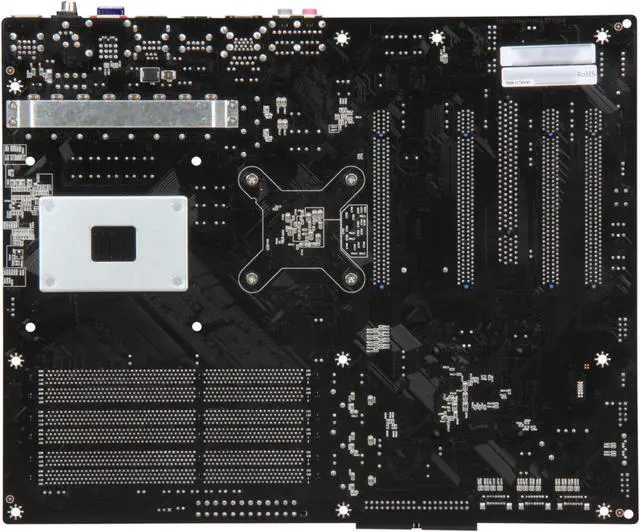

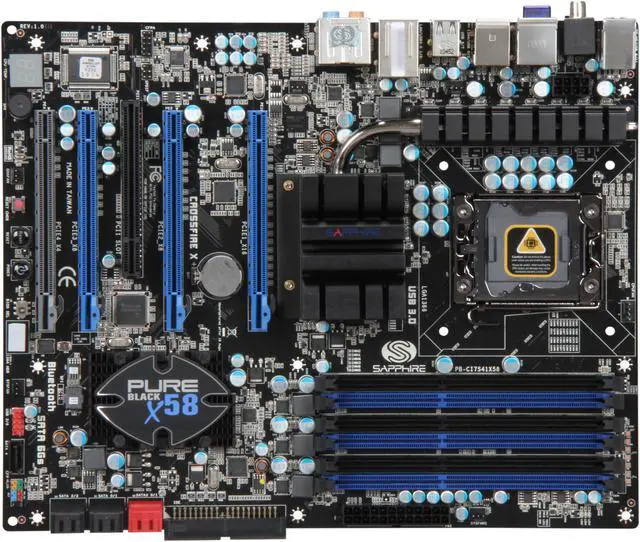

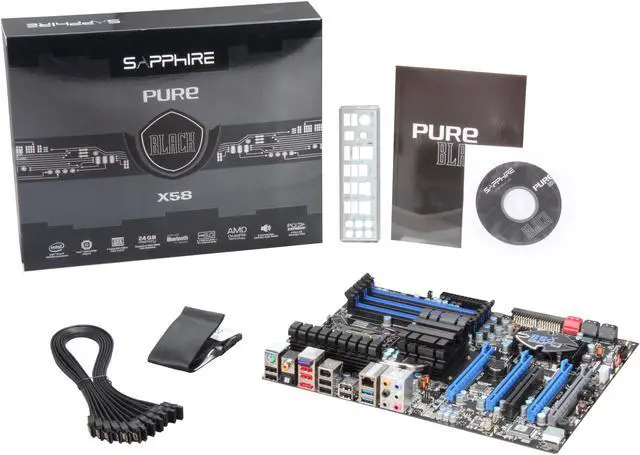

SAPPHIRE PURE Black X58 LGA 1366 Intel X58 SATA 6Gb/s USB 3.0 ATX Intel Motherboard

Model

Brand

SAPPHIRE

Model

PURE Black X58

Supported CPU

CPU Socket Type

LGA 1366

CPU Type

Core i7 (LGA1366)

Chipsets

North Bridge

Intel X58

South Bridge

Intel ICH10R

Memory

Number of Memory Slots

6×240pin

Memory Standard

DDR3 800/1066/1333/1600+

Maximum Memory Supported

24GB

Channel Supported

Triple Channel

Expansion Slots

PCI Express 2.0 x16

3 (x16, x8, x8)

PCI Express x16

1 (@ x4)

PCI Slots

1

Storage Devices

PATA

1 x ATA133 2 Dev. Max

SATA 3Gb/s

5

SATA 6Gb/s

2 x SATA 6Gb/s

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

None

Onboard Audio

Audio Chipset

Realtek ALC892

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Marvell 88E8057

Max LAN Speed

10/100/1000Mbps

Bluetooth

Bluetooth 2.1 + EDR

Rear Panel Ports

PS/2

1

USB 1.1/2.0

8 x USB 2.0

USB 3.0

2 x USB 3.0

IEEE 1394

1 x IEEE 1394a

eSATA

1 x eSATA 3Gb/s

S/PDIF Out

1 x Optical, 1 x Coaxial

Audio Ports

6 Ports

Internal I/O Connectors

Onboard USB

2 x USB 2.0

Onboard 1394

1 x 1394a

Physical Spec

Form Factor

ATX

Dimensions

12.0" x 9.6"

Power Pin

24 Pin

Manufacturer Warranty

Parts

1 year limited

Labor

1 year limited
