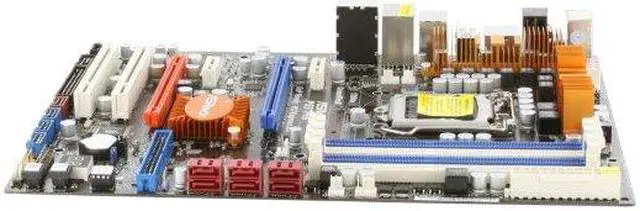

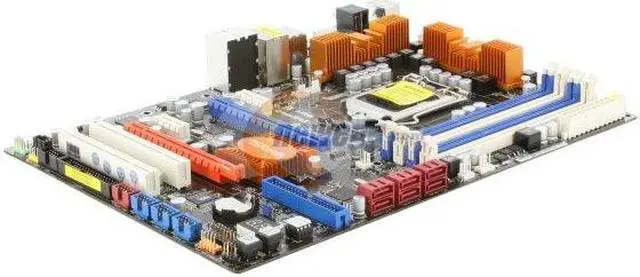

ASRock P55 Pro LGA 1156 Intel P55 ATX Intel Motherboard

(49) Write a Review
  • Intel P55
  • Core i3 / Core i5 / Core i7 / Intel Core 1st Gen (LGA 1156) / Pentium
  • DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (49)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock P55 Pro

Model
Brand ASRock
Model P55 Pro
Supported CPU
CPU Socket Type LGA 1156
CPU Type Core i3 / Core i5 / Core i7 / Intel Core 1st Gen (LGA 1156) / Pentium
Supported CPU Technologies Supports Intel Turbo Boost Technology
Supports Hyper-Threading Technology
Supports Untied Overclocking Technology
Supports EM64T CPU
Chipsets
Chipset Intel P55
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 (blue @ x16 mode, orange @ x4 mode)
PCI Express x1 2 x PCI Express 2.0 x1 slots (2.5GT/s)
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA RAID 0/1/5/10 Matrix RAID
Onboard Audio
Audio Chipset Realtek ALC890
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 2 x Powered eSATAII/USB Connector
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.6"
Power Pin 24 Pin
Features
Features Advanced V8 Power Phase Design
Supports ATI CrossFireX and Quad CrossFireX
ASRock OC Tuner
Intelligent Energy Saver
Instant Boot
ASRock Instant Flash
Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Combo Cooler Option (C.C.O.)
Additional Information
First Listed on Newegg September 15, 2009
