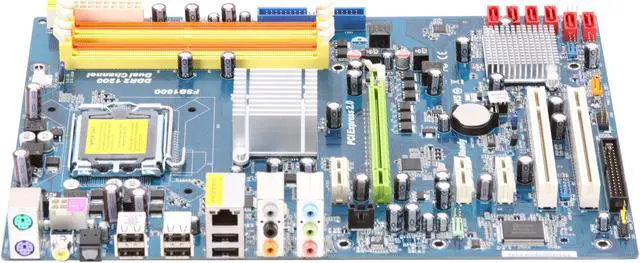

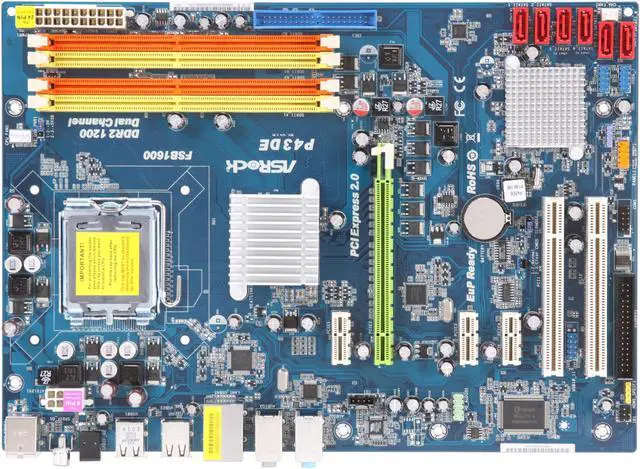

ASRock P43DE LGA 775 Intel P43 ATX Intel Motherboard
- Intel P43
- Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- DDR2 1200(OC)/1066/800/667
Specs
Reviews (81)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock P43DE
| Brand | ASRock |
|---|---|
| Model | P43DE |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors |
| FSB | 1600/1333/1066/800MHz |
| Supported CPU Technologies | Supports Hyper-Threading Technology Supports Untied Overclocking Technology Supports EM64T CPU |
| Chipset | Intel P43 |
|---|---|
| South Bridge | Intel ICH10 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1200(OC)/1066/800/667 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|
| Audio Chipset | VIA VT1708S |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.5" |
| Power Pin | 24 Pin |
| Features | 1 x USB/WiFi header Supports I. O. T. (Intelligent Overclocking Technology) Supports ASRock Instant Boot, OC DNA Supports Smart BIOS, ASRock OC Tuner, Intelligent Energy Saver, Extra ESD Protection 7.1 CH Windows Vista Premium Level HD Audio (VIA VT1708S Audio Codec with QSound function) |
|---|
| Date First Available | November 09, 2009 |
|---|
