H67M-ITX/HT LGA 1155 Intel H67 HDMI USB 3.0 Mini ITX Intel Motherboard
- Intel H67
- Core i7 / i5 / i3 (LGA1155)
- DDR3 1333/1066
Specs
Reviews (27)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock H67M-ITX/HT
| Model | H67M-ITX/HT |
|---|
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 (LGA1155) |
| Supported CPU Technologies | Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPU Supports Hyper-Threading Technology |
| Chipset | Intel H67 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| Mini Card Slots | 1 x Mini-PCI Express expansion slot: For WiFi module |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | WiFi IEEE 802.11 n |
| Back I/O Ports | 1 x eSATA 3GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 24 Pin |

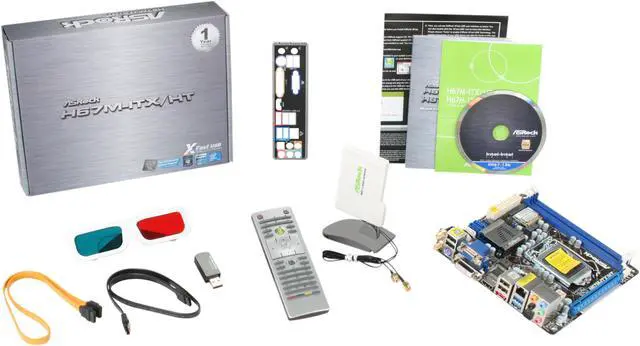

| Features | ASRock DuraCap (2.5 x longer life time, 100% Japan-made high-quality Conductive Polymer Capacitors) Supports Intel K-Series CPU Intel HD Graphics 2000/3000 and new Visual Features, DX10.1, Pixel Shader 4.1 Supports Blu-ray Stereoscopic 3D with HDMI 1.4a Supports AXTU, UEFI, XFast USB, Instant Boot, Instant Flash, APP Charger, Good Night LED, SmartView 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), THX TruStudio PRO and Premium Blu-ray audio support Free Bundle:1 x 3D Red/Cyan Anaglyph Glasses, 1 x MCE Remote Controller, 1 x Multi-Angle CIR Remote Receiver, 1 x ASRock WiFi 2.4GHz Antenna |
|---|
| First Listed on Newegg | March 15, 2011 |
|---|
