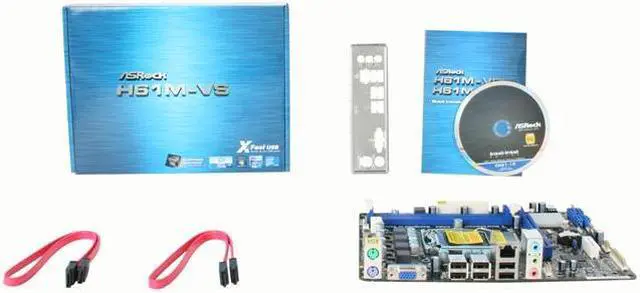

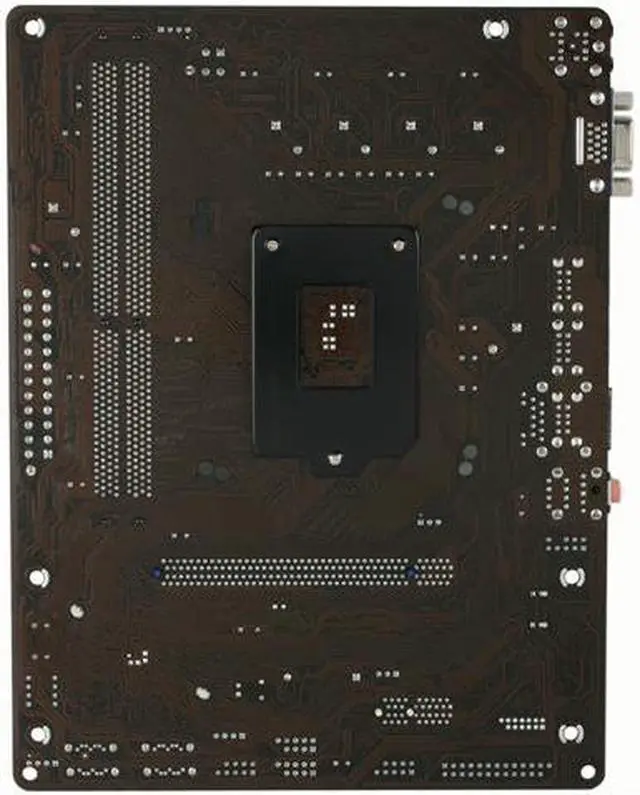

ASRock H61M-VS LGA 1155 Intel H61 Micro ATX Intel Motherboard

(71) Write a Review
  • Intel H61
  • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
  • DDR3 1333/1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (71)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock H61M-VS

Model
Brand ASRock
Model H61M-VS
Supported CPU
CPU Socket Type LGA 1155
CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
Supported CPU Technologies Supports Intel Turbo Boost 2.0 Technology
Supports Intel K-Series unlocked CPU
Supports Hyper-Threading Technology
Chipsets
Chipset Intel H61
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
Onboard Audio
Audio Chipset VIA VT1705
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Atheros AR8152
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub
USB 1.1/2.0 6 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 8.9" x 6.8"
Power Pin 24 Pin
Features
Features Solid Capacitor for CPU Power

Supports Intel K-Series unlocked CPU

Supports Intel HD Graphics 2000/3000

Supports XFast USB, AXTU, UEFI, Instant Boot, Instant Flash, APP Charger, SmartView

Combo Cooler Option (C.C.O.)
Additional Information
First Listed on Newegg March 18, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
