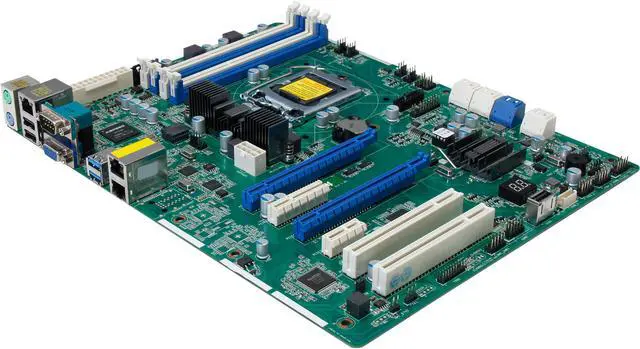

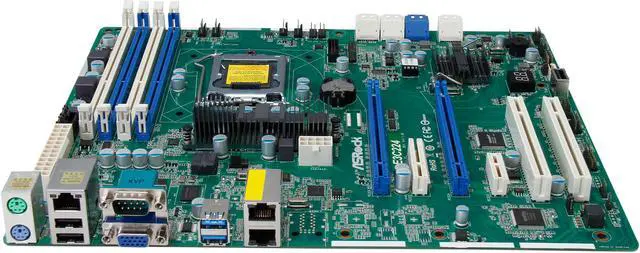

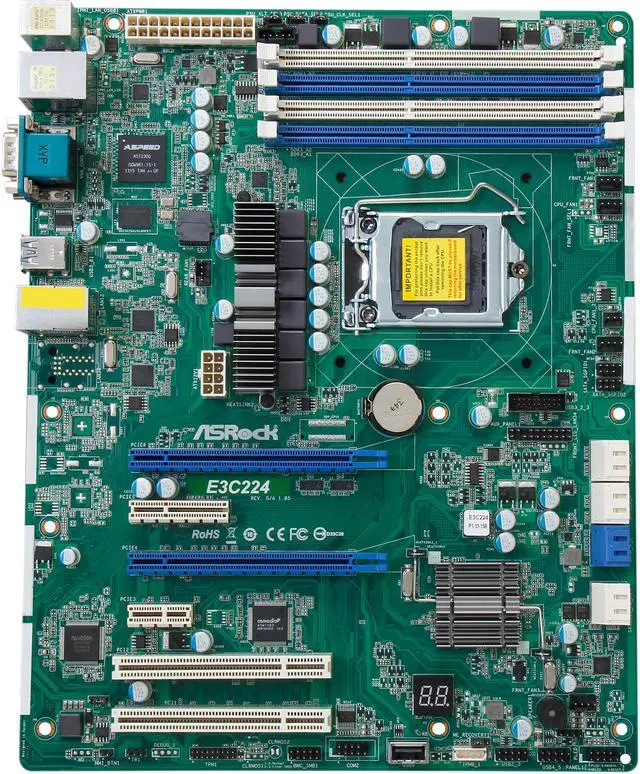

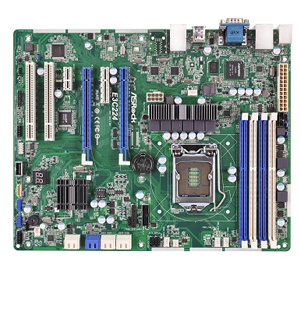

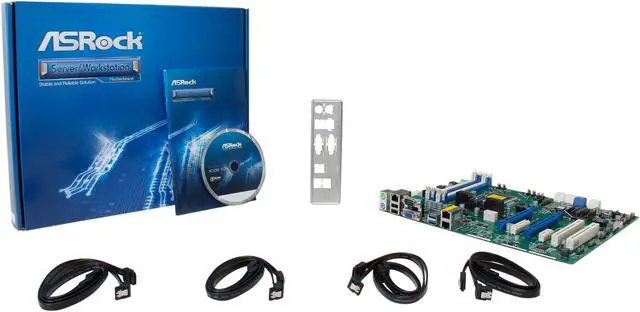

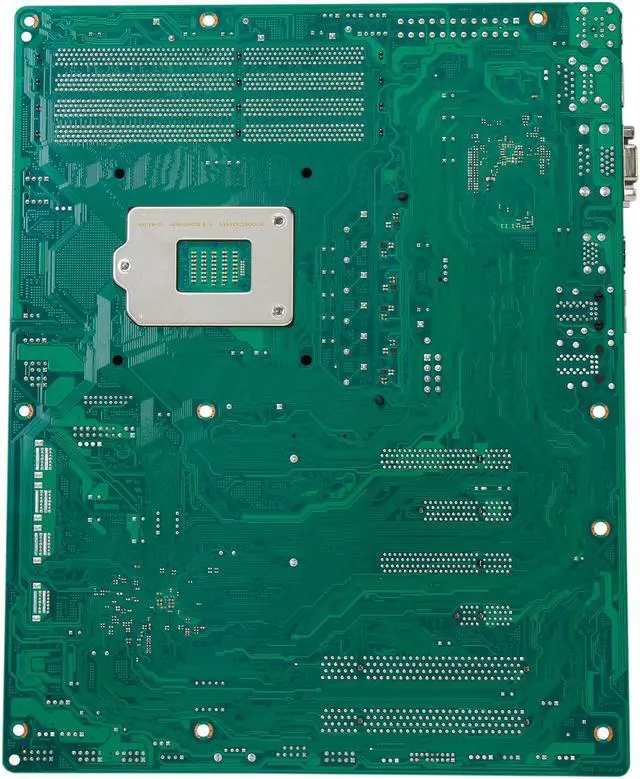

With support for Intel Xeon E3-1200 v3 series processors & Haswell i3 processors, massive amount of DDR3 ECC memory, multiple PCI-E slots and SATA ports for expansion, the ASRock E3C224 ATX server motherboard is ideal for deployment in small to medium sized businesses.
MB Physical Status | |
Form Factor | ATX |
Dimensions | 12 x 9.6" (30.5 x 24.4cm) |
Processor System | |
CPU | Single socket H3 (LGA 1150) supports Intel® Xeon processor E3-1200 v3 series & Haswell i3 processors Supports Hyper-Threading Technology |
Socket | Single Socket H3 (LGA1150) |
Power Design | 6 Power Phase Design |
Chipset | Intel® C224 |
System Memory | |
Capacity | 4 x 240-pin DDR3 DIMM slots Supports up to 32GB DDR3 ECC UDIMM |
Type | Dual Channel DDR3 memory technology Supports DDR3 1600/1333 ECC DIMM |
Voltage | 1.5V, 1.35V |
Expansion Slots | |
PCIe 3.0 x 16 | 2 slots (PCIE6: x8 / PCIE4: x8 / x4) |
PCIe 2.0 x 4 | 1 slot (PCIE5: x0/x4 mode) |
PCIe 2.0 x 1 | 1 slot |
PCI | 2 slots |
Storage | |
SATA Controller | Intel® C224: 4 x SATA3 6.0Gbps, 2 x SATA2 3.0Gbps, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage |
Additional Storage Controller | Marvell SE9172: 2 x SATA3 6.0Gbps, support RAID 0, 1, NCQ, AHCI and "Hot Plug" *Marvell SE9172 RAID is supported with Windows OS only |
Ethernet | |
Interface | Gigabit LAN 10/100/1000Mbps |
LAN Controller | 2 x Intel® i210 Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE |
Management | |
BMC Controller | ASPEED AST2300: IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support |
IPMI Dedicated LAN | 1 x Realtek RTL8211E for dedicated management LAN |
Features | Watch Dog NMI |
Graphics | |
Controller | ASPEED AST2300 |
VRAM | DDR3 16MB |
Output | Supports D-Sub with max. resolution up to 1920 x 1200 @ 60Hz |
Rear Panel I/O | |
PS/2 KB/Mouse | 2 |
VGA Port | D-sub x 1 |
USB 2.0 Port | 2 |
USB 3.0 Port | 2 |
Lan Port | 2 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port LAN Ports with LED (ACT/LINK LED and SPEED LED) |
Serial Port | 1 (COM1) |
Internal Connector | |
COM Port Header | 1 (COM2) |
Front Lan LED Connector | 1 |
Auxiliary Panel Header | 1 (include chassis intrusion, location button & LED, front LAN LED) |
TPM Header | 1 |
Thermal Sensor Header | 1 |
IPMB Header | 1 |
Buzzer | 1 |
Fan Header | 6 (5 x 4-pin, 1 x 3-pin) |
ATX Power | 1 (24-pin) + 1 (8-pin) |
USB 2.0 Header | 2 (each supports two USB 2.0) |
Type A USB 2.0 Port | 1 |
USB 3.0 Header | 1 (each supports two USB 3.0) |
System BIOS | |
BIOS Type | 64Mb AMI UEFI Legal BIOS |
BIOS Features | Plug and Play (PnP) ACPI 1.1 Compliance Wake Up Events SMBIOS 2.3.1 Support DRAM Voltage Multi-adjustment ASRock Instant Flash |
Hardware Monitor | |
Temperature | CPU Temperature Sensing System Temperature Sensing |
Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
Voltage | Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
Supported Operating Systems | |
OS |
Microsoft Windows
Linux
Virtual
|
Environment | |
Temperature | Operating temperature: 50 - 95°F (10 - 35°C) / Non-operating temperature: -40 - 158°F (-40 - 70°C) |
