Question 1

I am looking to put 32GB of Unbuffered ECC ram in this but I have found none for <$400. What ram is working for you?

Accepted Answer

I am actually using this mobo with FreeNAS. 16gb of Kingston Ram ( http://m.newegg.com/Product?itemNumber=N82E16820139979 ). I have two additional slots for another pair when it becomes reasonable :)

Question 2

Has anyone successfully installed 64GB of RAM?  What are you using?  ASRock website only states Memphis memory?  No clue where to find it.

Accepted Answer

This is a response I received from ASRock.

Memphis is the only vendor that provide 16GB UDIMM that compatible with the C2750D4I board, and you can buy the 16GB UDIMM directly from us.
Here are the DIMM types and pricing for your reference:

IMM2G64D3DUD8AG-B15E
DDR3 1333
16GB
NON-ECC
1.5V
US$355

IMM2G72D3UD8AG-B15E
DDR3 1333
16GB
ECC
1.5V
US$395

IMM2G64D3LDUD8AG-15E
DDR3L 1333
16GB
NON-ECC
1.35V
US$355

IMM2G72D3LDUD8AG-15E
DDR3L 1333
16GB
ECC
1.35V
US$395

* Please kindly note that DIMM price is changing frequently, when you place the order, we will give you the most up to date quotation as standard.

We would also like to inform you that, due to Intel Atom BIOS limitation, originally there will be 2.5GB memory lose for reserve space if you apply total 64GB(4x16GB) on the board.
But with our latest BIOS(2.40), we can reduce the reserved space to 1GB if there are no PCIe add-on cards.

Question 3

just received the board. the box is not manufacturer sealed, it just doesn't have any label or sealed tape. The static bag is same way, looks like it was never sealed too, didn't find any dry/moisture  pack inside. None of the parts are missing. Is that the was this board supposed to be shipped? Or i just got an open item. People who already bought please advise, thank you

Accepted Answer

My boards box wasn't sealed, but was of interest was his the board was packet in the box. The boards has a anti static foam surround that it was zip tied to. Think of it as a square bowl with a whole in the centre of the bottom. Best board packing job I've seen from an OEM.

Question 4

Does this product work with non-ECC memory?

Accepted Answer

Yes, some.

Here is the approved memory list from the vendor at the time of writing this answer.

Memory Support List
Type	DIMM	Speed	Size	Vender	Module	Part No	Cell
DDR3	non-ECC	1600	8GB	ADATA	AD3U1600C8G11-B	3WCD-1211A-EL1248V	A-DATA
DDR3	ECC	1600	8GB	innodisk	M3C0-8GSS3LPC	K4B4G0846B	Sec
DDR3	non-ECC	1600	8GB	Kingston	KVR16N11H/8	D5128JEYBPGGBU	Kingston
DDR3	non-ECC	1600	4GB	ADATA	AD3U1600C4G11-B	3CCD-1211A-NA1226N	A-DATA
DDR3	ECC	1600	4GB	innodisk	M3C0-4GSS4LPC	K4B460846B	Sec
DDR3	non-ECC	1600	4GB	Kingmax	FLGF65F-D8KQB BAIS	KFD8FFQBF-BXX-12Z	Kingmax
DDR3	non-ECC	1600	4GB	Kingston	KVR16N11H/4	J2 108BDBG-GN-F	Elpida
DDR3	ECC	1600	4GB	Kingston	KVR1600D3E11S/4G	H5TQ2G83CFR	HYNIX
DDR3	ECC	1600	4GB	NANYA	NT4GC72B8PG0NF-DI	NT5CC256M8GM-DI	NANYA
DDR3	ECC	1333	4GB	Kingmax	FUFF65F-C8ML9 MJF	ITM77D9PFJ	MICRON
DDR3	ECC	1333	4GB	Kingston	KVR1333D3E9S/4G	H5TC2G83CFR	HYNIX
DDR3	ECC	1333	4GB	SliconPower	SP004GBLTE133V01	NT5CB256M8BM-CG	NANYA
DDR3	ECC	1333	4GB	Transcend	TS512MLK72V6N	K4B2G0846D	Sec

Question 5

Wasn't there an 8 core version of this board at one time?

Accepted Answer

It seems that Newegg may have messed up the description.  The ASRock C2750D4I does have an Octa-Core processor.  The quad core version is C2550D4I.

Question 6

Does this board support RAID 5 or does it require a separate raid controller?

Accepted Answer

Does not support RAID 5. There are three SATA controllers managing the 12 ports:

Intel: 4x6Gbps, 2x 3Gbps, no RAID
Marvell SE9230: 4x 6Gbps, RAID 1,0,10
Marvell SE9172: 2x 6Gbps, RAID 1,0

RAID isn't advisable at modern drive capacities. Look into error correcting FileSystems like ZFS or NAS appliances like Synology if you're concerned about data integrity.

Question 7

Does anyone know if this board supports registered memory?

Accepted Answer

I don't believe so.  I think it is only unbuffered ECC memory.  I have not done much research though, but I would be surprised if it did.  I know unbuffered works because that is what I am using with it.

Question 8

What operating temperatures are you getting when this board is under load?

I am getting a CPU temperature of 46C with a MB temperature of 56C.  This seems high for such a low power system.

Accepted Answer

I have mine in a Silverstone DS380 with just the fans that come with it.  Mine is idling at 40 MB and 38 CPU right now.  At 100% CPU on all eight cores I hit 46 MB and 54 CPU.  You may need to consider how much air flow you have running through your case.

Question 9

The SATA ports seem pretty close. Do you have to be careful with cable connector sizes? Any that you know will fit in adjacent ports without issue?

Accepted Answer

These are the cables that I use/d for this board.

Relper-Lineso 6 Pack 90 Degree Right-Angle SATA III Cable 6.0 Gbps With Locking Latch 18Inch (6x Sata Cable Blue)

They clipped in fairly easily, and fairly easy to disconnect as well.

Question 10

I'm new to NAS and I like to build one, but also I want to use as a HTPC and with Plex, is it a good idea to do that?

Thanks

Accepted Answer

Based on my testing with this board it works great as a Plex server for 1 or 2 transcoding streams but beyond that the CPU can't really keep up.  Great board for a general purpose NAS though!

MB Physical Status
Form Factor	Mini ITX
Dimensions	6.7 x 6.7" (17.02 x 17.02cm)
Processor System
CPU	Intel® Octa Core Avoton C2750 Processor
Socket	FCBGA1283 SOC
System Memory
Capacity	4 x 240-pin DDR3 DIMM slots Support up to 64GB DDR3 ECC and UDIMM
Type	Dual Channel DDR3 memory technology Supports DDR3 1600/1333 ECC and UDIMM
Voltage	1.5V, 1.35V
Expansion Slots
PCIe 2.0 x 8	1 slot (x8 mode)
Storage
SATA Controller	Intel® C2750: 2 x SATA3 6.0Gbps, 4 x SATA2 3.0Gbps
Additional Storage Controller	Marvell SE9172: 2 x SATA3 6.0Gbps Marvell SE9230: 4 x SATA3 6.0Gbps
Ethernet
Interface	Gigabit LAN 10/100/1000Mbps
LAN Controller	2 x Intel® i210 Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE
Management
BMC Controller	ASPEED AST2300: IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support
IPMI Dedicated LAN	1 x Realtek RTL8211E for dedicated management LAN
Features	Watch Dog NMI
Graphics
Controller	ASPEED AST2300
VRAM	DDR3 16MB
Output	Supports D-Sub with max. resolution up to 1920 x 1200 @ 60Hz
Rear Panel I/O
VGA Port	D-sub x 1
USB 2.0 Port	2
Lan Port	2 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port	1 (COM1)
UID Button/UID LED	1
Internal Connector
Auxiliary Panel Header	1 (include chassis intrusion, location button & LED, front LAN LED)
IPMB Header	1
Fan Header	6 x 4-pin
ATX Power	1 (24-pin)
USB 2.0 Header	1 (support 1 via headers or 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
Front Panel	1
System BIOS
BIOS Type	64Mb AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP) ACPI 1.1 Compliance Wake Up Events SMBIOS 2.3.1 Support DRAM Voltage Multi-adjustment ASRock Instant Flash
Hardware Monitor
Temperature	CPU Temperature Sensing Motherboard Temperature Sensing
Fan	CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control
Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, +1.1V,+1.0V, +BAT, 3VSB, 5VSB
Support OS
OS	Microsoft Windows Server 2008 R2 (x64) Server 2012 (x64) Linux RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) CentOS 5.5 / 6.4 (x32 and x64) SUSE Enterprise Linux Server 11 SP1 (x32 and x64) FreeBSD 9.1 (x32/x64) Fedora core 18 (x64) UBuntu 12.04/12.10 (x64) Virtual VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare)
Environment
Temperature	Operating temperature: 41 - 95°F (10 - 35°C) / Non-operating temperature: -40 - 158°F (-40 - 70°C)

Brand	AsRock Rack
Model	C2750D4I

CPU Socket Type	FCBGA1283
CPU Type	Intel Octa Core Avoton C2750 Processor

Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3 1600 / 1333
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

SATA	4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
Additional SATA	Marvell SE9172: 2 x SATA3 6.0Gb/s Marvell SE9230: 4 x SATA3 6.0Gb/s

AsRock Rack C2750D4I Mini ITX Server Motherboard FCBGA1283 DDR3 1600 / 1333

ASRock C2750D4I Mini ITX Server Motherboard

Highlights

Specifications

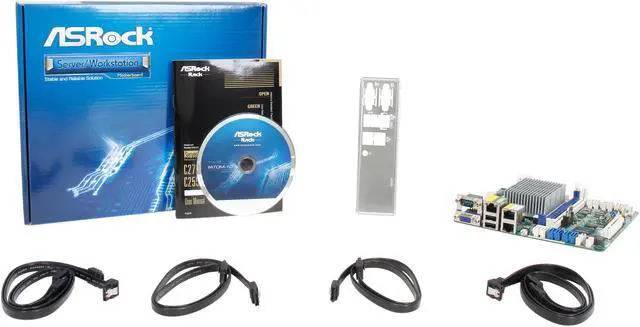

WHAT'S IN THE BOX
