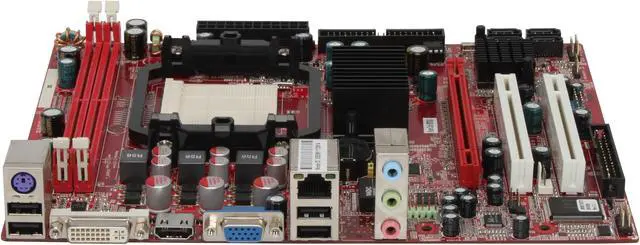

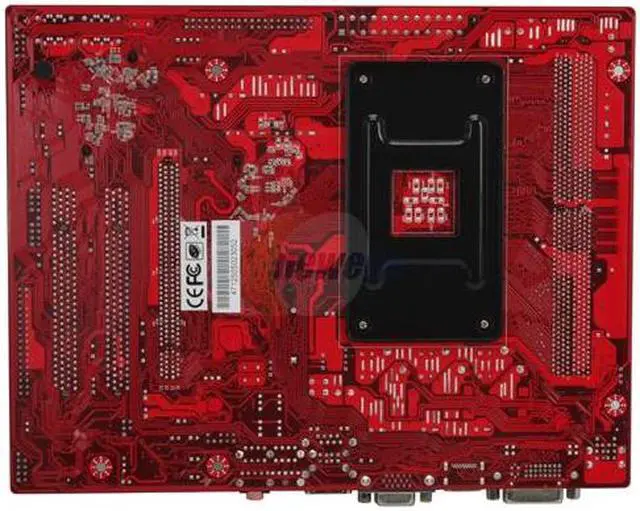

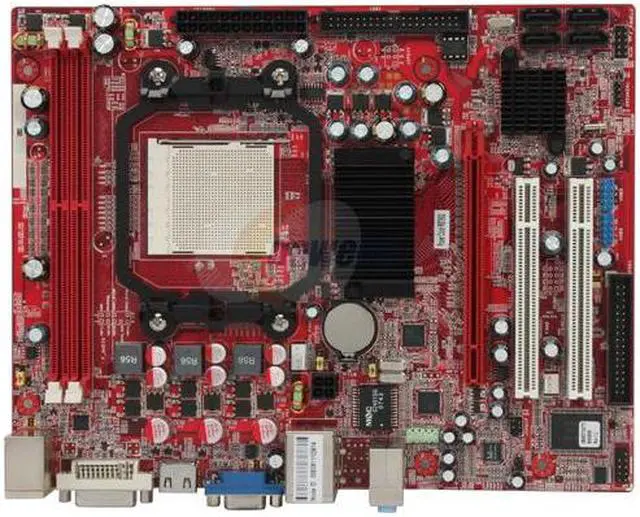

POWERCOLOR RS780G AM2+/AM2 AMD 780G HDMI Micro ATX AMD Motherboard
- AMD 780G
- Phenom / Athlon 64 X2 / Athlon 64 / Sempron
- DDR2 1066
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the PowerColor RS780G
| Brand | POWERCOLOR |
|---|---|
| Model | RS780G |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom / Athlon 64 X2 / Athlon 64 / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 780G |
|---|---|
| South Bridge | AMD SB700 |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1 |
| Onboard Video Chipset | ATI Radeon HD 3200 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 headers for additional 4 USB 2.0 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Power Pin | 24 Pin |

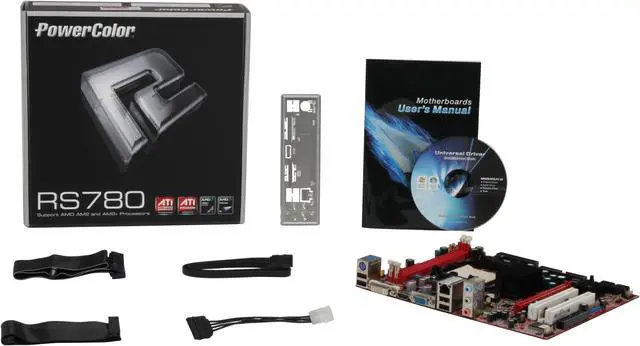

| Package Contents | RS780G Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | November 18, 2008 |
|---|
