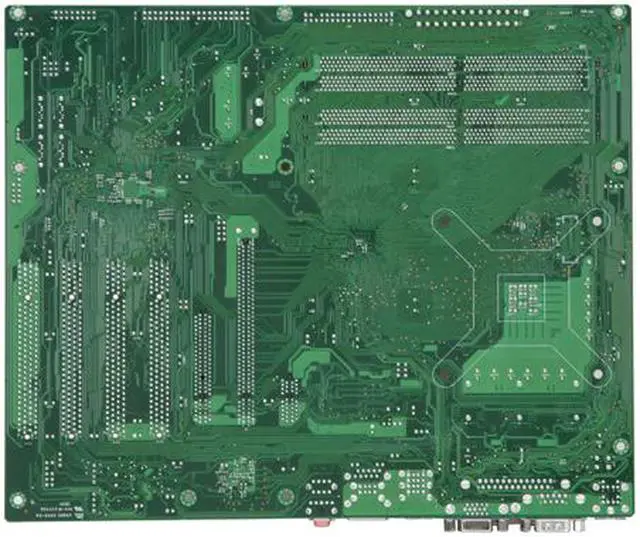

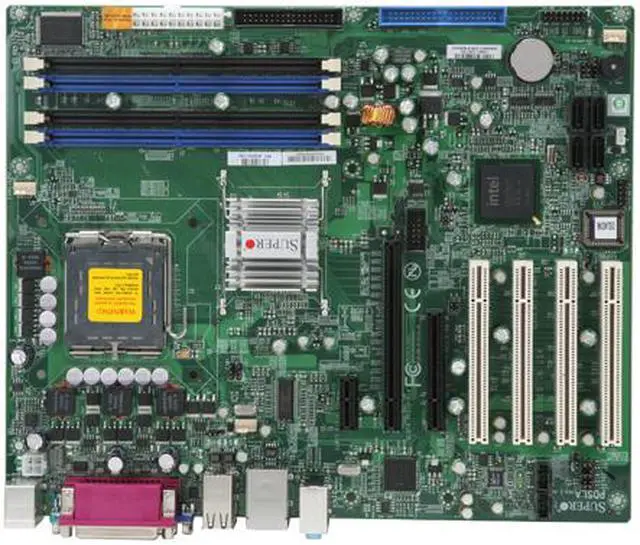

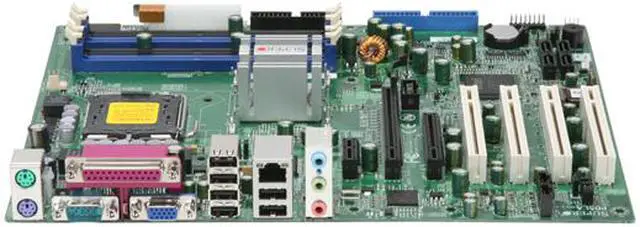

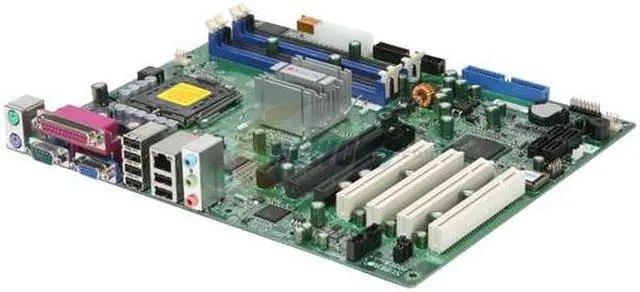

SUPERMICRO PDSLA LGA 775 Intel 945G ATX Intel Pentium 4/Pentium 4 EE/Pentium D/Celeron D Server Motherboard
- LGA 775
- Intel 945G
- 4 x 240Pin
Specs
Reviews
Learn more about the Supermicro PDSLA
| Brand | SUPERMICRO |
|---|---|
| Model | PDSLA |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Supports an Intel Pentium D (Dual Core) processor Supports an Intel Pentium 4 Extreme Edition processor Supports an Intel Pentium 4 processor Supports an Intel Celeron D processor with 256KB L2 Cache Will not support E5300 or E2000 series processors |
| System Bus | 1066/800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| North Bridge | Intel 945G |
|---|---|
| South Bridge | Intel ICH7 |
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 (x1) PCI-e slots, (one using x8 slot) |
| PCI Slots | 4 x PCI Slots |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| Onboard Video Chipset | On-chip integrated gfx graphics core |
|---|
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Intel 82573V |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2x headers |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 11.5" x 9.5" |

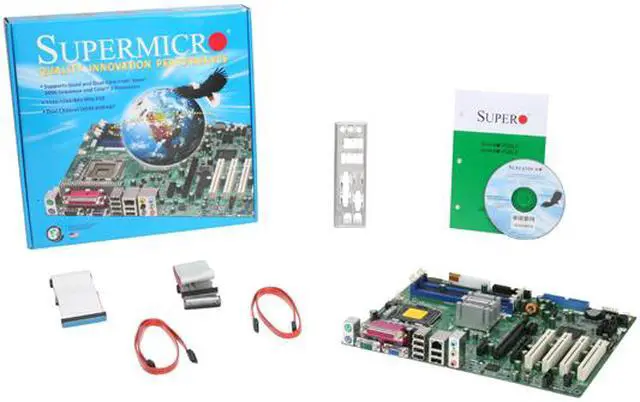

| Package Contents | PDSLA User Manual Software Disk Rear I/O Panel Shield IDE Cable FDD Cable 2 x SATA Cable |
|---|
| Date First Available | July 26, 2005 |
|---|
