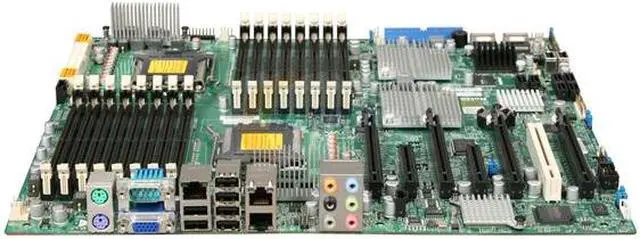

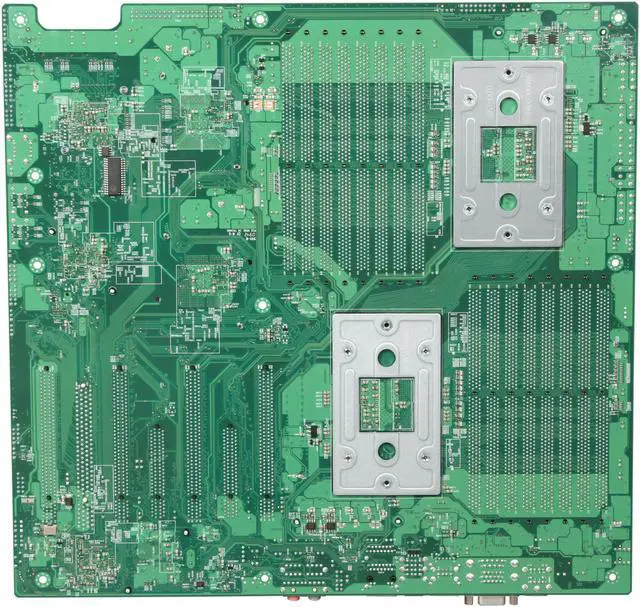

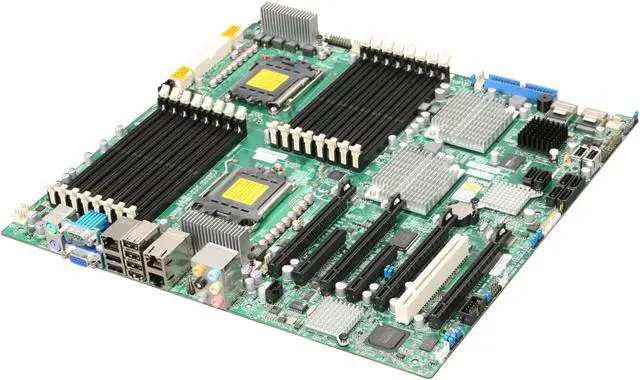

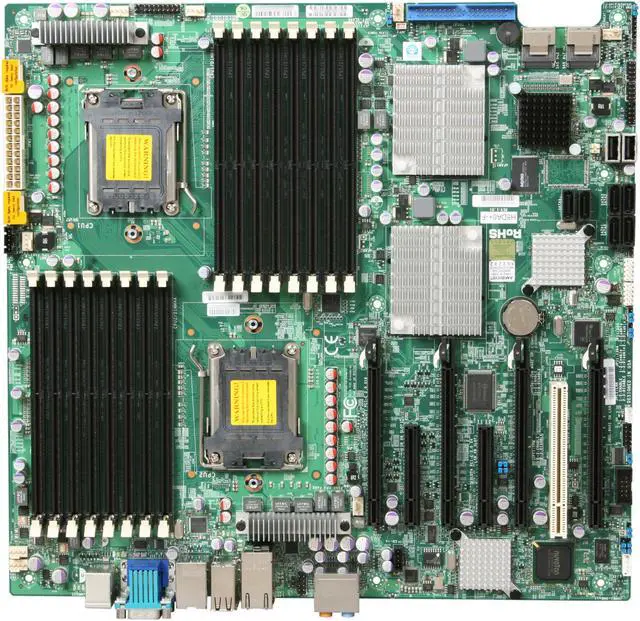

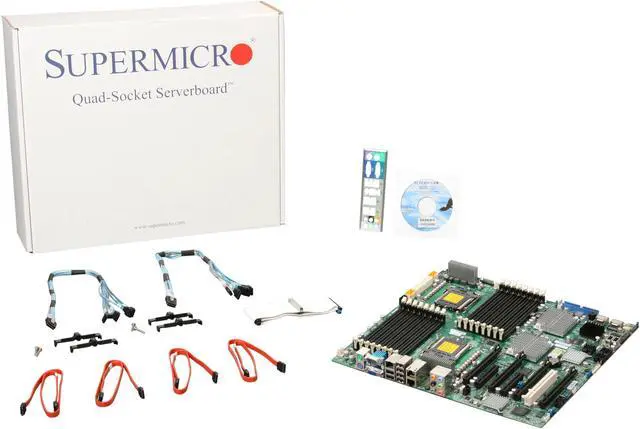

SUPERMICRO MBD-H8DA6+-F-O Dual 1207(F) AMD SR5690 Extended ATX Dual 6-Core / Quad-Core AMD Opteron 2000 Series Server Motherboard

  • Dual 1207(F)
  • Dual AMD SR5690
  • 16 x 240Pin
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Supermicro MBD-H8DA6+-F-O

Model
Brand SUPERMICRO
Model MBD-H8DA6+-F-O
Supported CPU
CPU Socket Type Dual 1207(F)
CPU Type Dual 6-Core / Quad-Core AMD Opteron 2000 Series
(Opteron 237x, 238x, 239x, and 24xx supported)
Chipsets
North Bridge Dual AMD SR5690
Memory
Number of DDR2 Slots 16 x 240Pin
DDR2 Standard DDR2 800
Maximum Memory Supported 128GB
Channel Supported Dual Channel
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express 2.0 x16 4
PCI Express x4 2x PCI-e 2.0 x4 (in x8 slot)
PCI Slots 1 x PCI Slot
Storage Devices
PATA 1 x ATA 133 2 Dev. Max
SATA 6 x SATA 3.0Gb/s
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Matrox G200eW
Onboard Audio
Audio Chipset Realtek ALC888
Onboard LAN
LAN Chipset Intel 82576
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82576
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 6 x USB 2.0
Audio Ports 6 Ports
Features
Features LSI 2008 8 port SAS2 controller
RAID 0, 1, 10; RAID 5 Optional

IPMI 2.0 with Dedicated LAN support
Dimensions
Form Factor Extended ATX
Dimensions (W x L) 13.68" x 13.05"
Additional Information
First Listed on Newegg December 30, 2009
