I put in the motherboard. I tried to boot computer. Failed. It starts I get a instant flash of blue screen before it goes into repair. I enter a windows 7 disk, boot from the disk...exact problem. I'm not sure if te motherboard is bad or not. What are the steps for me to enable this to work?

This motherboard is loaded with industrial level features at the BIOS level. For example, running a VOIP Asterisk server I ran into a problem with audio recording that I finally solved by turning off all the unique timing references in the BIOS. I suggest you turn off everything in BIOS first, and if you successfully boot, then turn them on, one-by-one, to determine the conflict.

Which processors support the graphics? In other words, which processors are required to make the VGA and HDMI ports work? Thanks

The SuperMicro X9SAE-V has an LGA 1155 socket and Intel C216 chipset. This supports the embedded graphics on variants of the Intel Sandy Bridge and Ivy Bridge architectures - these include some of the Intel i3, i5, and i7 processors and some of the Intel Xeon E3 processors. This board supports ECC memory with the Xeon processors. Look at the wikipedia charts for Sandy Bridge and Ivy Bridge; The tables will show a GPU clock rate for the variants with on-board GPU. The newegg storefront has options to filter the CPUs listed to Intel LGA 1155 with integrated graphics.

I needed to know if I have to get a power supply with both 8 pin power connector and a 4 pin connector or is that just an option to use either 8 pin or 4 pin?

There are 3 power ports on this board 24, 8, and 4. The 24 is the main power the 8 is the EPS 12v and the 4 is an aux. The 4 aux is optional the other 2 are required. This is not one of those boards that can go either way on the EPS 12v 8 pin connection. The board will have problems if the full 8 pin is not used.

This item is categorized under Server motherboards but described in the heading as Desktop. Which is it?

It is a Server or Work Station motherboard. It's a great board but also note that you must have a stand alone graphics card as it does not have integrated graphics. One really nice feature of the board is the USB3.0 front header connection which is rare on Server motherboards. I have used this board on several server builds with great success.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

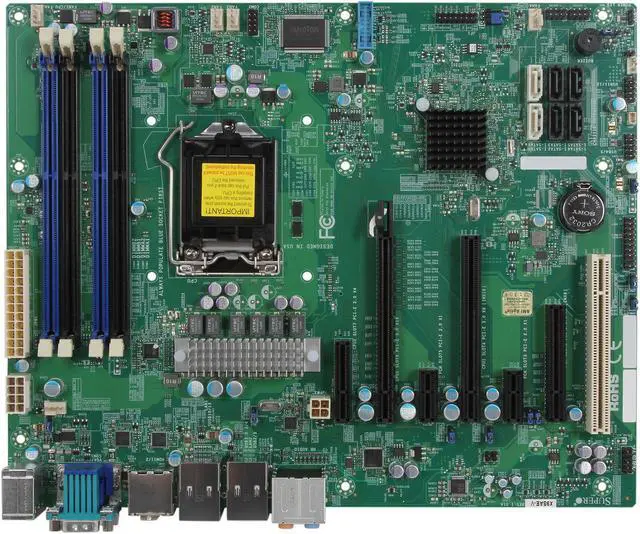

Main image of Supermicro X9SAE-V Desktop Motherboard - Intel C216 Chipset - Socket H2 LGA-1155 - Retail Pack

100%

Alt view image 2 of 5 - Supermicro X9SAE-V Desktop Motherboard - Intel C216 Chipset - Socket H2 LGA-1155 - Retail Pack

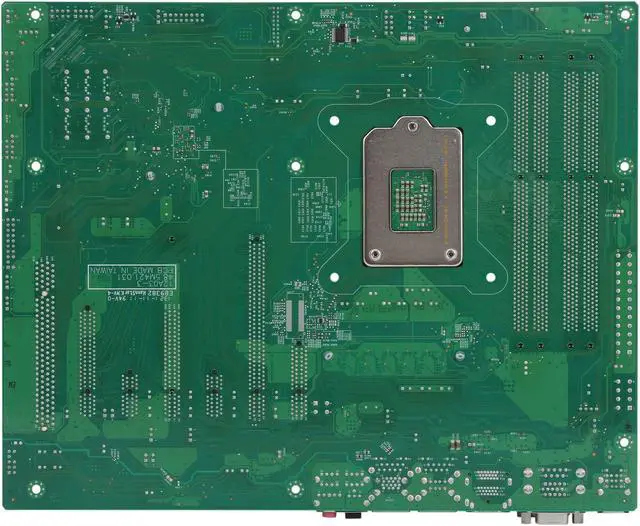

Alt view image 3 of 5 - Supermicro X9SAE-V Desktop Motherboard - Intel C216 Chipset - Socket H2 LGA-1155 - Retail Pack

Alt view image 4 of 5 - Supermicro X9SAE-V Desktop Motherboard - Intel C216 Chipset - Socket H2 LGA-1155 - Retail Pack

Alt view image 5 of 5 - Supermicro X9SAE-V Desktop Motherboard - Intel C216 Chipset - Socket H2 LGA-1155 - Retail Pack

360^°

Shop All Supermicro Products

Supermicro X9SAE-V Desktop Motherboard - Intel C216 Chipset - Socket H2 LGA-1155 - Retail Pack

(24) Write a Review

LGA 1155
Intel C216
4 x 240pin

Overview

Specs

Reviews (24)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Supermicro X9SAE-V Desktop Motherboard

Features

Single socket H2 (LGA 1155) supports Intel® Xeon® E3-1200 v2 series, Core i7/i5/i3 (non-ECC UDIMMs only), Pentium® & Celeron® processors
Intel® C216 Express PCH chipset
Up to 32GB DDR3 ECC 1600/1333MHz ECC/non-ECC UDIMMs in 4 sockets
Expansion slots: 1 PCI-32 bit, 2 (x4) PCI-E 2.0, 2 (x1) PCI-E 2.0, and 2 (x8) PCI-E 3.0 in x16
Intel® 82574L + 82579LM GbE LAN
2 SATA3 (6Gb/s), 4 SATA2 (3Gb/s)
1 VGA, 2 HDMI, & 7.1 HD Audio ports
8 USB 2.0 ports (4 rear, 4 via header) & 4 USB 3.0 ports (2 rear, 2 via header)
vPro 8.0, AMT 8.0 support

Specifications

Product SKUs
Motherboard	X9SAE-V (Bulk Pack)
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6", (30.48cm x 24.38cm)
Processor/Cache
CPU	Intel® Xeon® E3-1200 v2 series, Core i7/i5/i3 (non-ECC UDIMMs only), Pentium® & Celeron® processors Socket H2 (LGA 1155) A Graphic Integrated CPU is required to have the on-board video functioned. For example: E3-1245, E3-1275*
System Memory
Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC and non-ECC UDIMM
Memory Type	1600/1333MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel C216 Express PCH chipset
SATA	4x SATA2 (3Gb/s) w/ RAID 0, 1, 5, 10 2x SATA3 (6Gb/s) w/ RAID 0, 1
Network Controllers	Dual LAN via Intel® 82579LM + 82574L Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC888S 7.1 High Definition Audio with S/PDIF header
TPM	TPM header
Expansion Slots
PCI-Express	2x PCI-E 3.0 x8 in x16 slot 2x PCI-E 2.0 x4 (1 in x8) 2x PCI-E 2.0 x1 & 1x PCI-32bit 5V slots
Input / Output
SATA	2 SATA 3.0 ports (6Gb/s) 4 SATA 2.0 ports (3Gb/s)
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 3.0 ports total (2 rear, 2 via header) 8 USB 2.0 ports total (4 rear, 4 via header)
Audio	7.1 HD Audio ports with optical S/PDIF
Video*	1 VGA and 2 HDMI ports (Dual Display)
Serial Port / Header	2x serial ports (1 rear, 1 header)
DOM	1x DOM (Disk on Module) power connector
System BIOS
BIOS Type	128Mb SPI Flash with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI RTC (Real Time Clock) Wakeup
PC Health Monitoring
Voltage	Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	Total of five 4-pin fan headers supporting up to 5 fans w/ tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED
Other Features	Chassis intrusion detection Chassis intrusion header RoHS, Halogen Free
Chassis ( Optimized for X9SAE-V )
Tower	SC733 and SC732 series
Management
Software	SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery

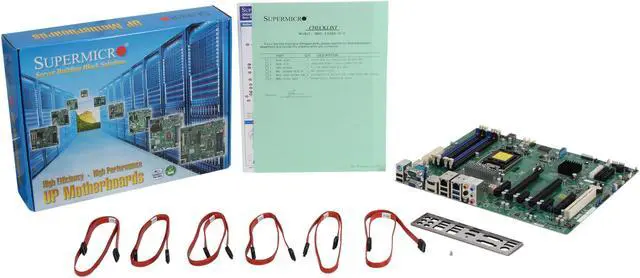

What's in the Box

Major Benefits from Supermicro's in-house Design Superiority

Supermicro motherboard advantages:

Technologically-advanced Motherboard Designs Since 1993

Consistent highest-quality Design, Components, and Production Expertise

Extensive Range of x86 Serverboards Available

Competitive Price/Performance

High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware

Standard Form Factors offer Feature - rich Support and application optimization

These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.

Model
Brand	SUPERMICRO
Model	MBD-X9SAE-V-O

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Intel Xeon E3-1200 v2 series, Core i7/i5/i3 (non-ECC UDIMMs only), Pentium & Celeron processors

Chipsets
North Bridge	Intel C216

Memory
Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3 1600/1333
Maximum Memory Supported	32GB
ECC Supported	Yes

Expansion Slots
PCI Express 3.0 x16	2x PCI-E 3.0 x8 in x16 slot
PCI Express x4	2x PCI-E 2.0 x4 (1 in x8)
PCI Express x1	2 x PCI Express x1
PCI Slots	1x PCI-32bit 5V slots

Storage Devices
SATA	4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID	4x SATA2 (3Gbps) w/ RAID 0, 1, 5, 10 2x SATA3 (6Gbps) w/ RAID 0, 1

Onboard Audio
Audio Chipset	Realtek ALC889
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel 82579
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel 82574L
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
PS/2	1
COM	1
Video Ports	VGA+HDMI
USB 1.1/2.0	4 x USB 2.0
USB 3.0	2 x USB 3.0

Onboard Ports
Onboard USB	USB 3.0: 2 via header USB 2.0: 4 via header

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
