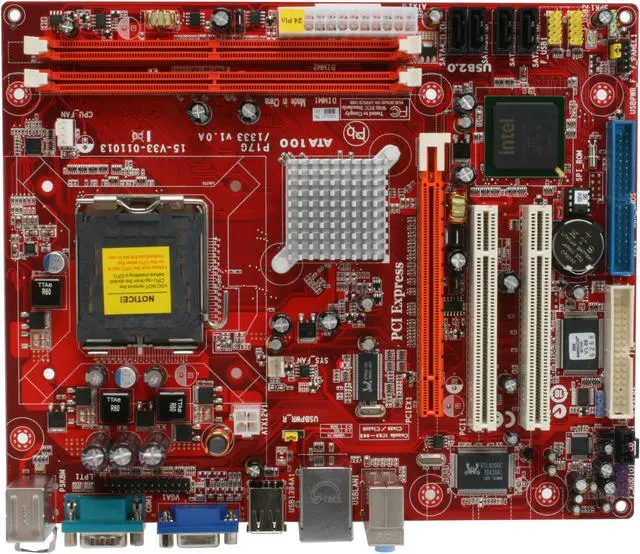

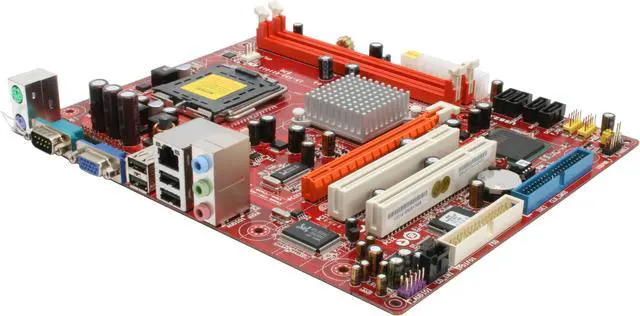

PC CHIPS P17G/1333 LGA 775 Intel 945GC Micro ATX Intel Motherboard
- Intel 945GC
- Core 2 Duo / Pentium D / Celeron D
- DDR2 667
Specs
Reviews (10)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the PCCHIPS P17G/1333
| Brand | PC CHIPS |
|---|---|
| Model | P17G/1333 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Pentium D / Celeron D |
| FSB | 1333/1066 MHz |
| Chipset | Intel 945GC |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | Intel GMA 950 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 667 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 support PCI Express x4 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | IDT 92HD202 High Definition audio Codec |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8100C |
|---|---|
| Max LAN Speed | 100Mbps |

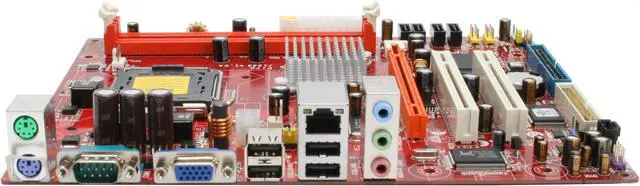

| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 header support additional 4 USB2.0 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.9" |
| Power Pin | 24 Pin |
| First Listed on Newegg | December 12, 2007 |
|---|
