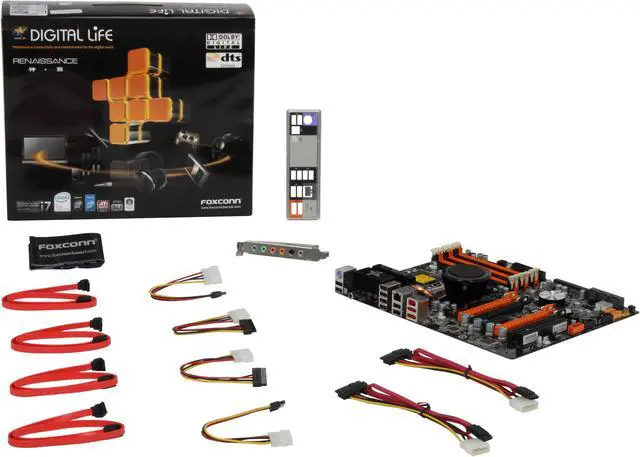

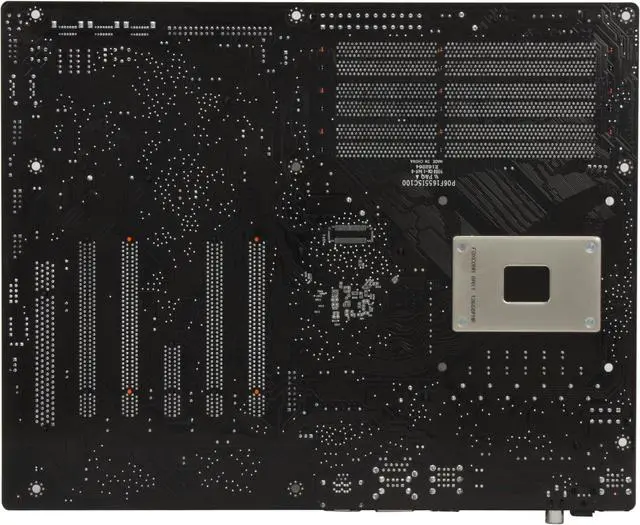

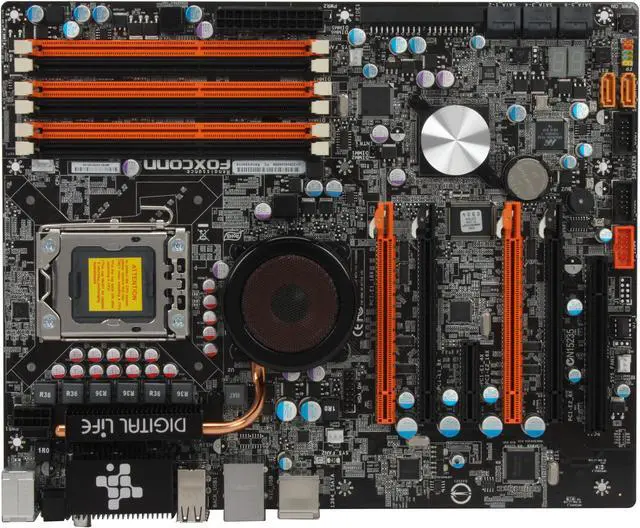

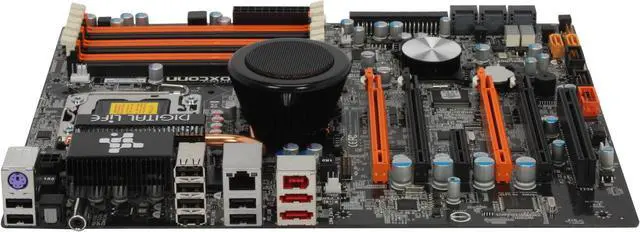

Foxconn Renaissance LGA 1366 Intel X58 ATX Intel Motherboard

(30) Write a Review
  • Intel X58
  • Core i7 (LGA1366)
  • DDR3 1600(O.C)/1333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (30)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Foxconn Renaissance

Model
Brand Foxconn
Model Renaissance
Supported CPU
CPU Socket Type LGA 1366
CPU Type Core i7 (LGA1366)
Chipsets
Chipset Intel X58
South Bridge Intel ICH10R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 6x240pin
Memory Standard DDR3 1600(O.C)/1333
Maximum Memory Supported 24GB
Channel Supported Triple Channel
Expansion Slots
PCI Express 2.0 x16 4 x PCI Express 2.0 x16
PCI Express x4 1 x PCI Express x4
PCI Slots 1 x PCI Slot
Storage Devices
SATA RAID 0/1/5/10
Additional RAID Controller Supports 2 SAS connectors
Onboard Audio
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Broadcom 5786
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 8 x USB 2.0/1.1
PS/2 1
USB 1.1/2.0 8 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 2 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 1 x Harp audio card with 6 audio jacks,CD-in and Front audio integrated
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support additional 4 ports
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Supports ATI CrossfireX & NVIDA 3-way SLI technology
FoxOne Premium technology
Supports DTS CONNECT and Dolby Digital Live certification
Additional Information
First Listed on Newegg November 19, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
