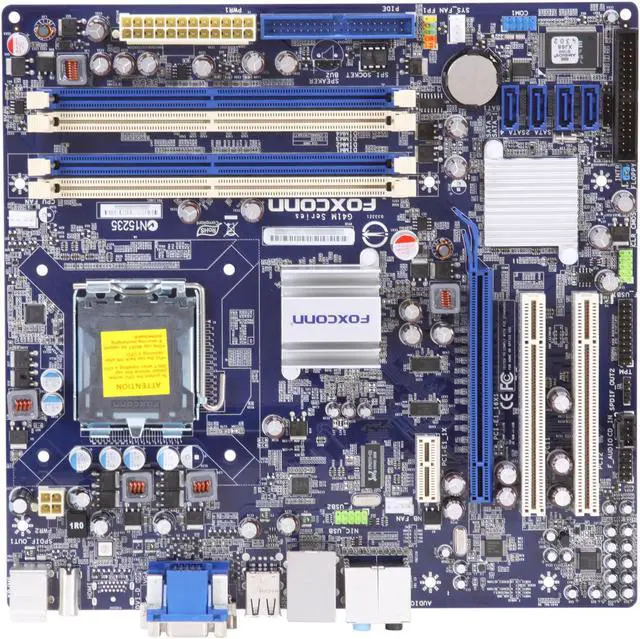

Foxconn G41M LGA 775 Intel G41 Micro ATX Intel Motherboard
- Intel G41
- Core 2 Quad / Duo / Pentium Dual-Core / Celeron
- DDR2 800/667
Specs
Reviews (16)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn G41M
| Brand | Foxconn |
|---|---|
| Model | G41M |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Duo / Pentium Dual-Core / Celeron |
| FSB | 1333/1066/800MHz |
| Chipset | Intel G41 |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | Intel GMA X4500 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800/667 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 connectors support additional 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.2" |
| Power Pin | 24 Pin |
| First Listed on Newegg | November 09, 2009 |
|---|
